Name: Shelly Shelly Qubino Wave PRO 1PM DIN rail mount relay Z-Wave
Brand: Shelly
SKU: 3066261
Availability: SoldOut

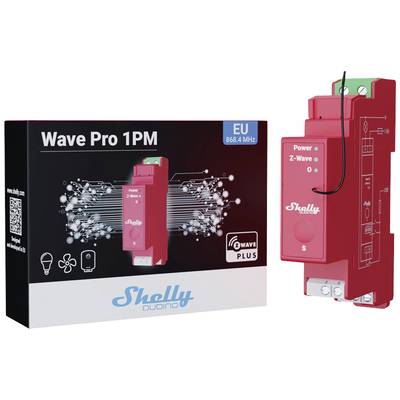

The image depicts the Shelly Wave Pro 1PM, a red smart home module with packaging. It is compatible with Z-Wave Plus and designed for EU 868.4 MHz.

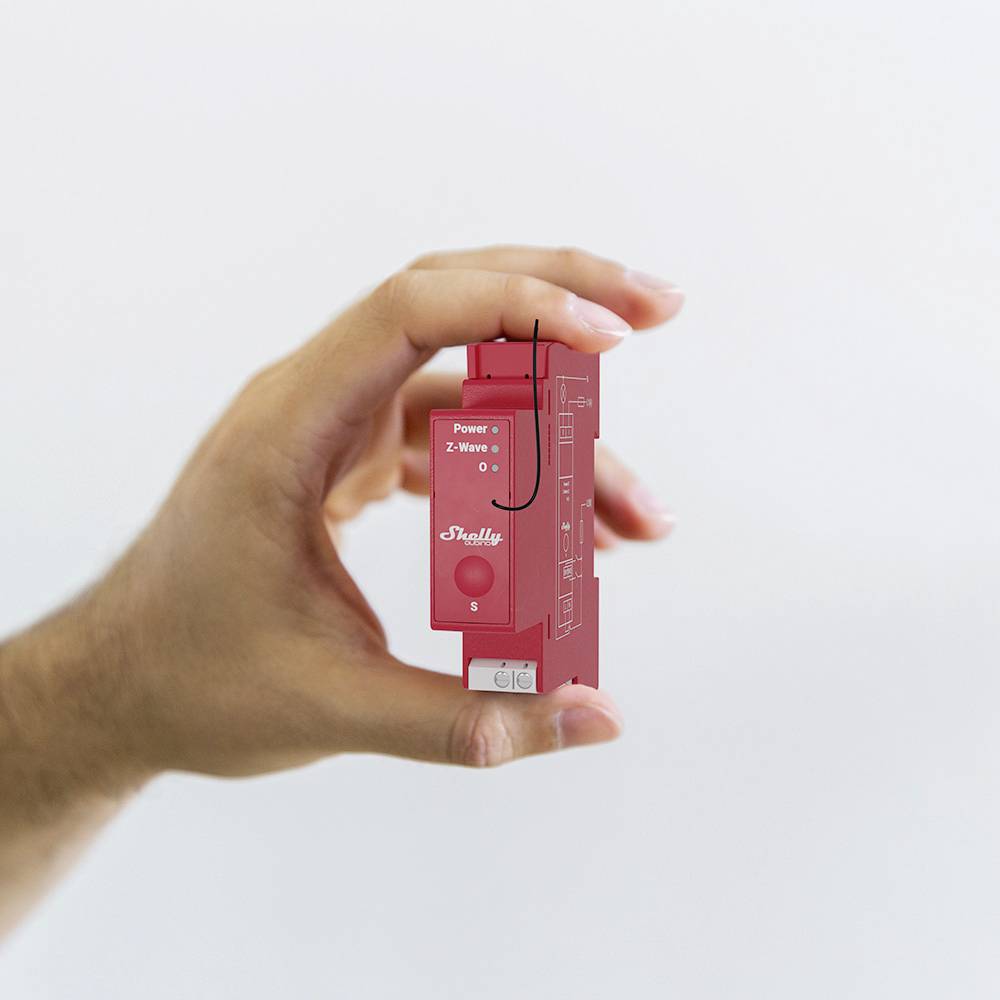

A hand is holding a small, red device with the inscription 'Shelly'. It is an electrical component, likely a smart home switch.

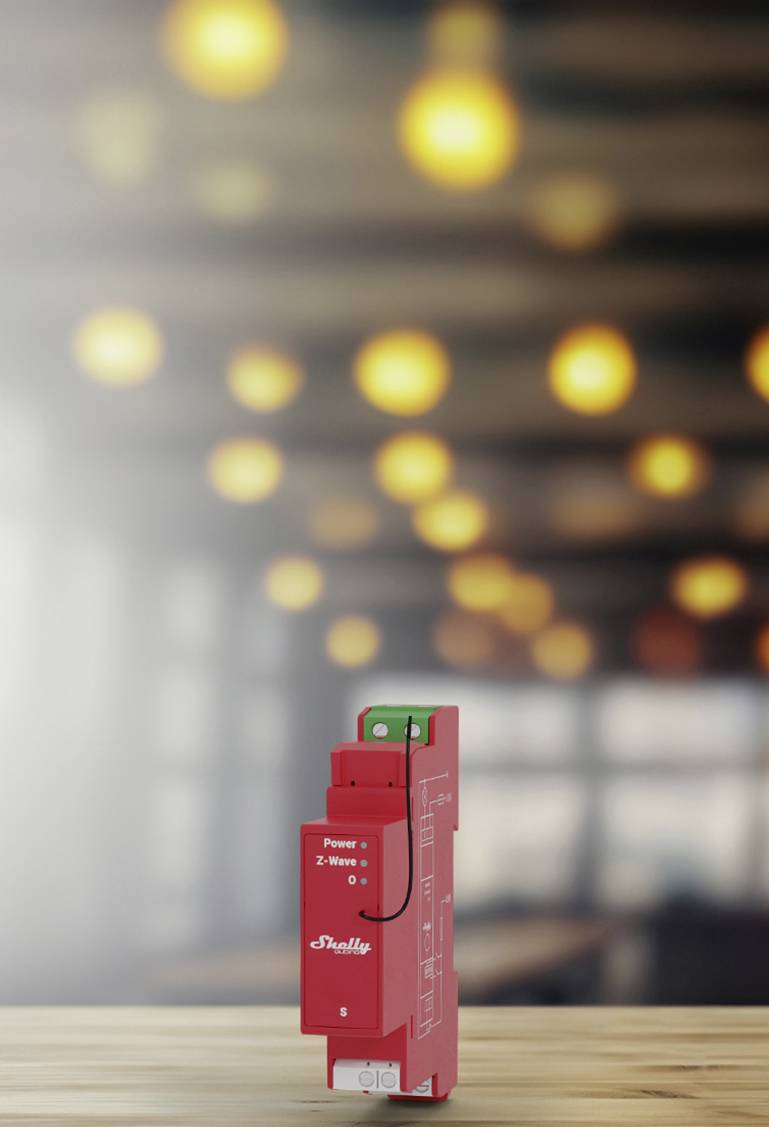

A red smart home device sits in front of a blurred background with yellow light. It displays 'Power' and 'Z-Wave'.

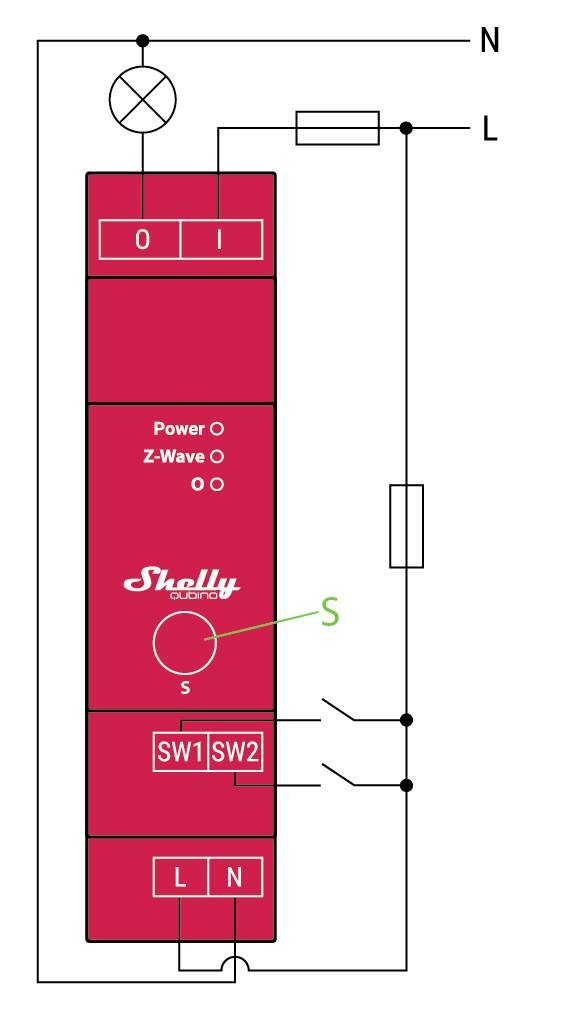

'Circuit diagram of a red device with "Shelly" label. On/Off switch at the top, below connections SW1, SW2, and L/N. Z-Wave and power LEDs.'

1/5

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 83.99 / piece)

€ 83.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Shelly relay max. 16 A 1 phase 1 x 16 A measuring function Z-Wave

868.4 MHz (CEPT countries) Z wave frequency band
Suitable for home and building automation with remote control
Can be mounted on a DIN rail in the fuse box
Improved security features

Technical specifications

Indoor range: Up to 40 m.
CPU Z-WAVE™ S800
Max. 16 A 1 phase 1 x 16 A

Product type: DIN rail mount relay

: Alexa
Google Home

Transfer Standard (Smart Home): Z-Wave

Used at: Indoors

Power supply (LOV): mains-powered

Operating voltage: 100 V
240 V

Data transfer (Smart Home): Wireless

Frequency: 868.4 MHz

Mounting type: DIN rail

Factory colour: Red

Width: 19 mm

Height: 94 mm

Depth: 69 mm

Weight: 61 g

: n.rel.

Dim: (W x H x D) 19 x 94 x 69 mm

Hub: Not required

Features: Test function

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3066261 Shelly Shelly Qubino Wave PRO 1PM DIN rail mount relay Z-Wave

Description

The device is a smart switch with power measurement that can be mounted on a DIN-rail. It controls the on/off function for an electrical device with a load of up to 16 A. It is compatible with switches (standard) and buttons.
The device can be mounted on a DIN rail in the power box.

This text is machine translated.
