Name: Shelly Shelly Qubino Wave PRO 2 DIN rail mount relay Z-Wave
Brand: Shelly
SKU: 3066262
Availability: BackOrder

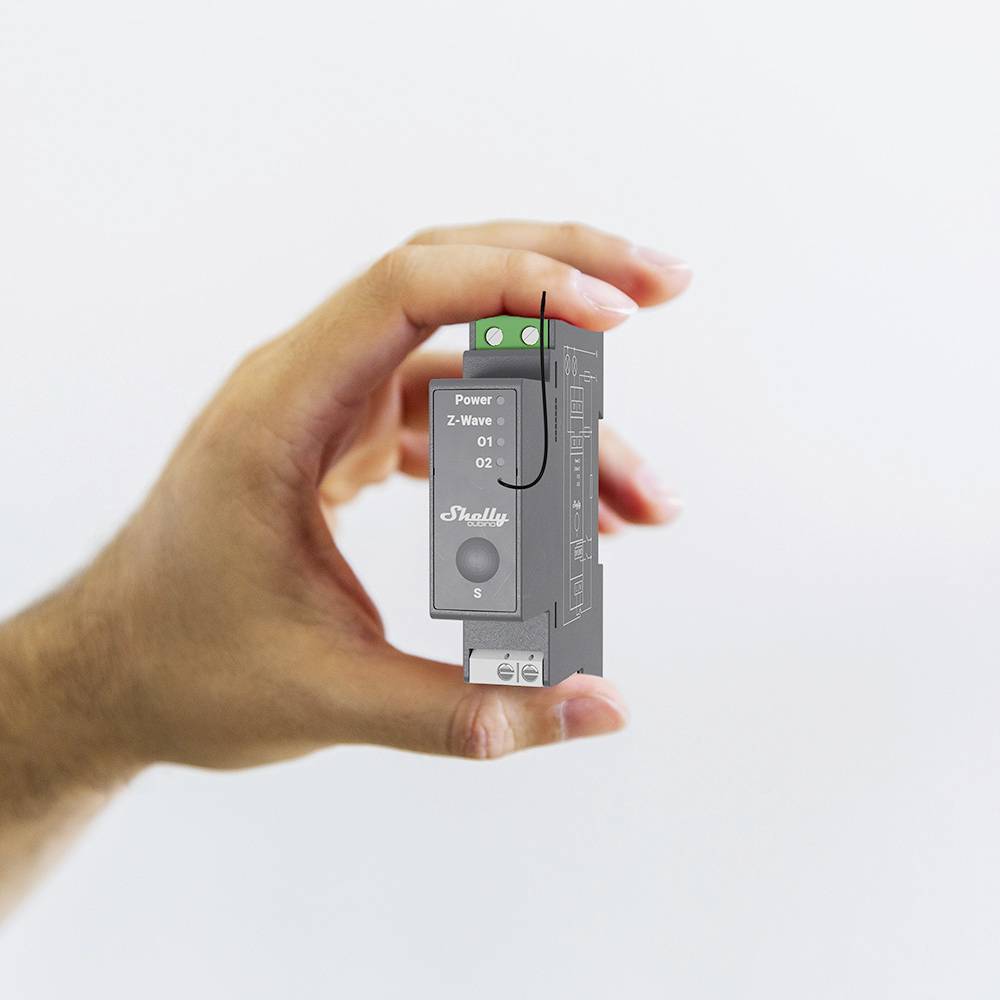

A hand is holding a small rectangular electronic device with the inscription 'Froggy F'. Two LED displays are visible at the top.

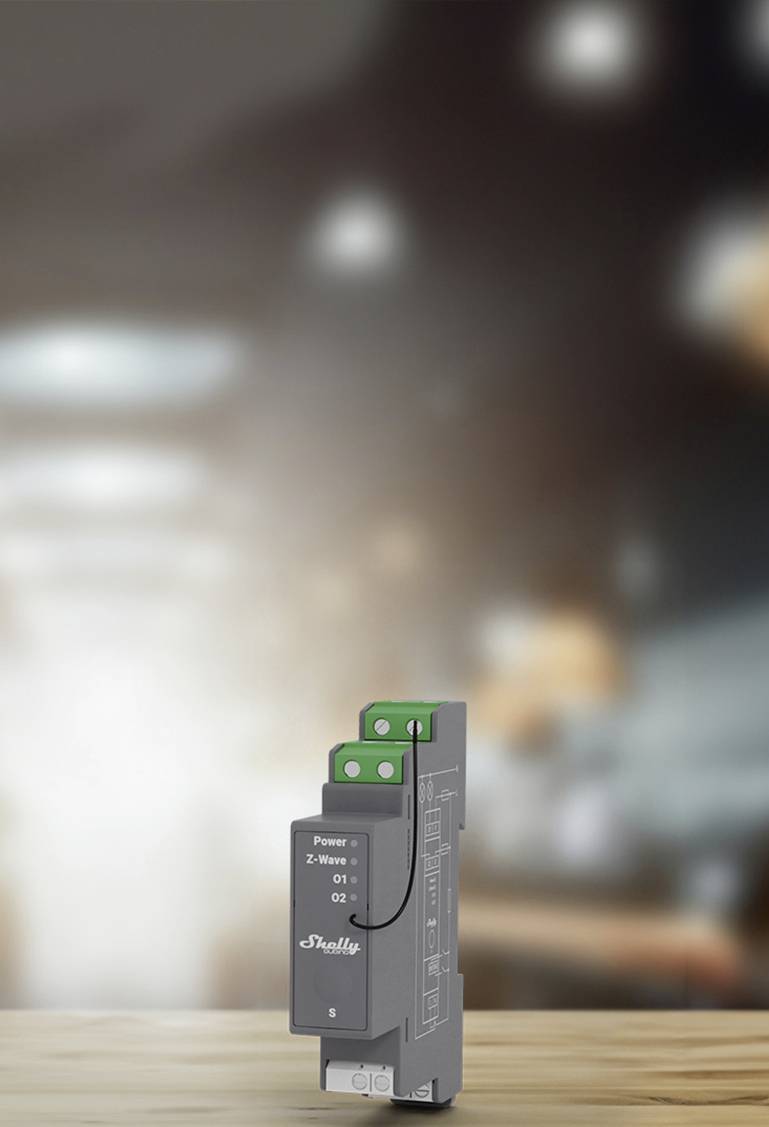

A grey Shelly relay device against a blurred background. Suitable for home automation and energy monitoring.

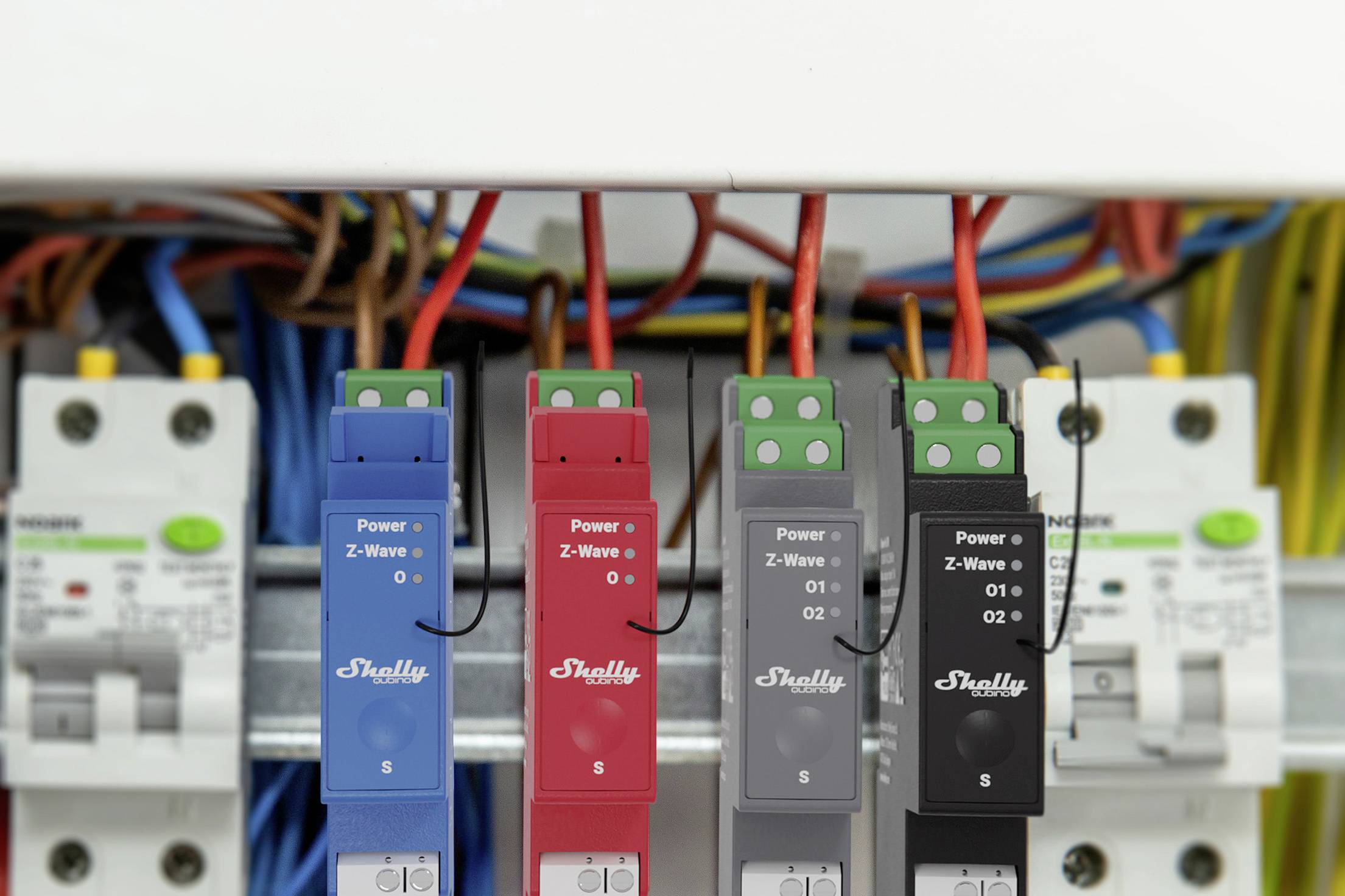

A series of electronic switches and cables in a control cabinet shows blue, red, and black coded modules with labels.

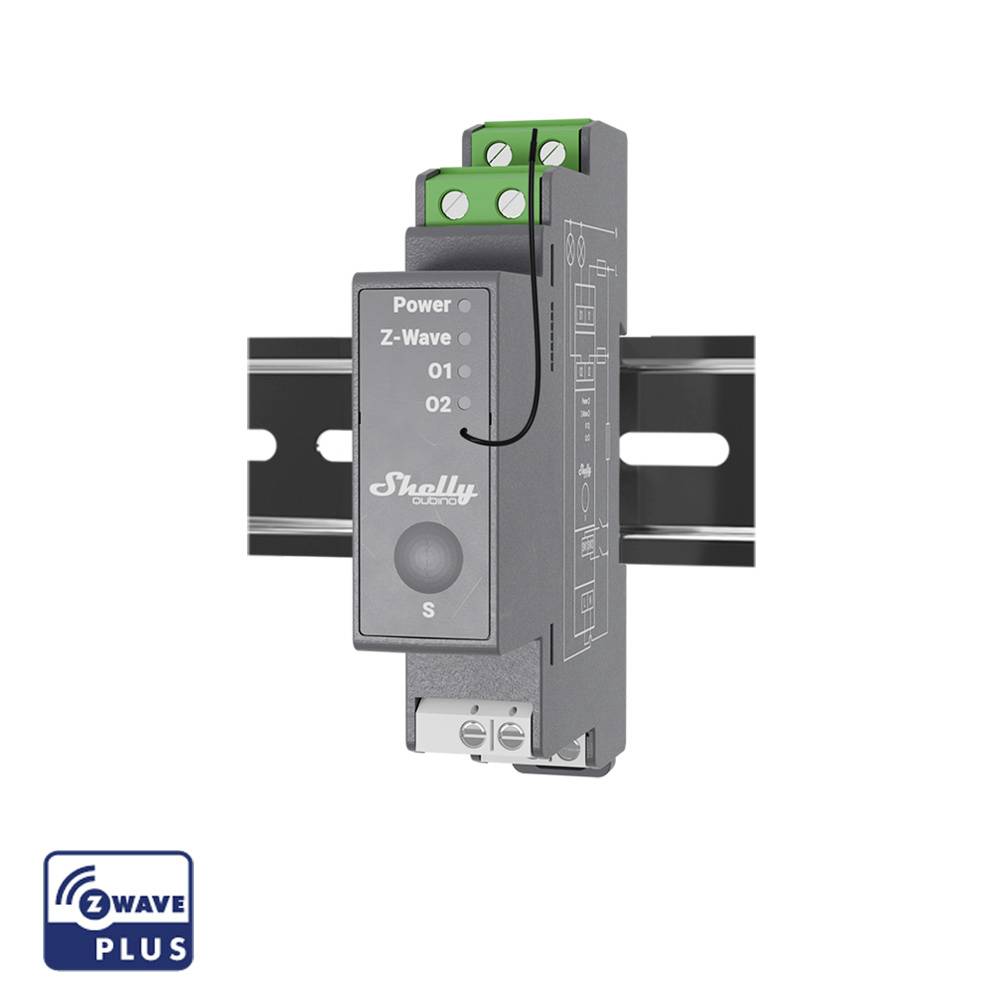

Z-Wave Plus Din Rail Switching Relay Module, with Power Connection Terminals and Two Circuit Outputs.

1/5

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Shelly relay max. 25 A 2-phase 2 x 16 A Z-Wave

868.4 MHz (CEPT countries) Z wave frequency band
Suitable for home and building automation with remote control
Can be mounted on a DIN rail in the fuse box
Improved security features

Technical specifications

Indoor range: Up to 40 m.
CPU Z-WAVE™ S800
Max. 25 A 2 phases 2 x 16 A

Product type: DIN rail mount relay

: Alexa
Google Home

Transfer Standard (Smart Home): Z-Wave

Used at: Indoors

Power supply (LOV): mains-powered

Operating voltage: 100 V
240 V

Data transfer (Smart Home): Wireless

Channels: 2

Frequency: 868.4 MHz

Mounting type: DIN rail

Factory colour: Grey

Width: 19 mm

Height: 94 mm

Depth: 69 mm

Weight: 73 g

: n.rel.

Dim: (W x H x D) 19 x 94 x 69 mm

Hub: Not required

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3066262 Shelly Shelly Qubino Wave PRO 2 DIN rail mount relay Z-Wave

Description

The device is a 2-channel smart switch with potential-free contacts that can be mounted on a DIN rail. It controls the on/off function for two independent electrical devices with a load of up to 16 A per channel (25 A total). It is compatible with switches (standard) and buttons.
The device can be mounted on a DIN rail in the power box.
