Name: Shelly Shelly Qubino Wave Shutter Blinds actuator Z-Wave, Z-Wave+
Brand: Shelly
SKU: 2924224
Availability: BackOrder

Electronic device with six ports, black casing with white lettering; circuit diagram and 'Shelly' marking visible on top.

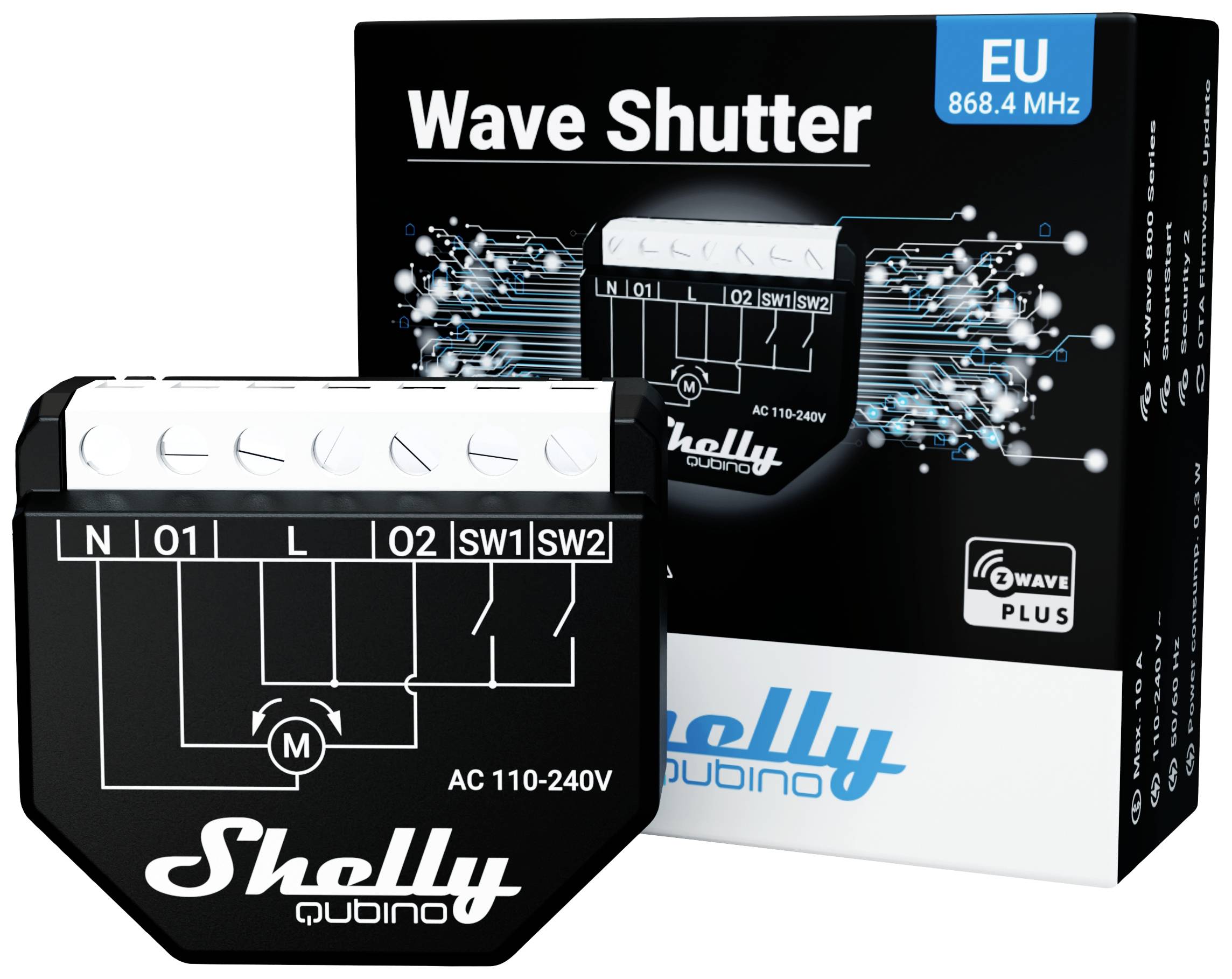

A black Shelly Qubino Wave Shutter device with a connection diagram is shown in front of its packaging, which displays technical details.

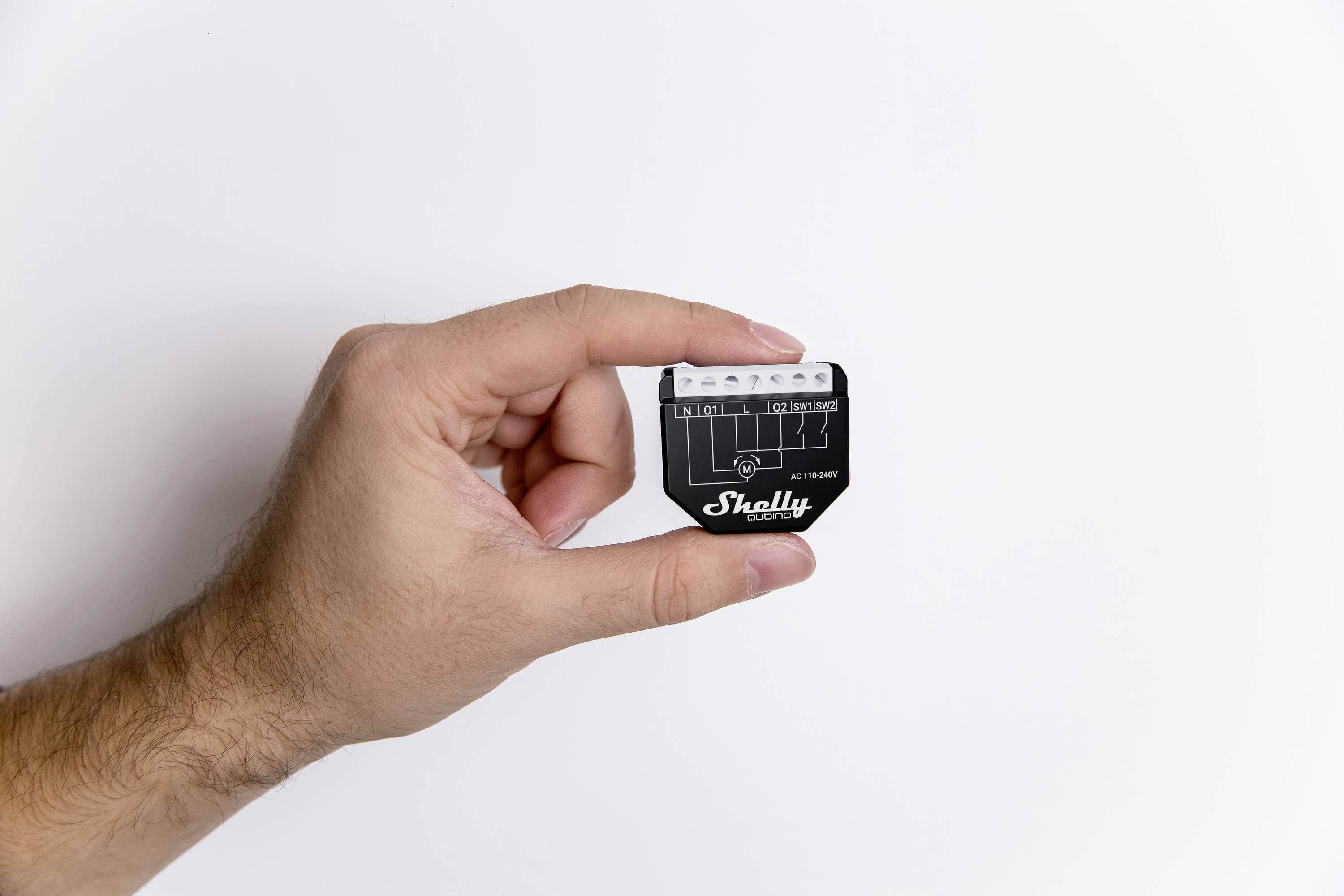

A hand is holding a small, black electronic device with the label 'Shelly'. The device has several ports on the top.

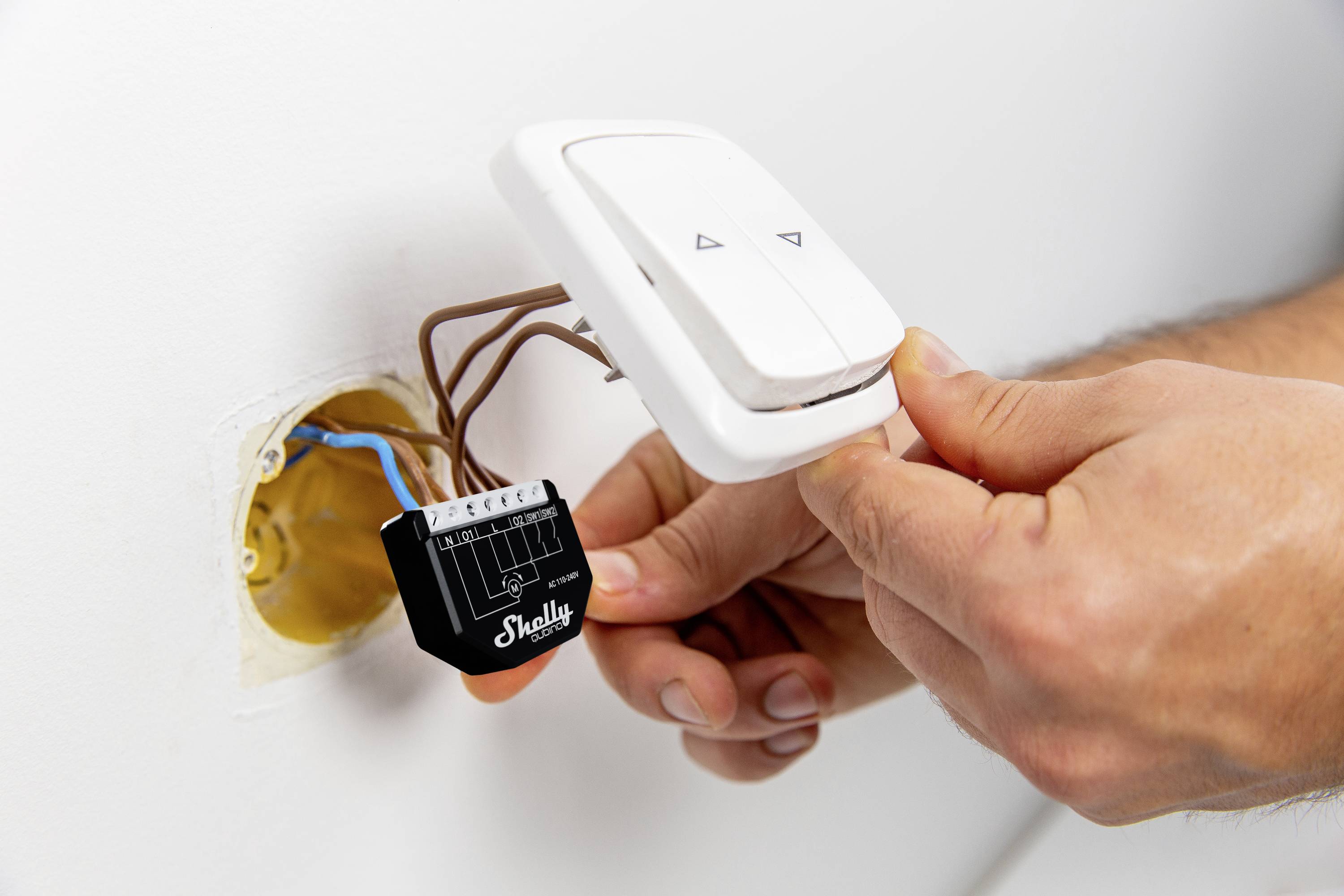

A hand is manually installing a smart switch with a Shelly module into a wall socket. Cable connections are visible.

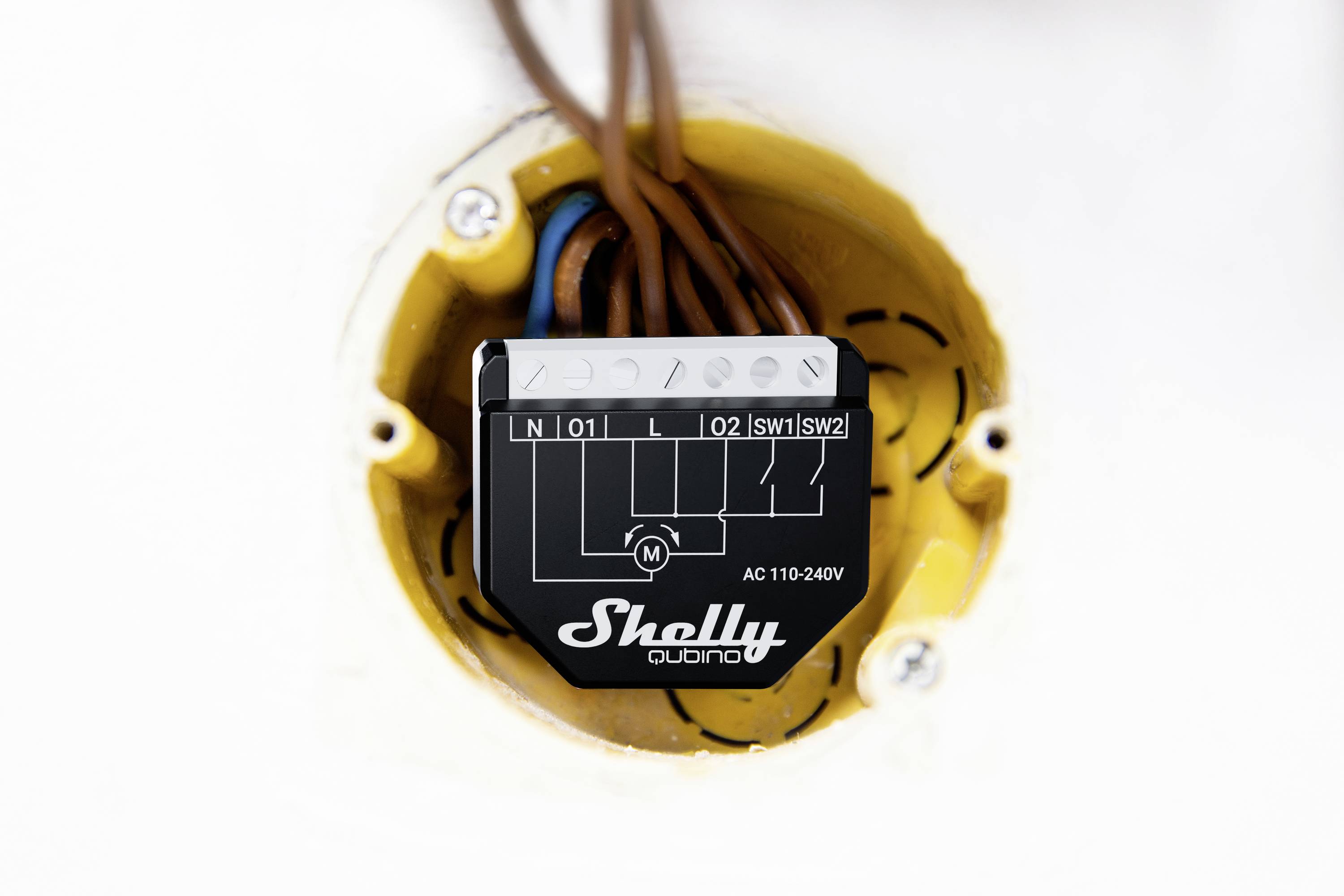

A black Shelly switch actuator in an open wall socket with connected cables. Suitable for 110-240V alternating current.

1/5

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 38.99 / piece)

€ 38.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Shelly relay Dual roller shutter Z-wave

Control of the inclination position of the shutter blades
Supports button/current selector switch and toggle switch
Measures the power consumption of the connected device (blinds, shutters, etc.)

Technical specifications

Max. Switching voltage AC 240 V
Max. Switching current AC 10 A per channel

Product type: Blinds actuator

: Alexa
Google Home

Transfer Standard (Smart Home): Z-Wave
Z-Wave+

Used at: Indoors

Power supply (LOV): mains-powered

Operating voltage: 230 V

Data transfer (Smart Home): Wireless

Frequency: 868.4 MHz

Factory colour: Black

Width: 42 mm

Height: 37 mm

Depth: 16 mm

Weight: 29 g

: n.rel.

Dim: (W x H x D) 42 x 37 x 16 mm

Hub: Required

Features: Test function

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2924224 Shelly Shelly Qubino Wave Shutter Blinds actuator Z-Wave, Z-Wave+

User & Safety Instructions

User & Safety Instructions 2924224 Shelly Shelly Qubino Wave Shutter Blinds actuator Z-Wave, Z-Wave+

Description

Z-Wave™ shutter control with power measurement
Wave Shutter enables the remote control of motorized blinds, shutters, blinds, windows, awnings or other devices that are driven by a bi-directional AC motor. It supports the control of the tilt position of the louvers of blinds. You can use your smartphone or tablet to control schedules and scenes, with the option of manual operation via a wall switch.
For motors with mechanical or electronic limit switches, exact positioning is supported.

This text is machine translated.

Features

Small size ensures simplest installation behind wall switches
Extended wireless range - up to 40 m indoors
SmartStart for automatic setup
OTA Firmware Update for Over-the-Air Updates
Security Vault™ ensures maximum security with features such as secure booting, secure key management, secure debugging, and more
S2 security authenticated
Extremely low power consumption: Less than 0.3 W.
Works with Z-Wave certified gateways (hubs) and over 4000 Z-Wave devices.

System requirements

Z-Wave enabled gateway
