Name: Siemens 3NA7807 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 20 A 500 V AC
Brand: Siemens
SKU: 2262443
Availability: InStock

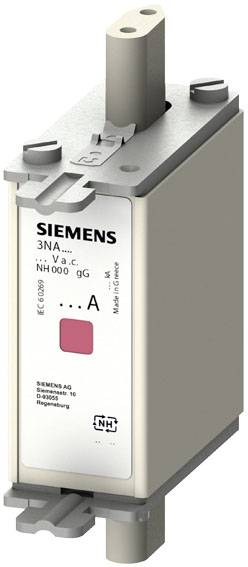

A Siemens NH fuse with the designation 3NA, rated at 500 V AC, for industrial applications.

Image similar

Product type

Fuse holder inset

Fuse size

000

Nominal current - rounded value

20 A

Type

With blade contacts

RoHS-compliant

Yes

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

8 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 3 pc(s))

Set(s)

Total (€ 4.33 / piece)

€ 12.99

incl. VAT

Only 8 Set(s) available

14-day return policy included

Report legal concerns

Technical specifications

Design of the indicator: Combination indicator
Design of the switching contact: Corrosion-free, silver-plated
Fastening method: Live grip lugs
Installation position: Any, preferably vertical
Protection class IP: IP20, with connected conductors
Ambient temperature / during operation / minimum: -5 °C.
Ambient temperature / during operation / maximum 40 °C.
Power loss / maximum 2.53 W.
Order of priority of size: 10

Type: With blade contacts

Product type: Fuse holder inset

Fuse size: 000

RoHS-compliant: Yes

Content: 3 pc(s)

Nominal current: 20 A

Nominal current - rounded value: 20 A

Model: with blown fuse indicator

Duty class: gG

Nominal voltage: 500 V AC
250 V DC

Suitable for: Fuse size 000 - 4

Width: 21 mm

: AC/DC

: 20 A

: 500 V

: 120 A

: gL/gG (cable protection/equipment protection)

: Combination fuse status indicator

: 500

: 250

: 2.53

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Fuse size

Siemens 3NA7807 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 20 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262443

Fast track dispatch on Tue 27 Oct

8 Set(s)Conrad Electronic

This article

20 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Siemens 3NA3120 Fuse holder inset Fuse size = 1 50 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262427

Fast track dispatch on Tue 27 Oct

3 Set(s)Conrad Electronic

50 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Siemens 3NA3142 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 1 224 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262428

Fast track dispatch on Tue 27 Oct

1 Set(s)Conrad Electronic

224 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Siemens 3NA3801 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 6 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262430

Fast track dispatch on Tue 27 Oct

6 Set(s)Conrad Electronic

6 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

Siemens 3NA6804 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 4 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262432

Fast track dispatch on Tue 27 Oct

6 Set(s)Conrad Electronic

4 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Siemens 3NA68144 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 35 A 400 V AC 3 pc(s)

Item no:2262433

Fast track dispatch on Tue 27 Oct

2 Set(s)Conrad Electronic

35 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 17.99^*

Siemens 3NA68304 Fuse holder inset Suitable for Fuse size 000 - 4 Fuse size = 000 100 A 400 V AC 3 pc(s)

Item no:2262436

Dispatches on Fri 30 Oct

Conrad Electronic

100 A

000

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 18.99^*

Siemens 3NA68307 Fuse holder inset Suitable for Fuse size 000 - 4 Fuse size = 00 100 A 500 V AC, 250 V DC 3 pc(s)

Item no:2262438

Dispatches on Fri 30 Oct

Conrad Electronic

100 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

Siemens 3NA7224 Fuse holder inset Fuse size = 2 80 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262439

Fast track dispatch on Tue 27 Oct

1 Set(s)Conrad Electronic

80 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 33.99^*

Siemens 3NA7240 Fuse holder inset with blown fuse indicator Fuse size = 2 200 A 500 V AC, 440 V DC 3 pc(s)

Item no:2262440

Fast track dispatch on Tue 27 Oct

2 Set(s)Conrad Electronic

200 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 36.99^*

Documents & Downloads

Datasheet

Datasheet 2262443 Siemens 3NA7807 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 20 A 500 V AC

User & Safety Instructions

User & Safety Instructions 2262443 Siemens 3NA7807 Fuse holder inset with blown fuse indicator Suitable for Fuse size 000 - 4 Fuse size = 000 20 A 500 V AC

Description

NH fuse link, NH000, in: 20 A, GG, UN AC: 500 V, UN DC: 250 V, combination indicator, live grip tabs NH fuse system 3NA, 3ND for selective line and system protection. The NH-fuse system from Siemens as an important component of the SENTRON protective components for electrical installation offers effective personal, device and plant protection through safe shutdown in the event of an overload or short-circuit. In comparison to miniature circuit breakers, higher short-circuit currents can be realized with better current limitation at the same time. The NH fuse system is characterized above all by: 1. Combination detectors signal that the fuse is switched off by a clear color change from red to white. 2. More safety when changing through insulated grip lugs. 3. High selectivity at low cost. 4. Long-term and safe operation thanks to silver-plated contact blades. 5. Fuse links from 2 A to 1250 A and in sizes 000, 00, 0, 1, 2, 3, 4 and 4a available.
