Name: Siemens 3NP11531JC22 Switch disconnector fuse 3-pin 400 A 690 V AC 1 pc(s)
Brand: Siemens
SKU: 1739139
Availability: BackOrder

A black circuit breaker with a rectangular casing for controlling or protecting electrical circuits.

Circuit diagram of an electrical circuit with multiple connections and the component 'EFM10'. Main lines are numbered.

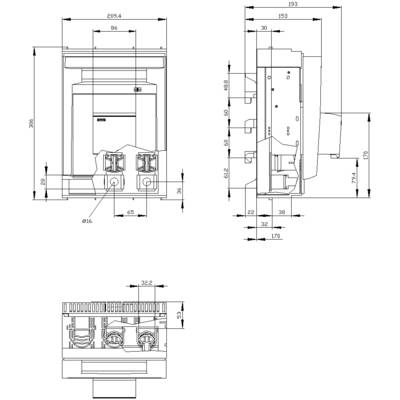

'Technical drawing of an electrical switch with dimensions. Front, side and top views are shown. Measurements in millimetres.'

1/3

Image similar

Product type

Switch disconnector fuse

Number of pins

Nominal current - rounded value

400 A

Type

Masking Level 32/70 mm

RoHS-compliant

Yes

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon, 18 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 635.00 / piece)

€ 635.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class IP20, IP30, IP40
Surge voltage resistance: 8 kV
Ambient temperature: -25 °C to +55 °C
Isolation voltage: 1000 V
Mechanical life: 1000
Mounting type: Busbar
Design of the electrical connection: frame clamp
Power loss: 144 W

Type: Masking Level 32/70 mm

Product type: Switch disconnector fuse

Number of pins: 3

RoHS-compliant: Yes

Dim: (W x H x D) 209.4 x 306 x 184.6 mm

Content: 1 pc(s)

Nominal current: 400 A

Nominal current - rounded value: 400 A

Nominal voltage: 690 V AC

Width: 209.4 mm

Height: 306 mm

Depth: 184.6 mm

: Other

: 400 A

: 3

: 80 kA

: IP40

: NH1, NH2

: FALSE

: Frame clamp

: FALSE

: Cover grip

: FALSE

: TRUE

: FALSE

: FALSE

: TRUE

: 690 V

: TRUE

: FALSE

: Front side
