Name: Siemens 3RA2110-0BD15-1AP0 3RA21100BD151AP0 Feeder terminal 690 V Nominal current 0.2 A
Brand: Siemens
SKU: 1743472
Availability: BackOrder

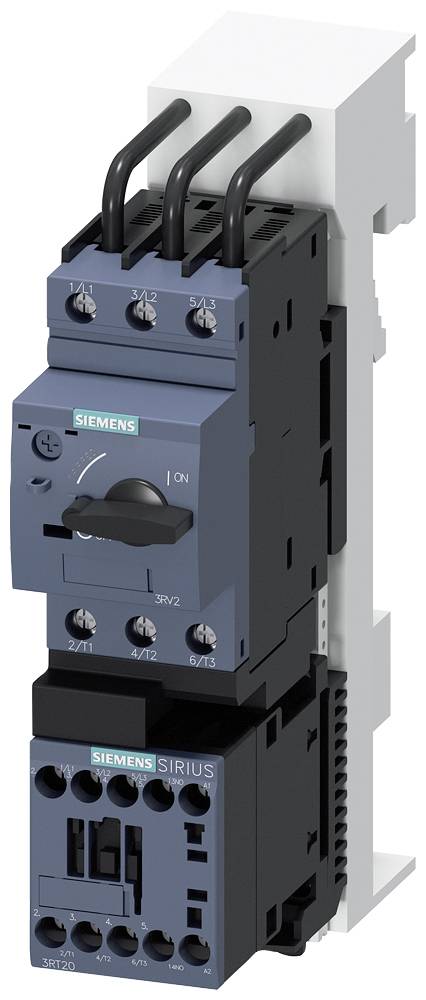

A Siemens industrial circuit breaker from the Sirius series, mounted on a white rail, with cable connections at the top.

An open electrical cabinet reveals complex wiring and electronics. Through a window, raindrops and blurred machinery can be seen.

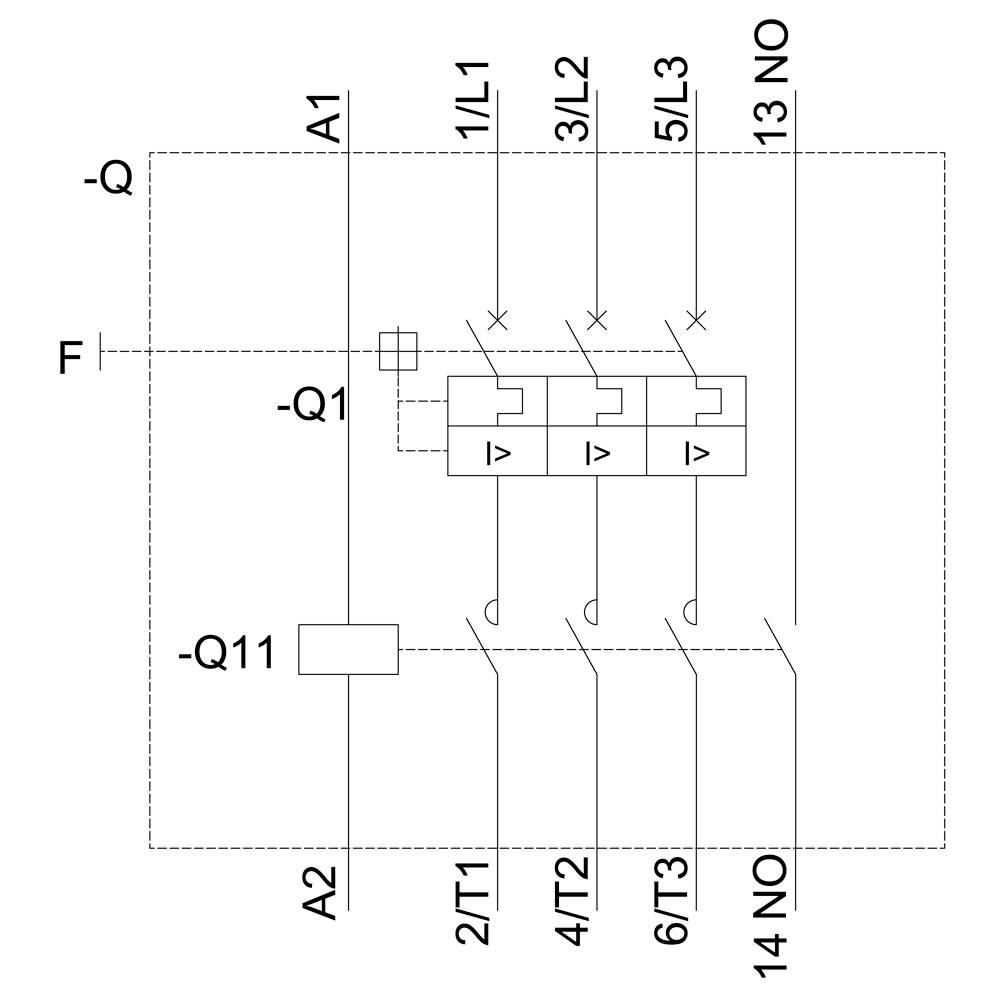

Circuit diagram of a three-phase contactor with designations: -Q, -Q1, -Q11, A1, A2, 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, 13 NO, 14 NO.

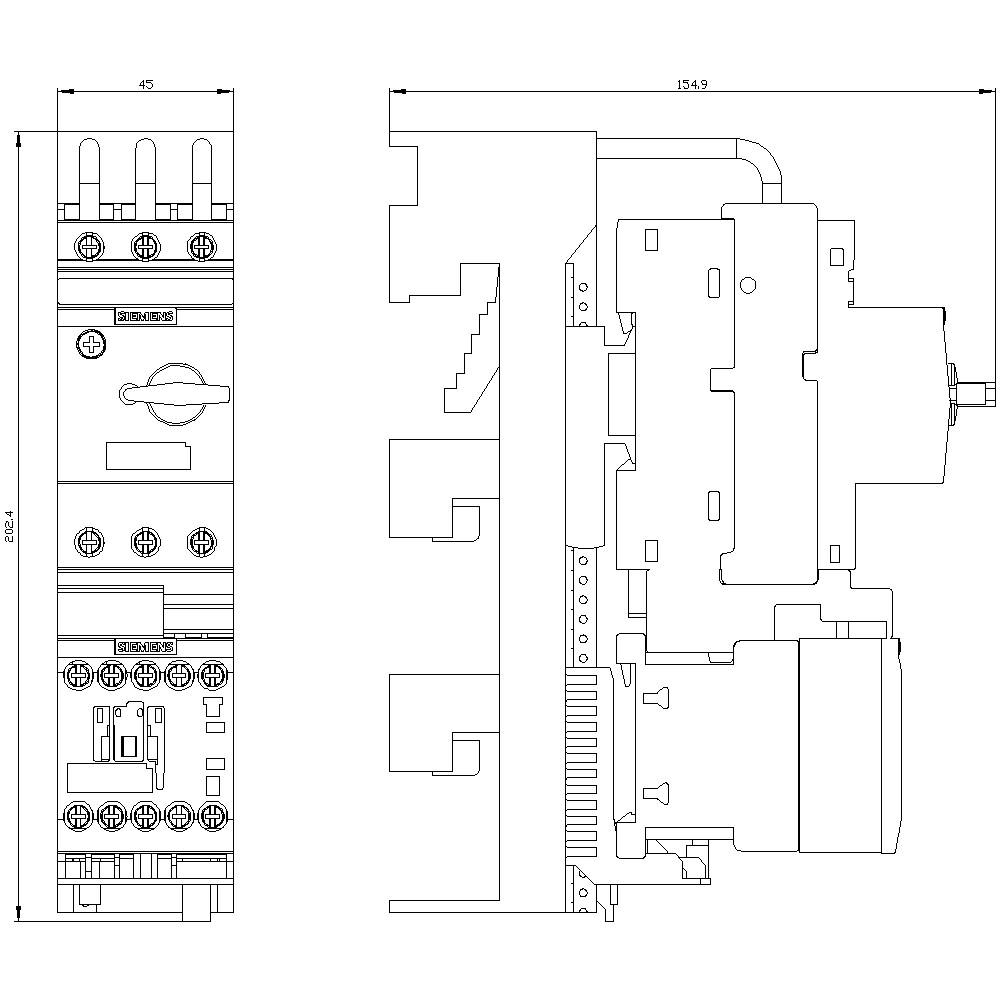

Technical drawing of an electrical switch. Shows front and side view with dimensions and switching components.

1/5

Image similar

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 234.99 / piece)

€ 234.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Mounting type: For snapping onto 60 mm busbar system
Size of the power switch: S00
Isolation voltage: 690 V
Pins for main circuit: 3

Motor voltage: 400 V AC

Product type: Feeder terminal

Supply current: 0.2 A

Nominal voltage: 690 V

Operating phases: 3

Type: Screw connector

Manufacturer part #: 3RA21100BD151AP0

Nominal current: 0.2 A

Nominal current - rounded value: 200 mA

Type: 3RA2110-0BD15-1AP0

Dim: (W x H x D) 45 x 200 x 155 mm

Width: 45 mm

Height: 200 mm

Depth: 155 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 45

: 203 mm

: 155 mm

: FALSE

: 0.06 kW

: 1

: 0.2 A

: 0

: 0.14-0.2 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: 230-230 V

: 230-230 V

: IP20

: FALSE

: FALSE

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: AC

: Other

: 0.2 A

: 60 °C

: 150000

: 150000

: 65000

: 30000

: Other

: Class 2

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Siemens 3RA2110-0BD15-1AP0 3RA21100BD151AP0 Feeder terminal 690 V Nominal current 0.2 A

Item no:1743472

Dispatches on Tue 20 Oct

Conrad Electronic

This article

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Siemens 3RA2110-0BA15-1AP0 3RA21100BA151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1743470

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

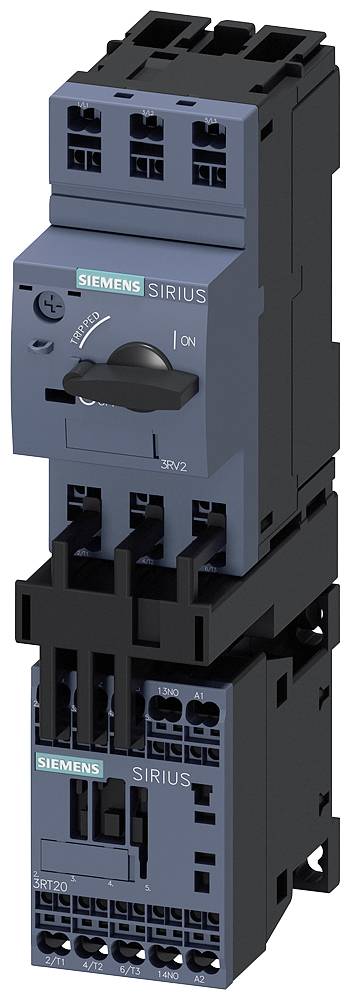

Siemens 3RA2110-0BE15-1AP0 3RA21100BE151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1743473

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3RA2110-0BH15-1AP0 3RA21100BH151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1701701

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

Siemens 3RA2110-0CA15-1AP0 3RA21100CA151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1743476

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

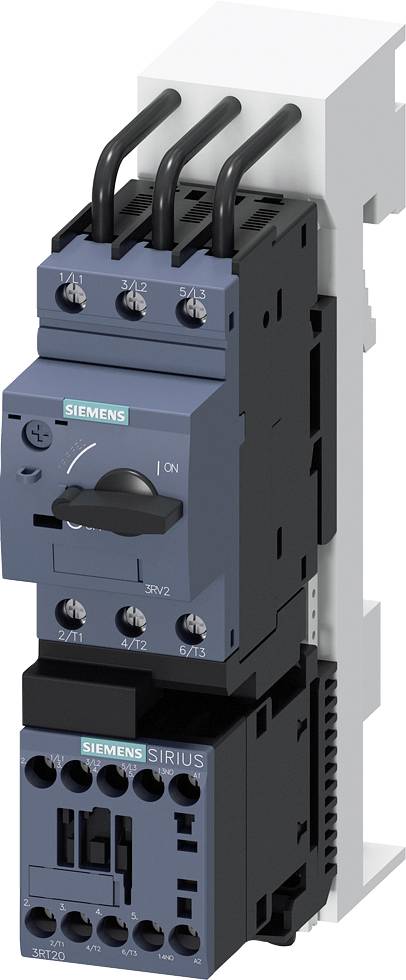

Siemens 3RA2110-0CD15-1AP0 3RA21100CD151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1699285

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Siemens 3RA2110-0CE15-1AP0 3RA21100CE151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1743540

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3RA2110-0CH15-1AP0 3RA21100CH151AP0 Feeder terminal Motor power at 400 V 0.06 kW 690 V Nominal current 0.2 A

Item no:1743542

Dispatches on Tue 20 Oct

Conrad Electronic

200 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

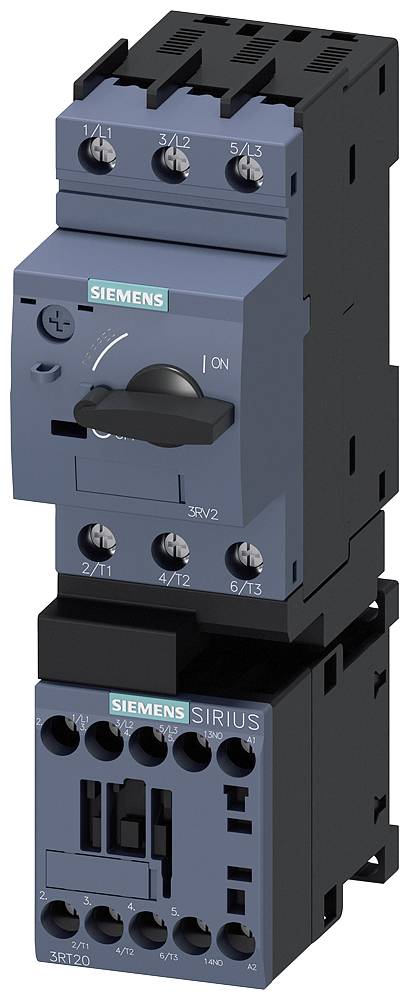

Siemens 3RA2110-0DA15-1AP0 3RA21100DA151AP0 Feeder terminal Motor power at 400 V 0.09 kW 690 V Nominal current 0.3 A

Item no:1750613

Dispatches on Tue 20 Oct

Conrad Electronic

300 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3RA2110-0DD15-1AP0 3RA21100DD151AP0 Feeder terminal Motor power at 400 V 0.09 kW 690 V Nominal current 0.3 A

Item no:1743545

Dispatches on Tue 20 Oct

Conrad Electronic

300 mA

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 234.99^*

Documents & Downloads

Datasheet

Datasheet 1743472 Siemens 3RA2110-0BD15-1AP0 3RA21100BD151AP0 Feeder terminal 690 V Nominal current 0.2 A

User & Safety Instructions

User & Safety Instructions 1743472 Siemens 3RA2110-0BD15-1AP0 3RA21100BD151AP0 Feeder terminal 690 V Nominal current 0.2 A

Description

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 0.18...0.25 A 230 V AC Spring-type terminal for 60 mm busbar systems (also fulfills type of coordination 1) Type of coordination 2, Iq = 150 kA 1 NO (contactor)
