Name: Siemens 3RA2327-8XB30-1AC2 Reversing contactor combo 3 makers 15 kW 690 V AC 27 A + auxiliary contact Compatible with (r
Brand: Siemens
SKU: 1749279
Availability: BackOrder

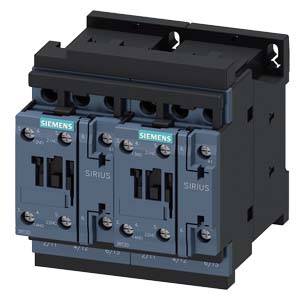

Electrical component by Siemens, type 'SIRIUS', with multiple connection points. Used for controlling electrical circuits.

Electrical switchboard with open doors reveals electronic components and wiring.

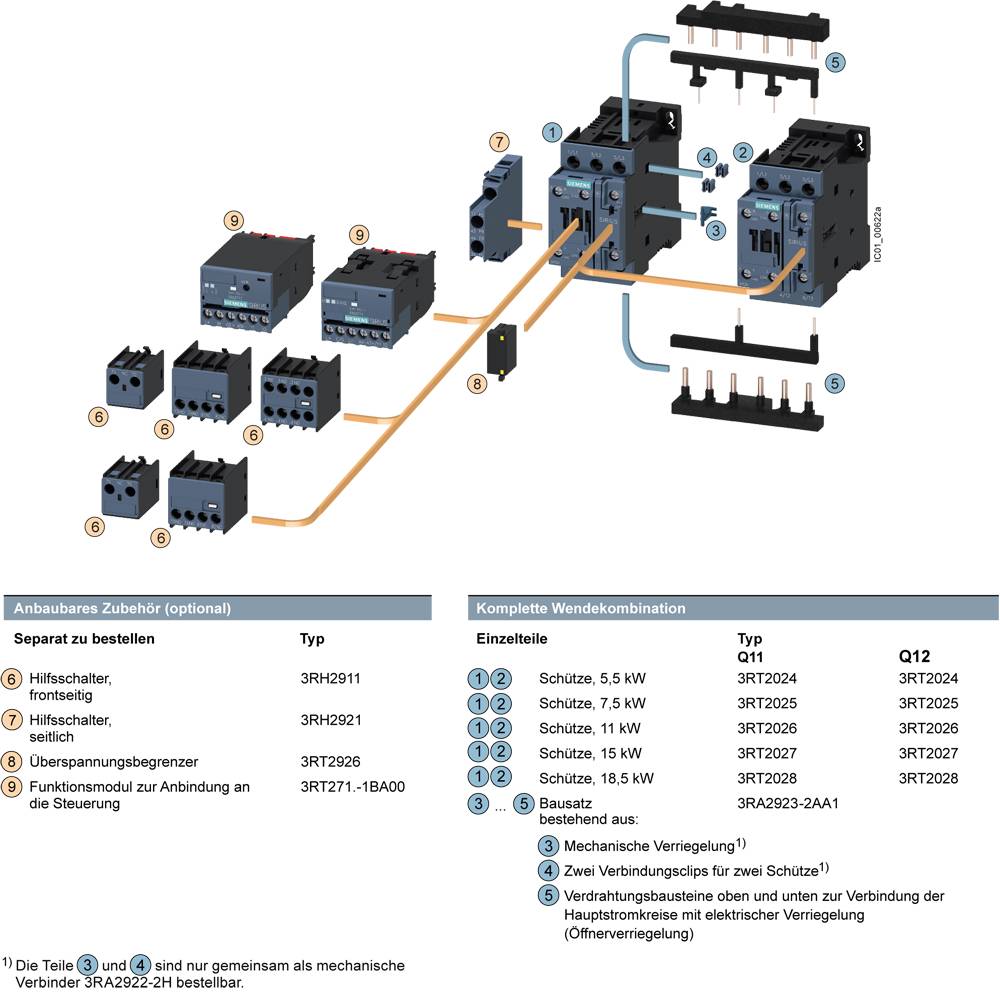

'Overview of Rifles and Accessories. Left: Separately Orderable Accessories. Right: Complete Reversible Combination with Individual Parts and Types.'

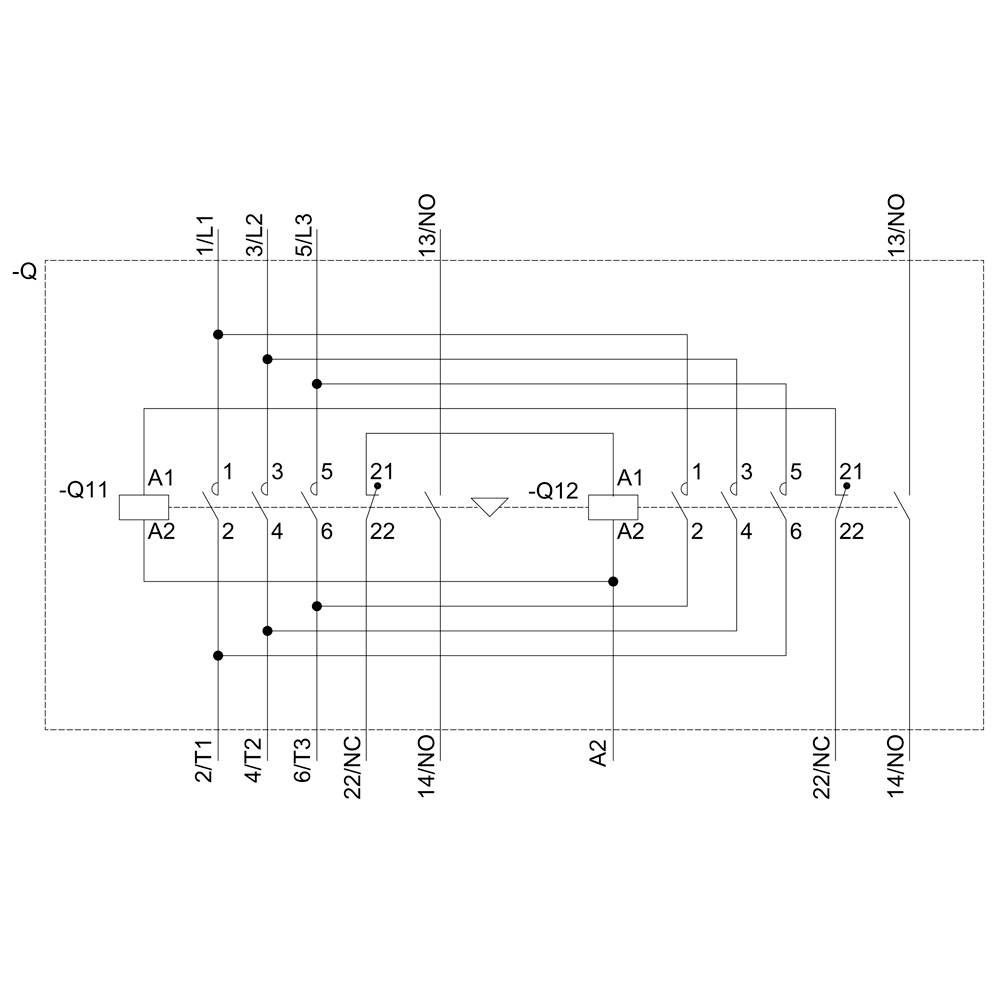

Circuit diagram of an electrical control circuit with contacts and connections; shows positions of A1, A2, contacts Q11, Q12.

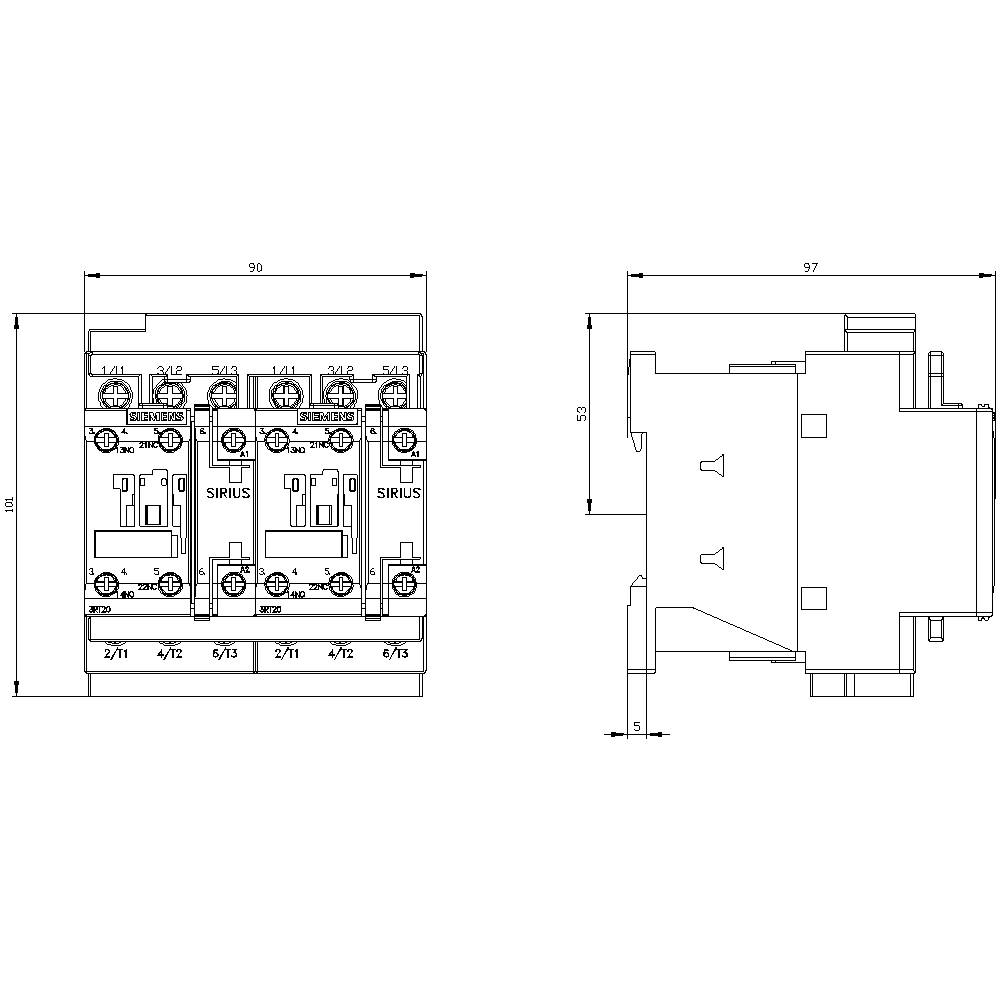

Technical drawing of an electrical switchgear with dimensions in millimetres, showing front and side views for installation purposes.

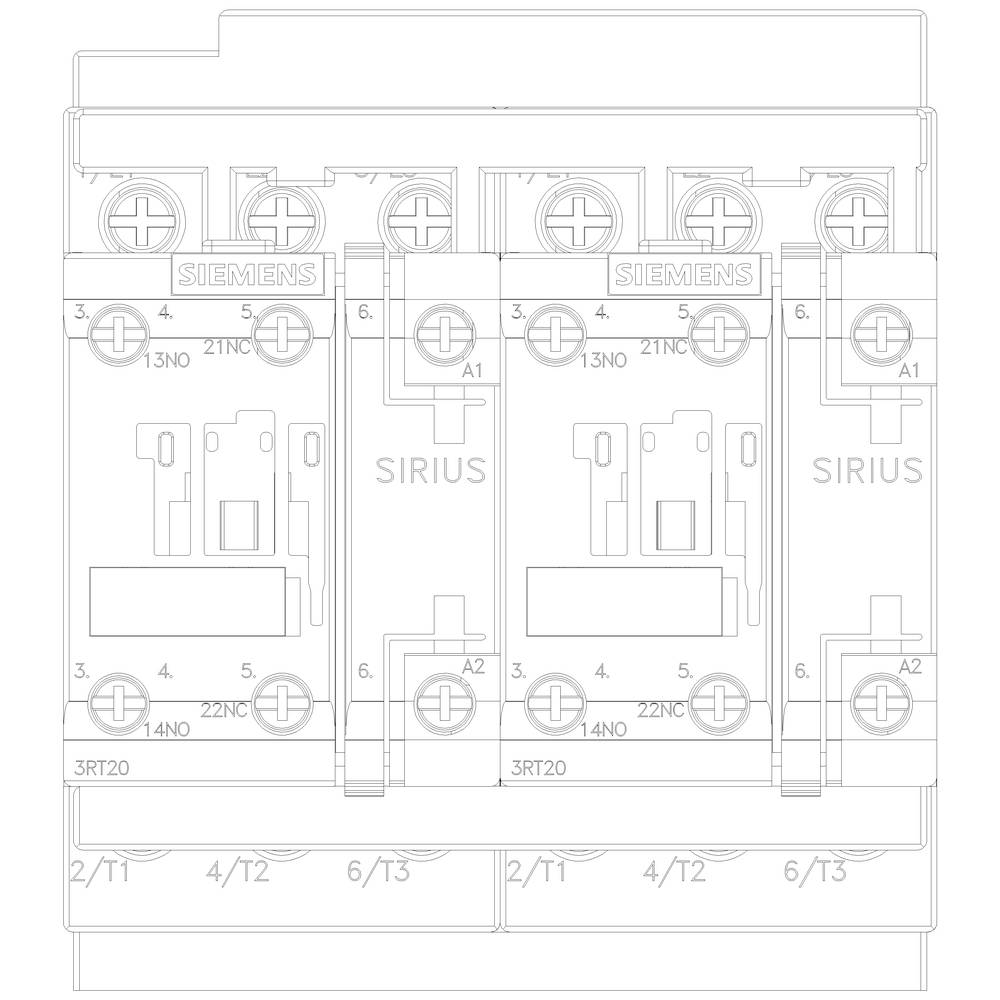

Technical drawing of three electrically arranged contactors, marked with 'SIEMENS SIRIUS' and numbered terminals.

1/6

Image similar

Product type

Reversing contactor combo

No. of pins

3-pin

Nominal voltage

690 V AC

Current load

27 A

Power

15 kW

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 299.00 / piece)

€ 299.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

REV.COMB.,18,5KW, AC110V 50/60HZ

Our service for you

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Product type: Reversing contactor combo

Type: 3RA2327-8XB30-1AC2

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 V AC (max)

Switching voltage (max.): 690 V AC

Permanent current (max.): 32 A

Current load: 27 A

: 15 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 90 mm

Height: 101 mm

Depth: 97 mm

Dim: (W x H x D) 90 x 101 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Reversing contactor

: 15 kW

: 3

: 0

: 32 A

: IP20

: Screw connection

: AC

: Other

: 14.709975

UKCA: not relevant
