Name: Siemens 3RA2425-8XE32-1BB4 Star-delta combo 3 makers 690 V AC Compatible with (relay brand): Siemens Piece 1 pc(s)
Brand: Siemens
SKU: 1745689
Availability: BackOrder

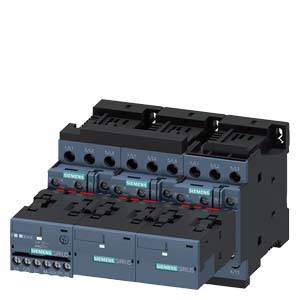

An electrical switching device with multiple terminals and markings from 'SIEMENS', suitable for installation in electrical systems.

A person is cutting a wooden board on an electric circular saw. Wood shavings are flying, the working environment looks craftsman-like.

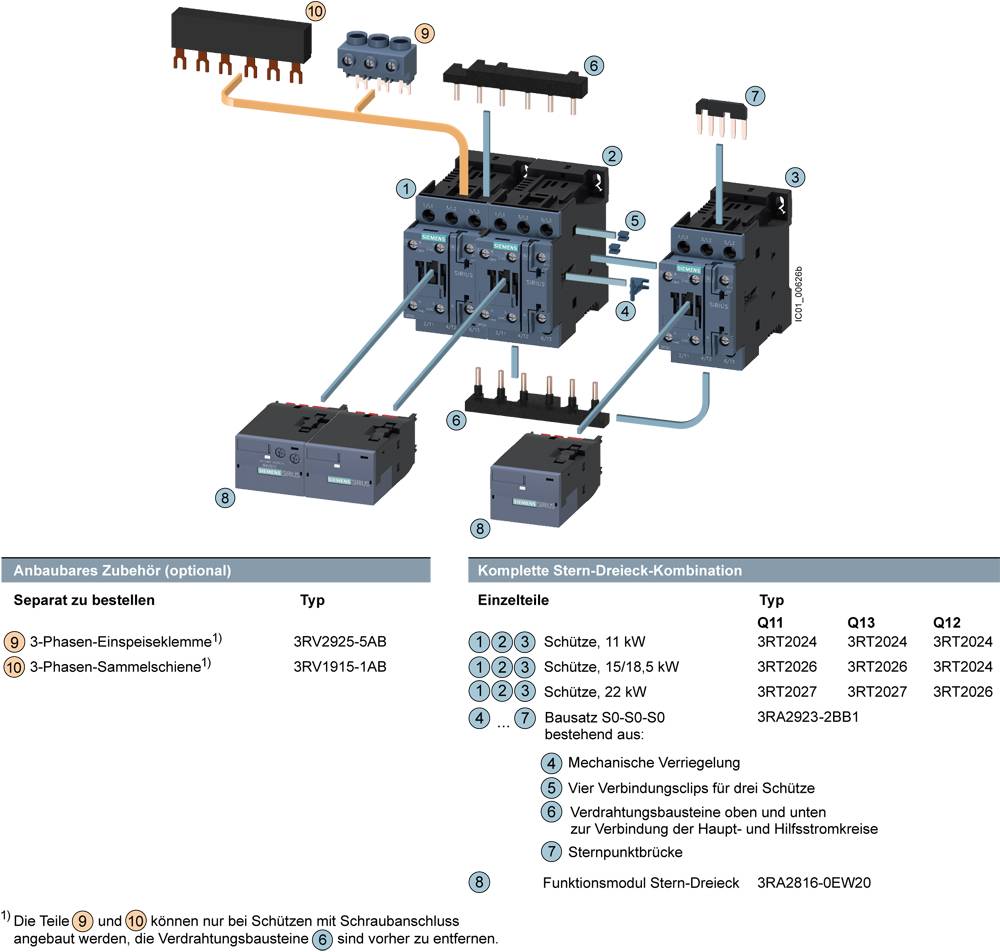

'Complete star-delta combination' with accessories. Includes contactor for 11 kW, mechanical interlocking, connection parts and functional module.

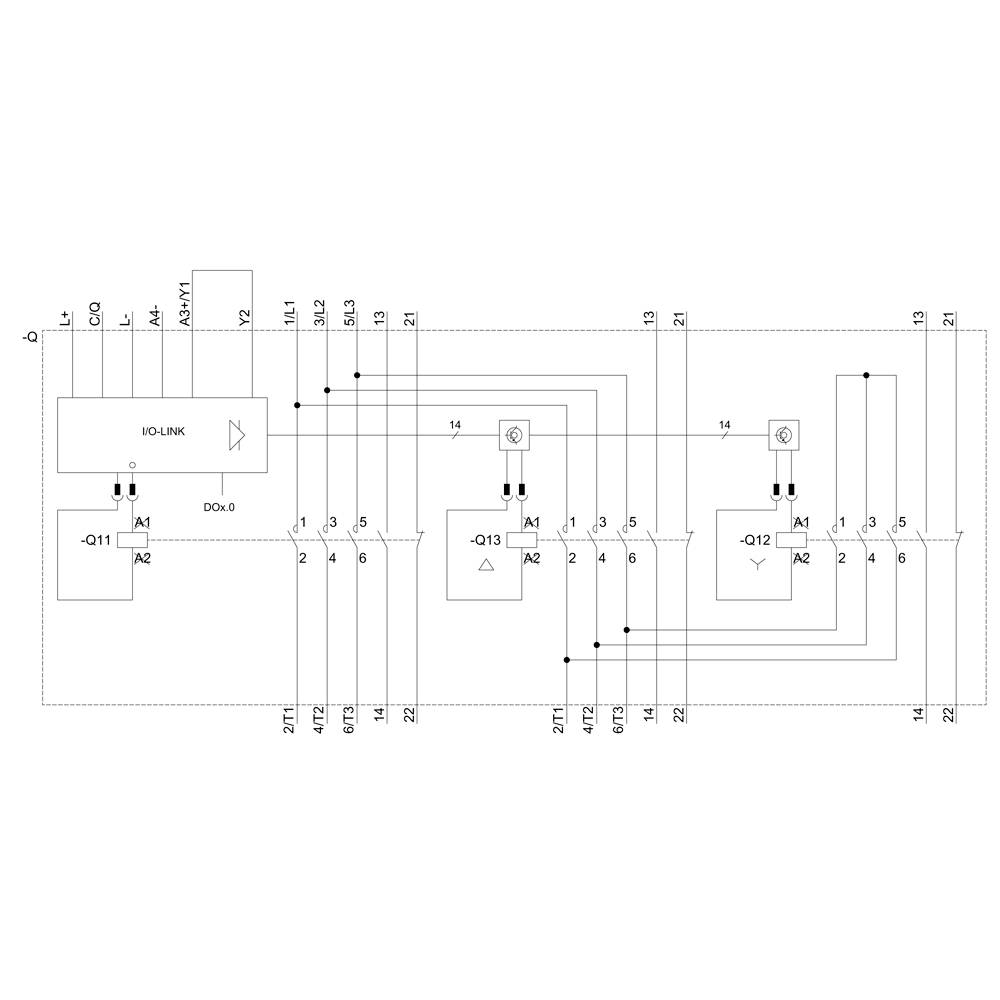

Circuit diagram with IO-Link module, various connections and electrical components, including switches and routing paths.

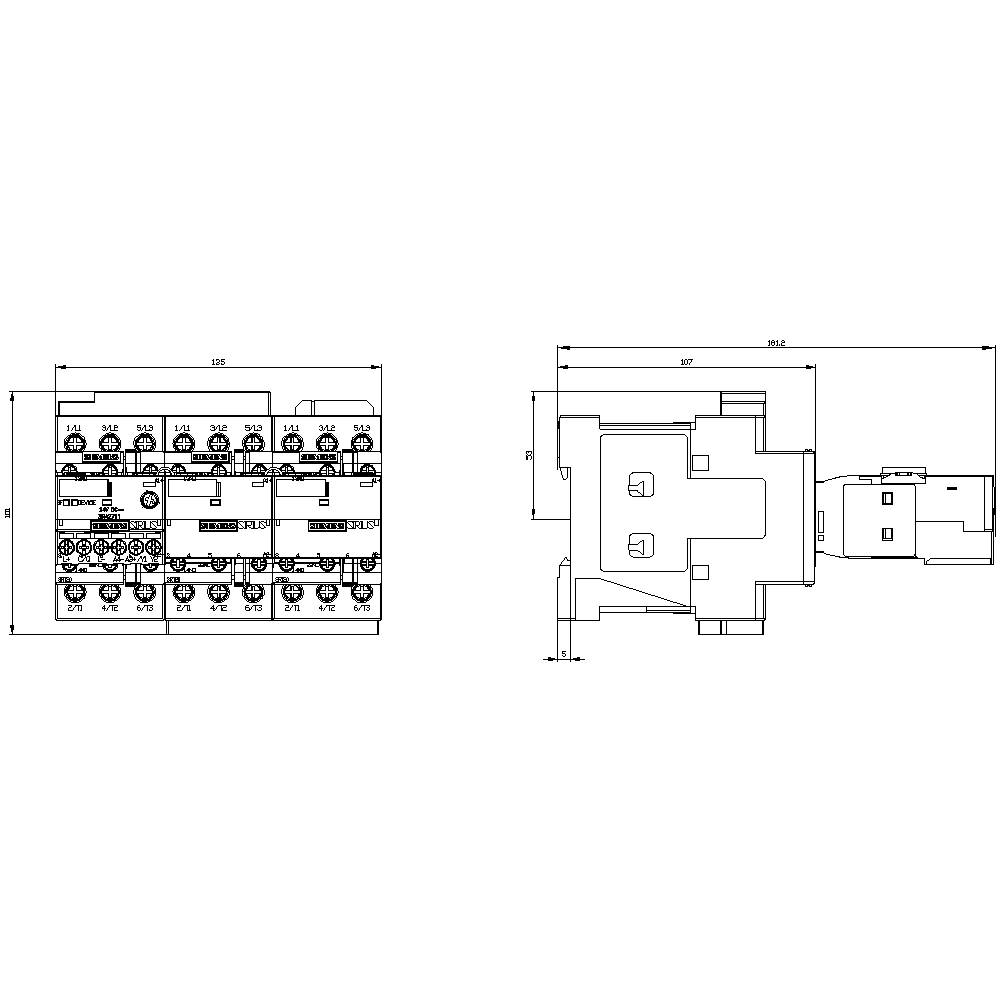

Technical drawing of an electrical switch with detailed dimensions. Left: front view, right: side view with dimensions in millimetres.

1/5

Image similar

Product type

Star-delta combo

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Screws

Packaging type

Piece

Datasheet (PDF)

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 735.00 / piece)

€ 735.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Packaging type: Piece

Product type: Star-delta combo

Type: 3RA2425-8XE32-1BB4

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 135 mm

Height: 101 mm

Depth: 181 mm

Dim: (W x H x D) 135 x 101 x 181 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Star-delta contactor

: 15 kW

: 3

: 0

: 40 A

: IP20

: Screw connection

: DC

: Other

UKCA: yes
