Name: Siemens 3RA2426-8XH32-1BB4 Star-delta combo 3 makers 690 V AC Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1745860
Availability: BackOrder

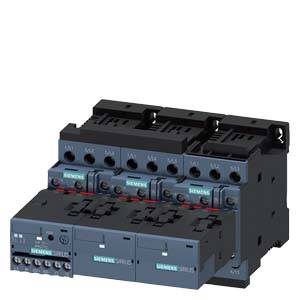

Electric switch with three units, labelled 'Siemens', in a modular view. Main theme: electrical switching and distribution.

A person is cutting a wooden board with a circular saw. Wood chippings are flying around, which demonstrates the dynamism of the work.

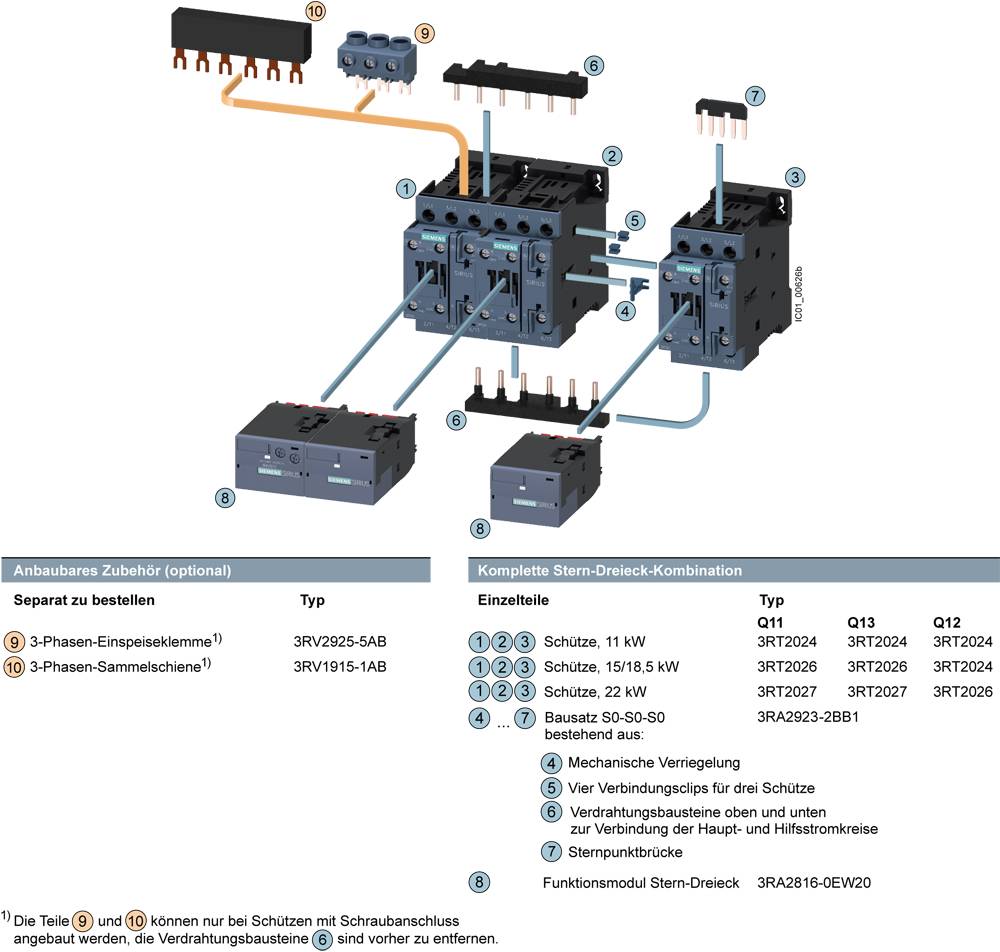

'Schematic representation of a complete star-delta combination with contactors and accessories. Includes types and article numbers.'

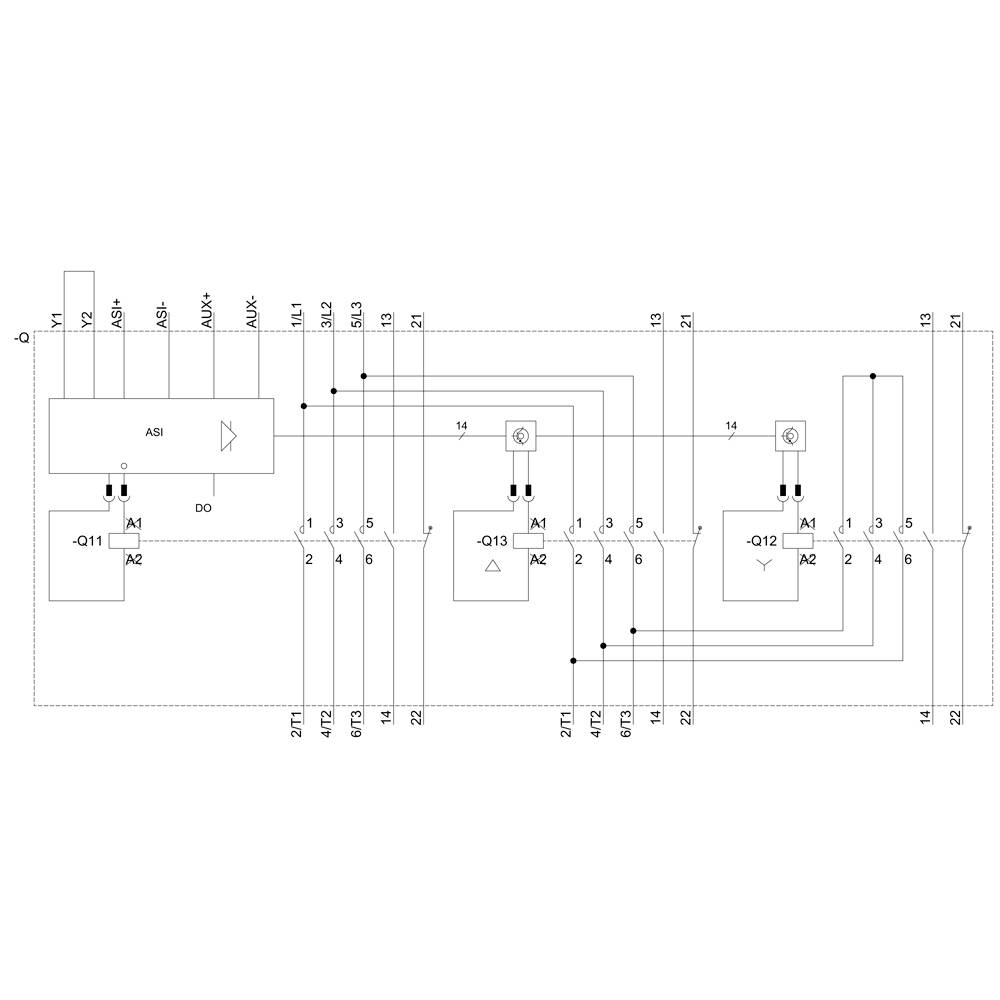

'Circuit diagram of an electrical control system with components AS, DO, -Q11, -Q12, and -Q13, connected by cables and connections.'

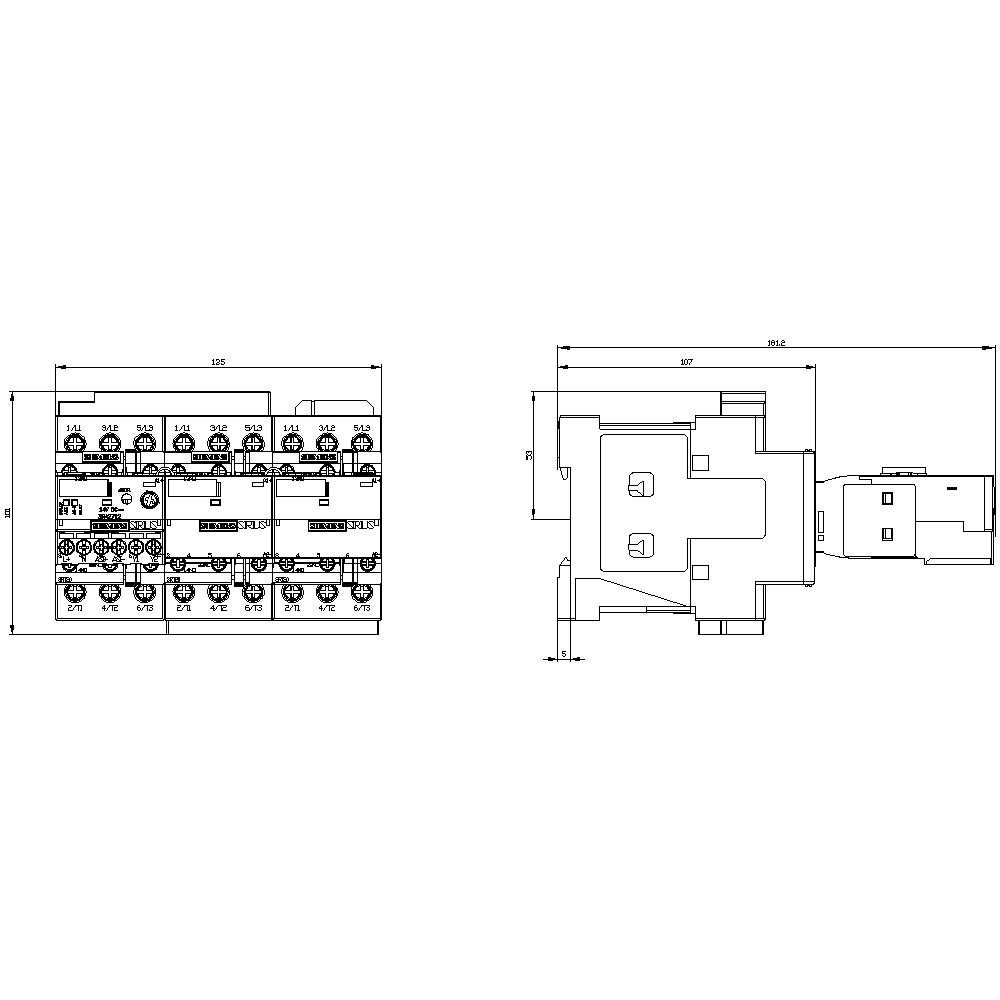

Technical drawing of an electrical switching device with detailed dimensions. Shows front and side view.

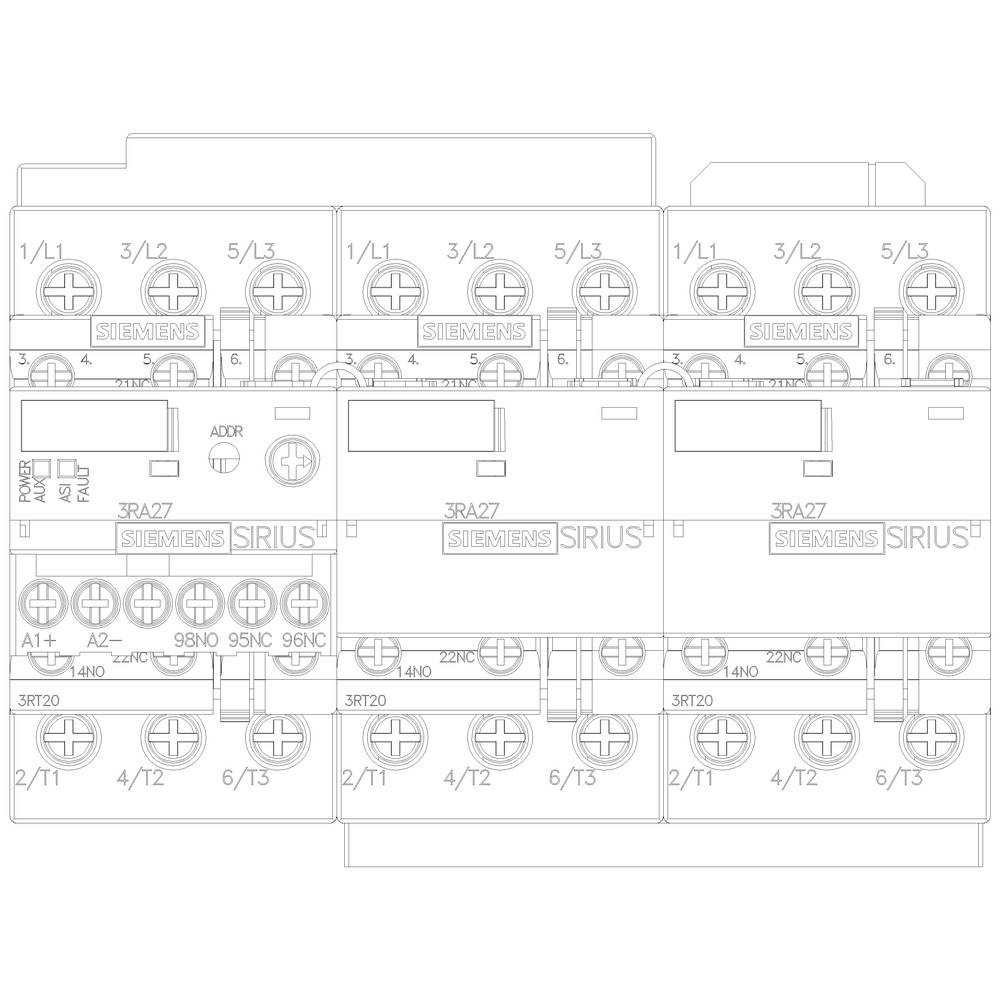

A technical diagram shows the wiring and connections of Siemens SIRIUS control modules.

1/6

Image similar

Product type

Star-delta combo

No. of pins

3-pin

Nominal voltage

690 V AC

Connection

Screws

Type

3RA2426-8XH32-1BB4

Datasheet (PDF)

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 895.00 / piece)

€ 895.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

CONTACTOR,AC3:3KW 1NO DC60V

Our service for you

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Product type: Star-delta combo

Type: 3RA2426-8XH32-1BB4

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (max.): 24 V DC

Control voltage range: 24 V DC (max)

Switching voltage (max.): 690 V AC

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 135 mm

Height: 101 mm

Depth: 181 mm

Dim: (W x H x D) 135 x 101 x 181 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Star-delta contactor

: 22 kW

: 3

: 0

: 50 A

: IP20

: Screw connection

: DC

: Other

UKCA: not relevant
