Name: Siemens 3RA6120-1EP33 3RA61201EP33 Direct motor starter Motor power at 400 V 15 kW 690 V Nominal current 32 A
Brand: Siemens
SKU: 1698919
Availability: BackOrder

Electronic overload relay Siemens Sirius, showing operating elements and indicator lights. Device warning: 'Do not operate when idle'.

'An open electrical cabinet on the left with visible wiring and electronic components. On the right, a large machine behind a rain-streaked window.'

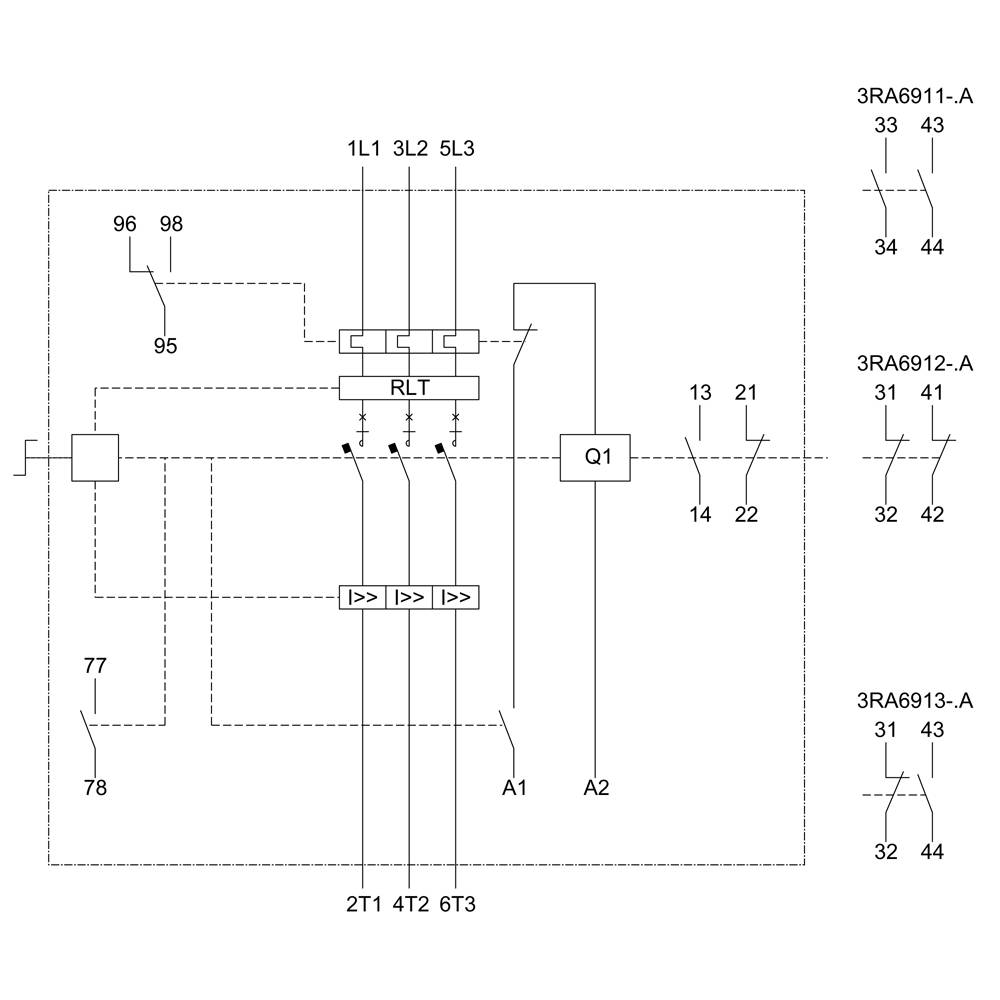

Circuit diagram of an electrical system with component numbers such as 1L1, 3L2, and relay RLT, showing connections and terminal designations.

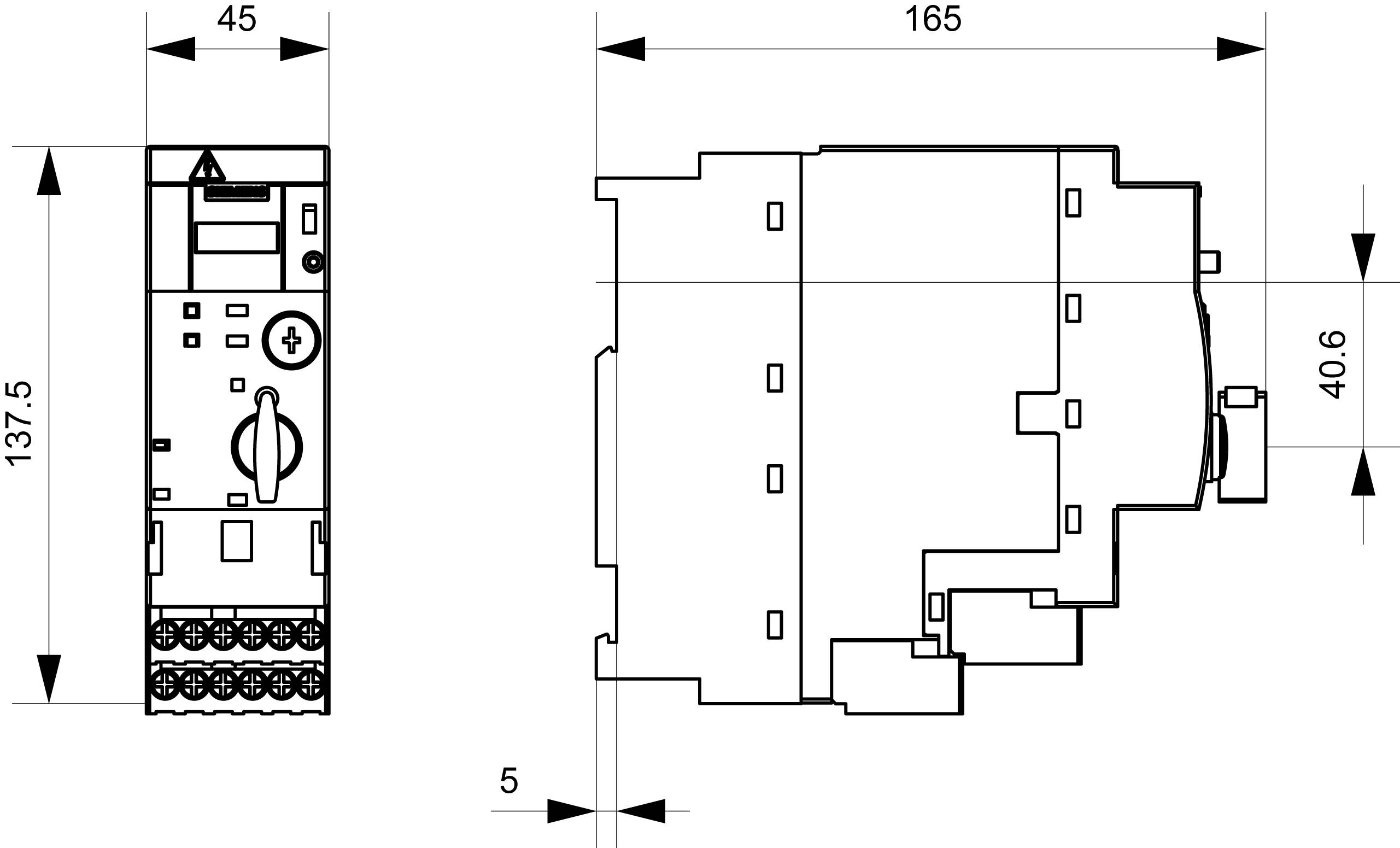

'Side view and front view of an electrical component with dimensions: height 137.5 mm, width 45 mm, depth 165 mm.'

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 865.00 / piece)

€ 865.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the electrical connection: pluggable
without terminals

Motor voltage: 400 V

Product type: Direct motor starter

Supply current: 32 A

Motor power at 400 V: 15 kW

Nominal voltage: 690 V

Type: Mounting type: screw and snap

Manufacturer part #: 3RA61201EP33

Nominal current: 32 A

Nominal current - rounded value: 32 A

Type: 3RA6120-1EP33

Motor power at 230V / 400V: 15 kW

Dim: (W x H x D) 45 x 170 x 165 mm

Connection: Push-fit

Width: 45 mm

Height: 170 mm

Depth: 165 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 45

: 170 mm

: 165 mm

: FALSE

: 15 kW

: 1

: 1

: 1

: 32 A

: 2

: FALSE

: IP20

: Adjustable

: TRUE

: FALSE

: Other

: Screw connection

: AC/DC

: Direct online starter (DOL)

: 7500 kW

: 32 A

: 60 °C

: Other

: Class 2

UKCA: yes
