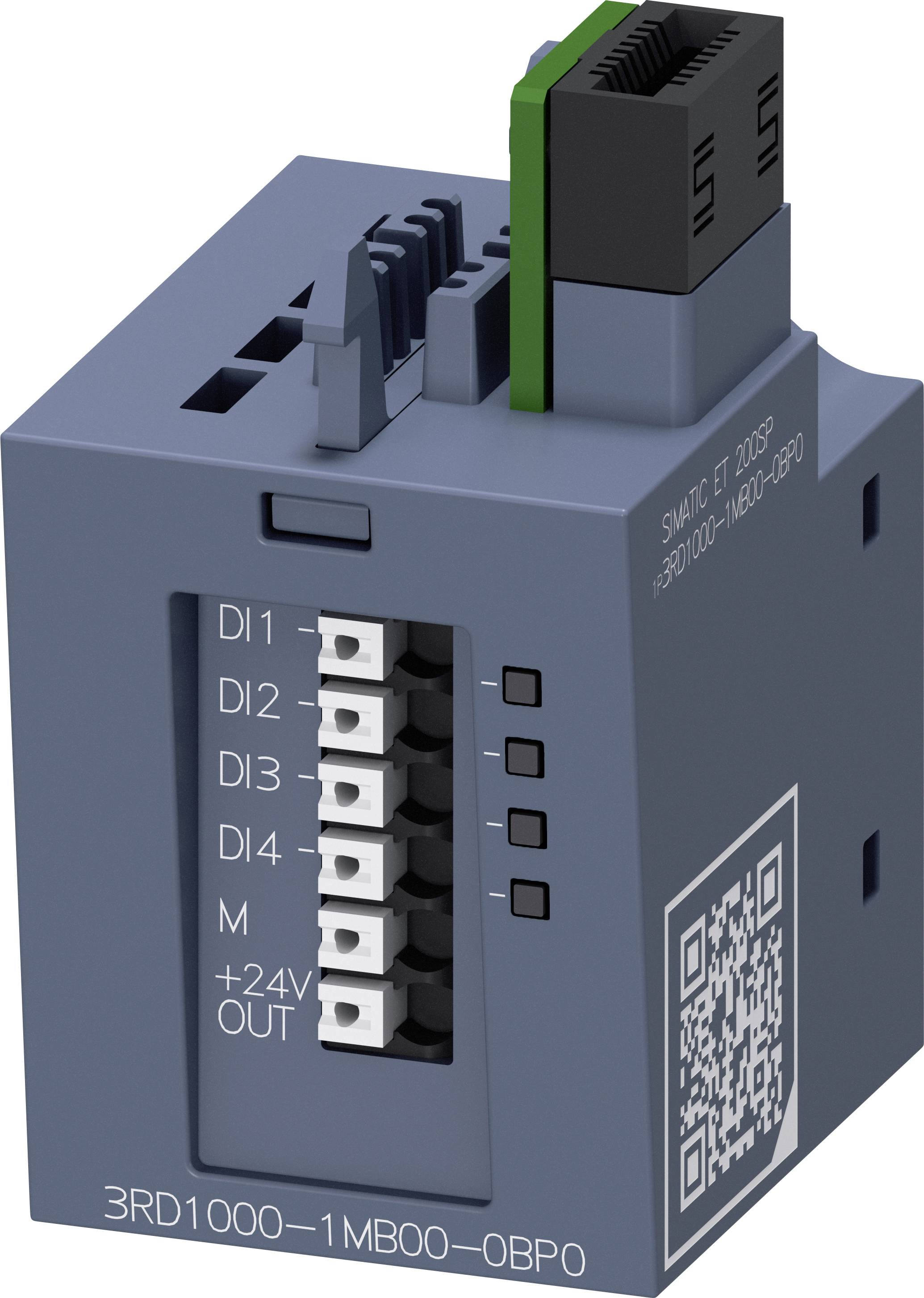

Compact electronic module with multiple input channels and network connection, QR code on the front panel.

Compact electronic module with multiple input channels and network connection, QR code on the front panel.

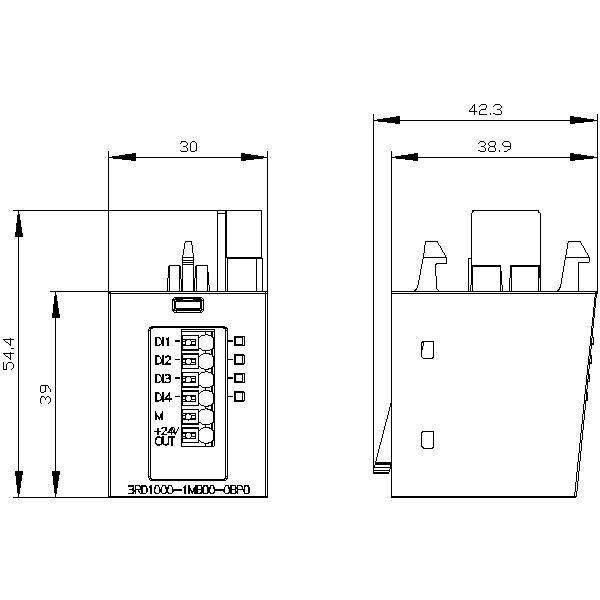

Technical drawing of an electrical component with front and side view. Shows connections and dimensions in millimetres.

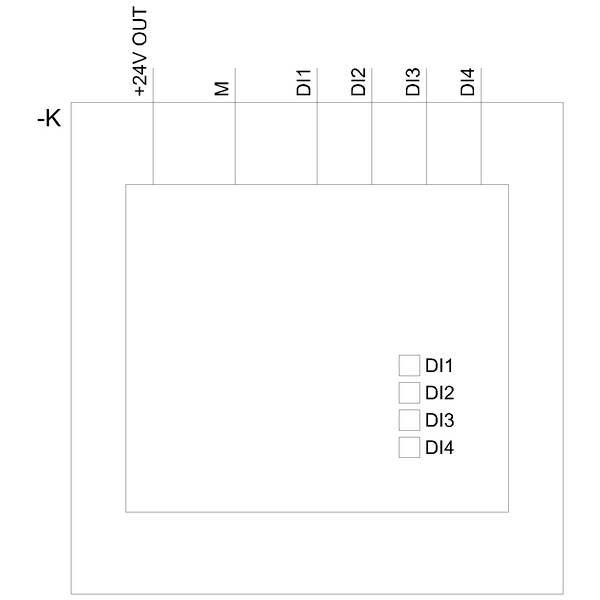

'Circuit diagram shows connections: -K, +24V OUT, M, DI1 to DI4. Checkboxes DI1 to DI4 in the bottom right represent digital inputs.'

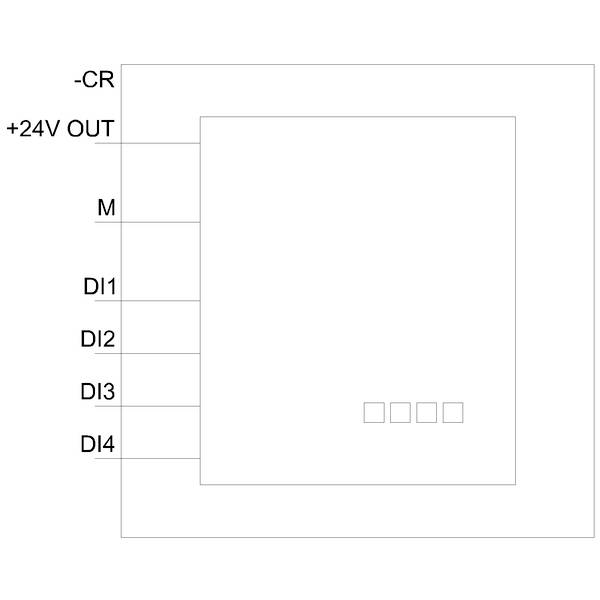

Diagram of an electrical circuit diagram with five connections: -CR, +24V OUT, M, DI1, DI2, DI3, DI4, likely for a control unit.

1/4

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Motor voltage: 24 V DC

Product type: Motor starter

Operating voltage: 0 - 30 V

Nominal voltage: 24 V DC

Type: Basic 4DI (LC) submodule

Manufacturer part #: 3RD10001MB000BP0

Type: 3RD1000-1MB00-0BP0

Dim: (W x H x D) 30 x 54.5 x 42.3 mm

Width: 30 mm

Height: 54.5 mm

Depth: 42.3 mm

Max. temperature: +40 °C

Min. temperature: -25 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3410368 Siemens 3RD1000-1MB00-0BP0 3RD10001MB000BP0 Motor starter 24 V DC

User & Safety Instructions

User & Safety Instructions 3410368 Siemens 3RD1000-1MB00-0BP0 3RD10001MB000BP0 Motor starter 24 V DC

Description

SIMATIC ET 200SP e-Starter Basic 4DI (LC) submodule. 4DI (LC) submodule SIMATIC ET 200SP for extension of the e-starter by four inputs for local starter functions such as manual local control, implementation of fast inputs or end position shutdown. The optional 4DI (LC) submodule enables an on-site control of the e-starter. This means that commands can be sent to the e-Starter via the four freely parameterizable inputs, regardless of the higher-level control, so that tests can be carried out with the connected motor during commissioning, for example. The ET 200SP distributed I/O system replaces the tried and tested ET 200S system. E-Starter ET 200SP - Flexible. High Performance. Reliable.

This text is machine translated.

Description

SIMATIC ET 200SP e-Starter Basic 4DI (LC) submodule. 4DI (LC) submodule SIMATIC ET 200SP for extension of the e-starter by four inputs for local starter functions such as manual local control, implementation of fast inputs or end position shutdown. The optional 4DI (LC) submodule enables an on-site control of the e-starter. This means that commands can be sent to the e-Starter via the four freely parameterizable inputs, regardless of the higher-level control, so that tests can be carried out with the connected motor during commissioning, for example. The ET 200SP distributed I/O system replaces the tried and tested ET 200S system. E-Starter ET 200SP - Flexible. High Performance. Reliable.

This text is machine translated.
