Name: Siemens 3RH2362-2AF00 Auxiliary contactor + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1742405
Availability: BackOrder

An open electrical cabinet displays a variety of electrical components and cabling, arranged across multiple shelves.

Circuit diagram showing various auxiliary contactors, load-break isolators and associated accessories. Details of function and conductor arrangement.

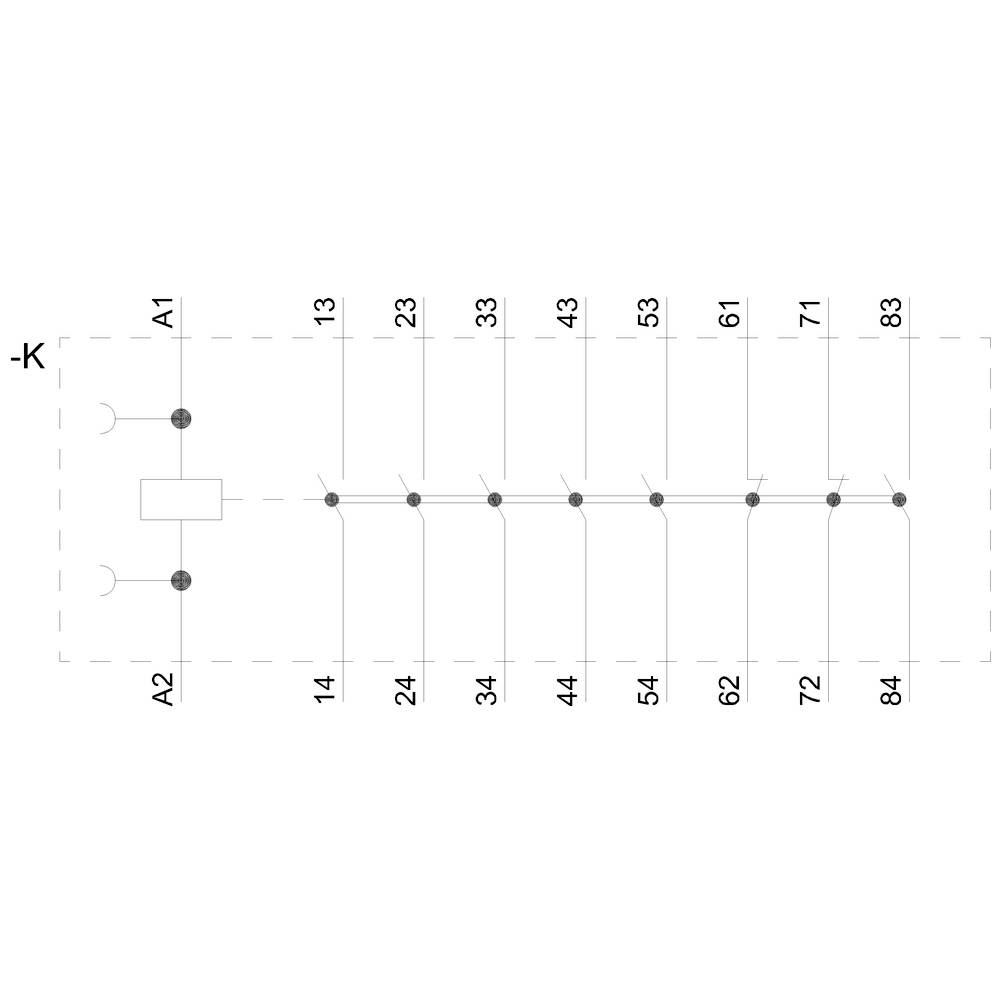

Electrical Circuit Diagram: Vertical line connects points from 13 to 84. Rectangular unit on the left between A1 and A2. Line -K runs to the left.

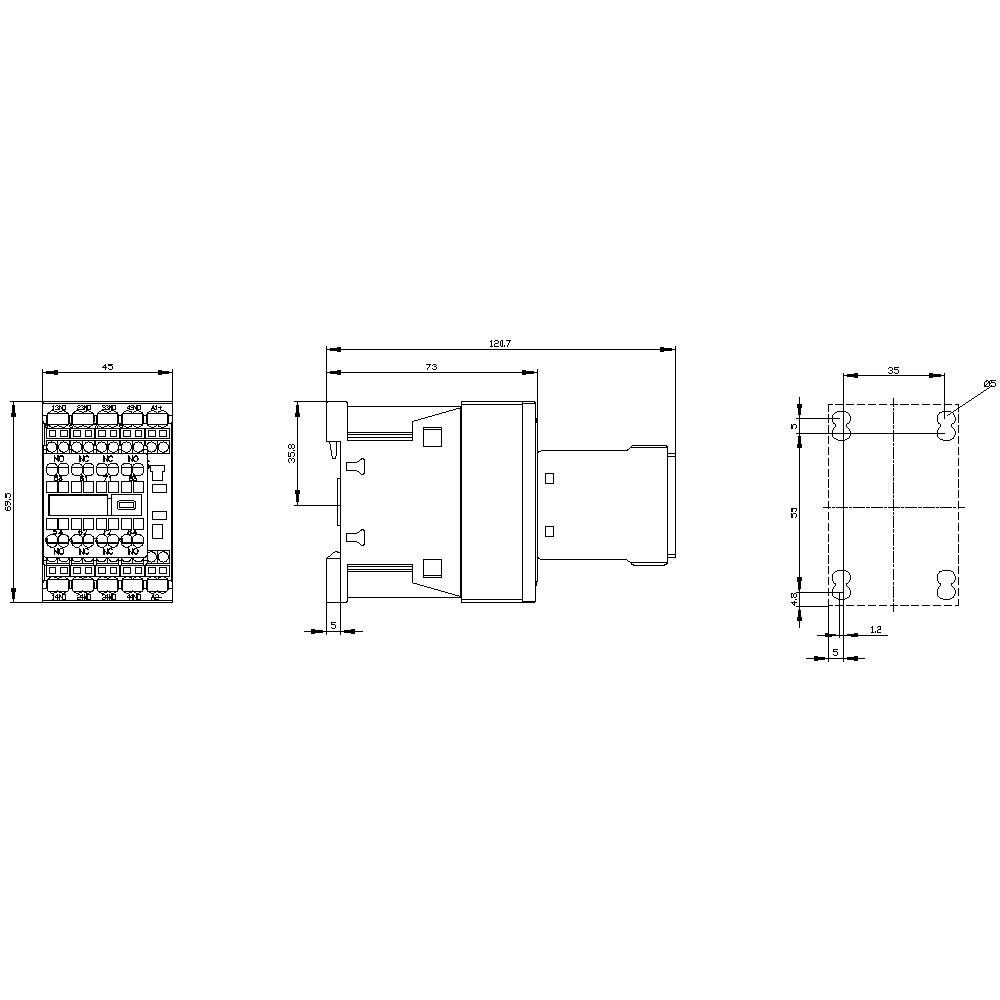

Technical drawing of an electronic component with multiple views, dimensions, and connection details in millimetres.

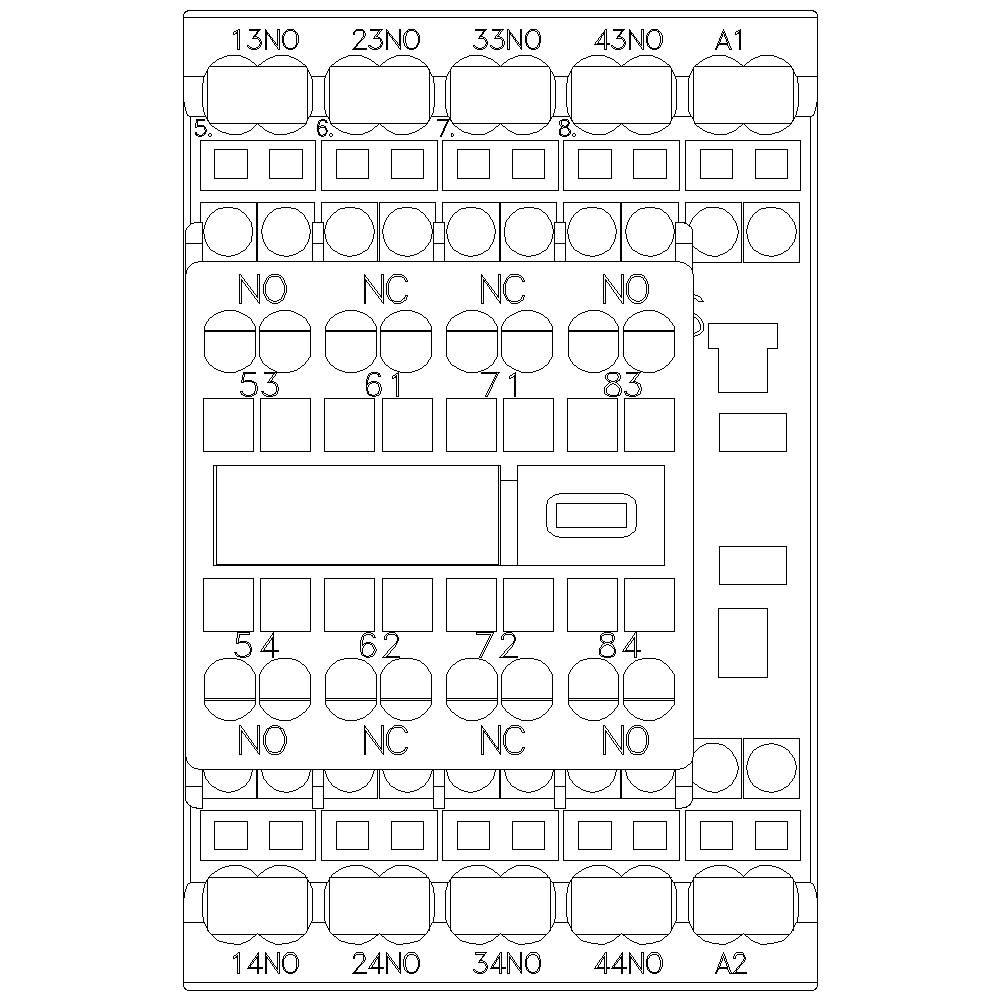

'Relay circuit diagram: Showing terminals with markings such as NO (normally open) and NC (normally closed) for control circuits.'

1/6

Image similar

Product type

Auxiliary contactor

No. of pins

8-pin

Connection

Spring-loaded connector

Type

3RH2362-2AF00

Type

S00

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 89.99 / piece)

€ 89.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC

Product type: Auxiliary contactor

Type: 3RH2362-2AF00

Type: S00

No. of pins: 8-pin

Auxiliary contact type: 2 breakers
6 makers

Control voltage (max.): 110 V AC

Control voltage range: 110 V AC (max)

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 70 mm

Depth: 121 mm

Dim: (W x H x D) 45 x 70 x 121 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 6

: 2

: 3 A

: 110-110 V

: 110-110 V

: FALSE

: Spring clamp connection

: AC

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Product type

Packaging type

Siemens 3RH1921-1CD01 Auxiliary switch module 1 breaker Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698904

Dispatches on Thu 22 Oct

Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 14.99^*

Siemens 3RH1921-1DA11 Auxiliary switch module Instant response Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698905

Fast track dispatch on Thu 15 Oct

15 Piece(s)Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Siemens 3RH1921-1EA11 Auxiliary switch module Instant response pluggable Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698906

Dispatches on Fri 23 Oct

Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Siemens 3RH1921-1KA02 Auxiliary switch module Instant response 2 breakers + auxiliary contact Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1704506

Dispatches on Thu 22 Oct

Conrad Electronic

Auxiliary switch module

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Siemens 3RH1921-1XA22-0MA0 Auxiliary switch module Instant response + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1744067

Fast track dispatch on Thu 15 Oct

5 Piece(s)Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 29.99^*

Siemens 3RH1921-2DA11 Auxiliary switch module + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1699096

Fast track dispatch on Thu 15 Oct

11 Piece(s)Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Siemens 3RH1921-2DE11 Auxiliary switch + enclosure Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1744068

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

Auxiliary switch

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Siemens 3RH1921-2EA20 Auxiliary switch module Instant response 2 makers pluggable Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1704507

Dispatches on Thu 22 Oct

Conrad Electronic

Auxiliary switch module

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Siemens 3RH1921-2EE02 Auxiliary switch 2 breakers Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1744069

Dispatches on Fri 23 Oct

Conrad Electronic

Auxiliary switch

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Siemens 3RH1921-2JE11 Auxiliary switch Instant response + auxiliary contact Compatible with (relay brand): Siemens Single 1 pc(s)

Item no:1744075

Dispatches on Fri 23 Oct

Conrad Electronic

Auxiliary switch

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 57.99^*

Documents & Downloads

Datasheet

Datasheet 1742405 Siemens 3RH2362-2AF00 Auxiliary contactor + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1742405 Siemens 3RH2362-2AF00 Auxiliary contactor + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Description

Power contactor, AC-3 7 A, 3 kW / 400 V 1 NC, 24 V DC 0.7-1.25* US, with diode integrated, 3-pole, Size S00, Spring-type terminal suitable for PLC outputs

Hints

Please note that the product is a custom-made and therefore exempt from the returns policy. Special order, no right of withdrawal.

Description

Power contactor, AC-3 7 A, 3 kW / 400 V 1 NC, 24 V DC 0.7-1.25* US, with diode integrated, 3-pole, Size S00, Spring-type terminal suitable for PLC outputs
