Name: Siemens 3RH2911-1BA01 Auxiliary switch module 1 breaker Compatible with (relay brand): Siemens Piece 1 pc(s)
Brand: Siemens
SKU: 1704646
Availability: BackOrder

A black electrical module with two blue slots, labelled '71', 'NC' and '72'.

A modern engine room, with an electrical cabinet open on the left revealing electrical components, and a window on the right with raindrops.

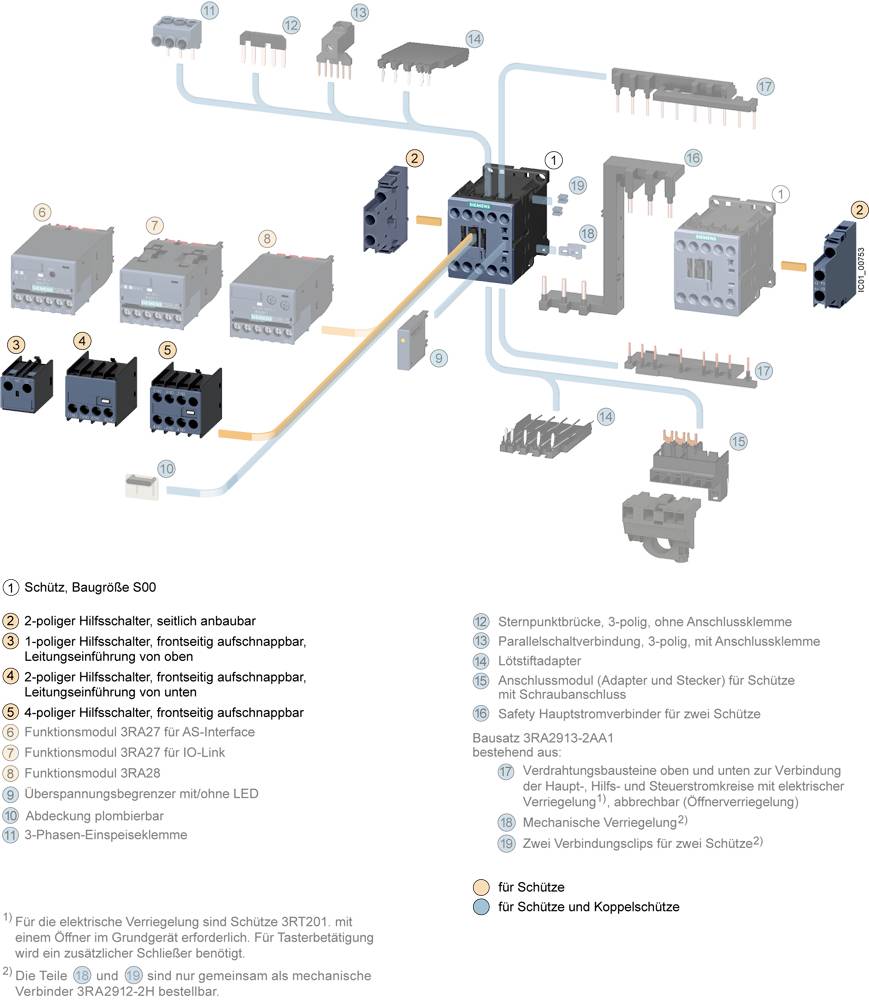

'Diagram of switching modules, showing various switching and connection modules with labels and connection lines.'

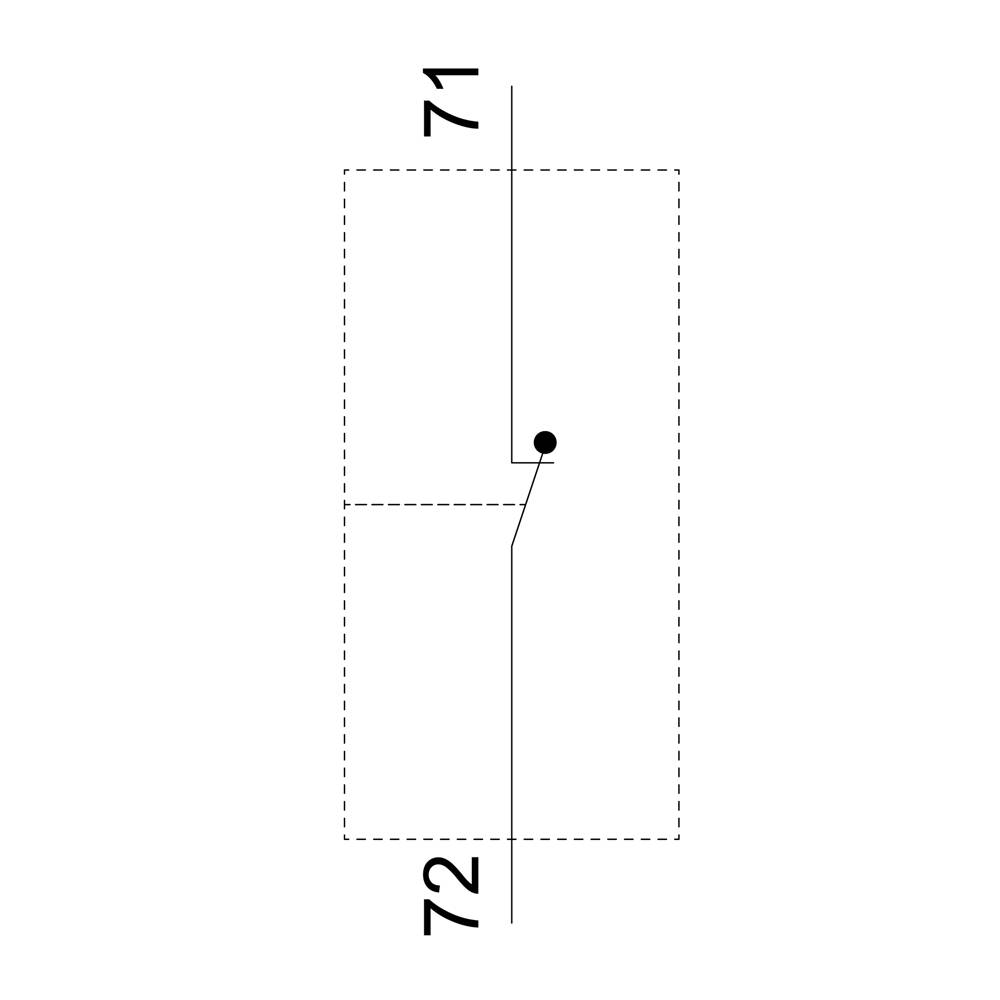

'Switch 71' via 'Switch 72' are likely showing an electrical engineering diagram with a switching point in the middle.

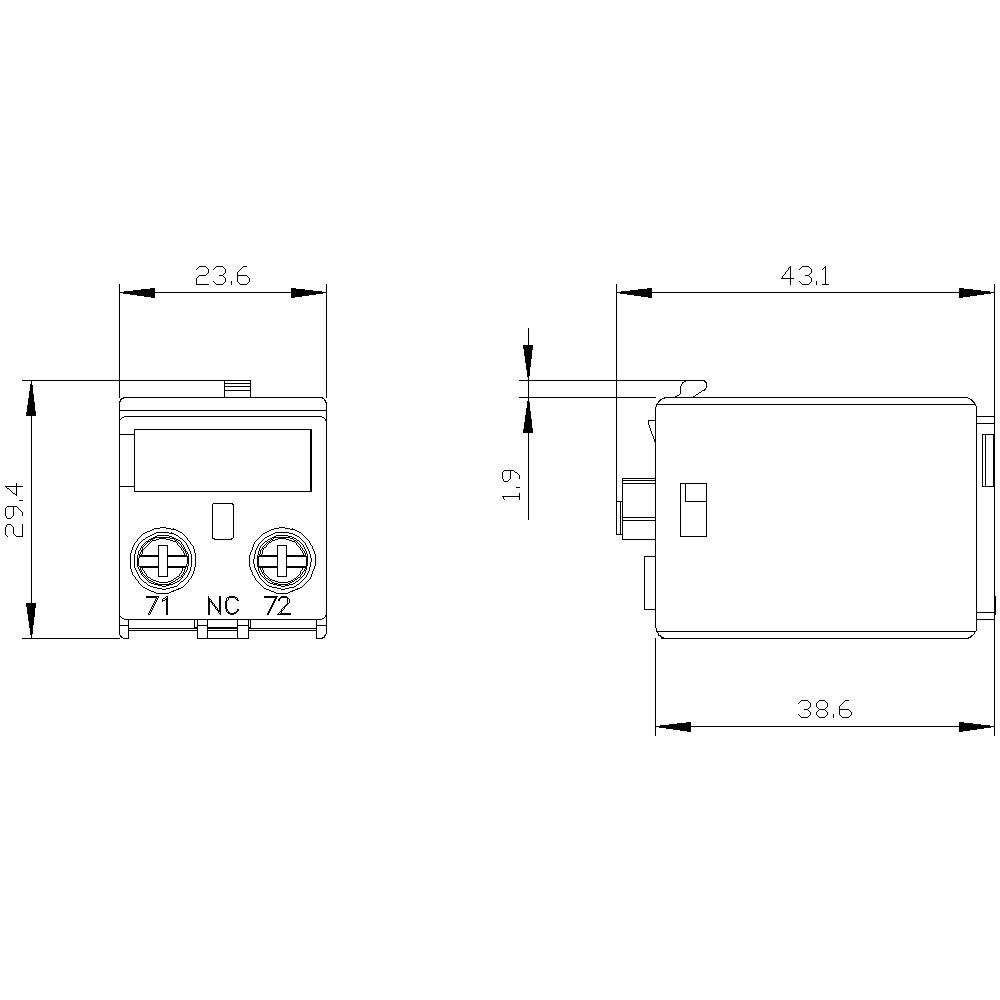

Technical drawing of a rectangular electrical device with front view on the left and side view on the right. Dimensions: 23.6 x 29.4 mm (front), 43.1 x 38.6 x 19 mm (side).

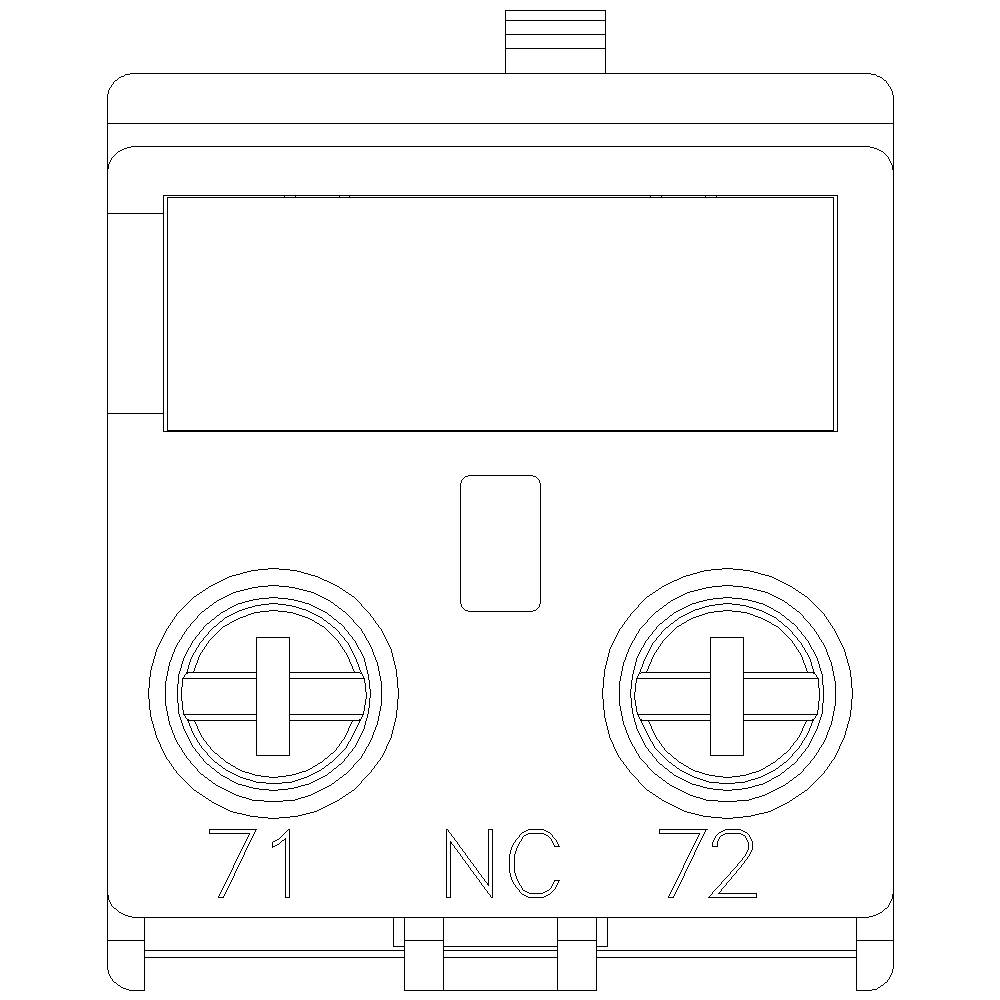

Technical drawing of an electrical relay with terminals, labelled '71', '72' and 'NC', without any additional labelling or details.

1/6

Image similar

Product type

Auxiliary switch module

Connection

Screw terminal

Packaging type

Piece

Type

3RH2911-1BA01

Type

S00

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 12.99 / piece)

€ 12.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Size: S00, S0, S2, S3

Packaging type: Piece

Product type: Auxiliary switch module

Type: 3RH2911-1BA01

Type: S00

Contact type: 1 breaker

Auxiliary contact type: 1 breaker

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Mounting type: Snap-in

Connection: Screw terminal

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 23.6 mm

Height: 27.5 mm

Depth: 38.6 mm

Dim: (W x H x D) 23.6 x 27.5 x 38.6 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: Other

: Top mounting

: None

: 6 A

: Screw connection

: 0

: 1

: 0

: 0

UKCA: yes
