Buy Siemens 3RM1002-2AA04 3RM10022AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

A Siemens electronic relay module from the SIRIUS series, dark grey, with test/reset switch and various status indicators.

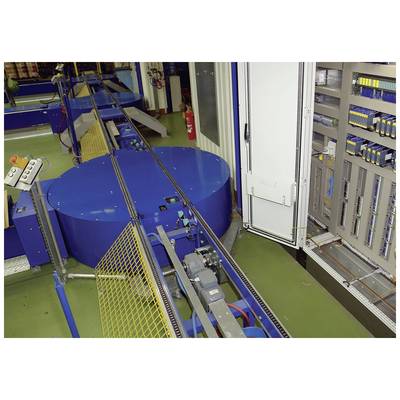

A blue industrial rotational machine in a factory environment, surrounded by control panels and electrical components.

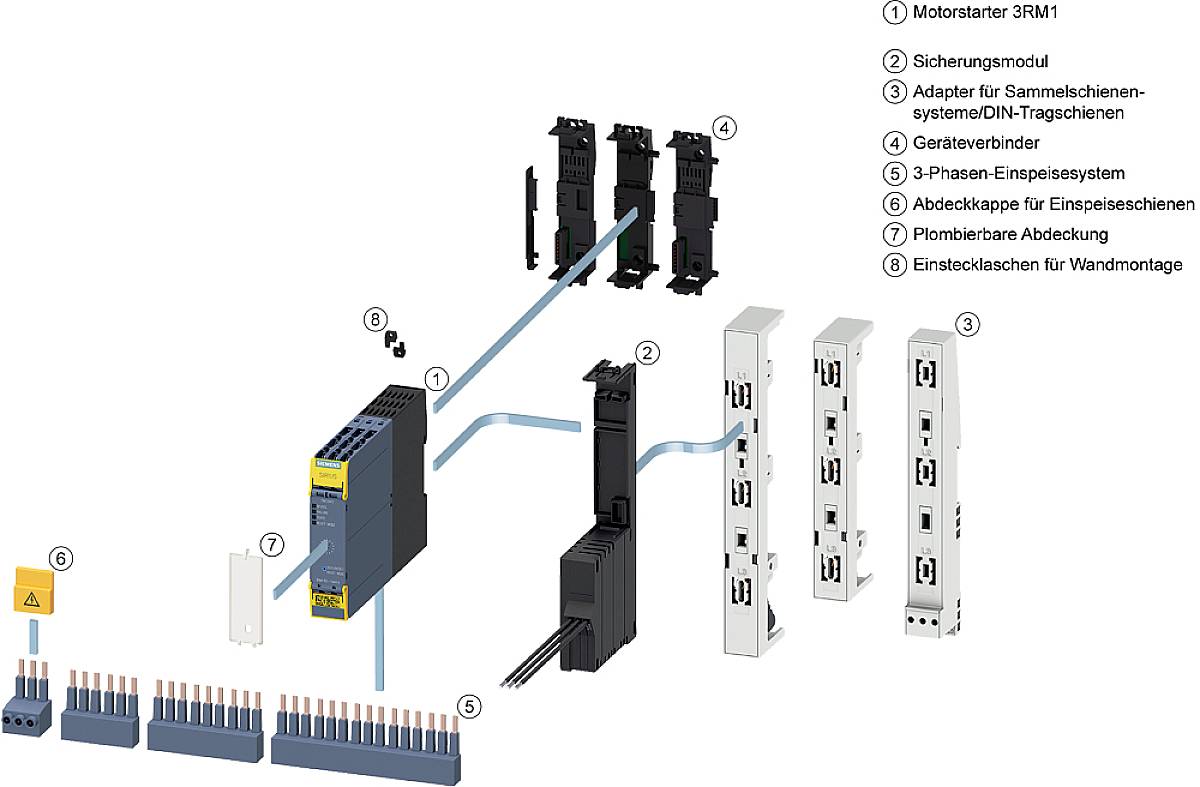

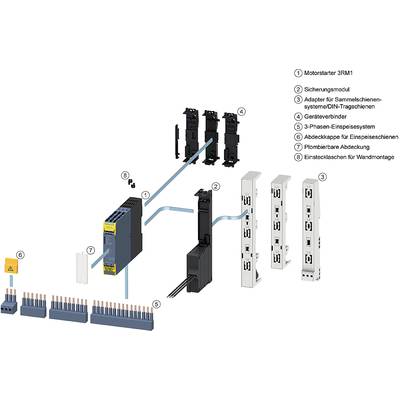

'Diagram of the electrical installation with motor starter, fuse module and three-phase power supply system in sequence.'

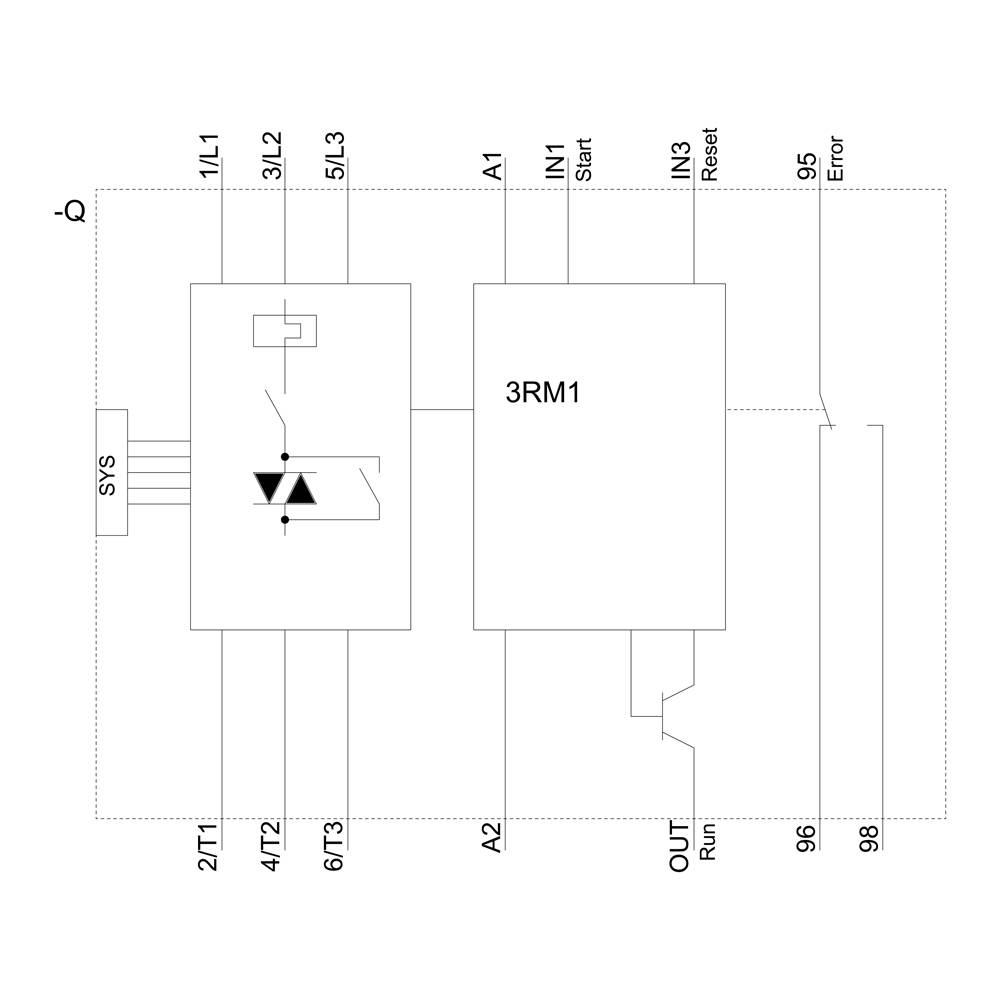

Circuit diagram of a safety relay with labels: SYS, 1/L1, 2/T1, 3/L2, 4/T2, 5/L3, 6/T3, A1, A2, IN1 (Start), IN3 (Reset), 3RM1, OUT (Run), 95 (Error).

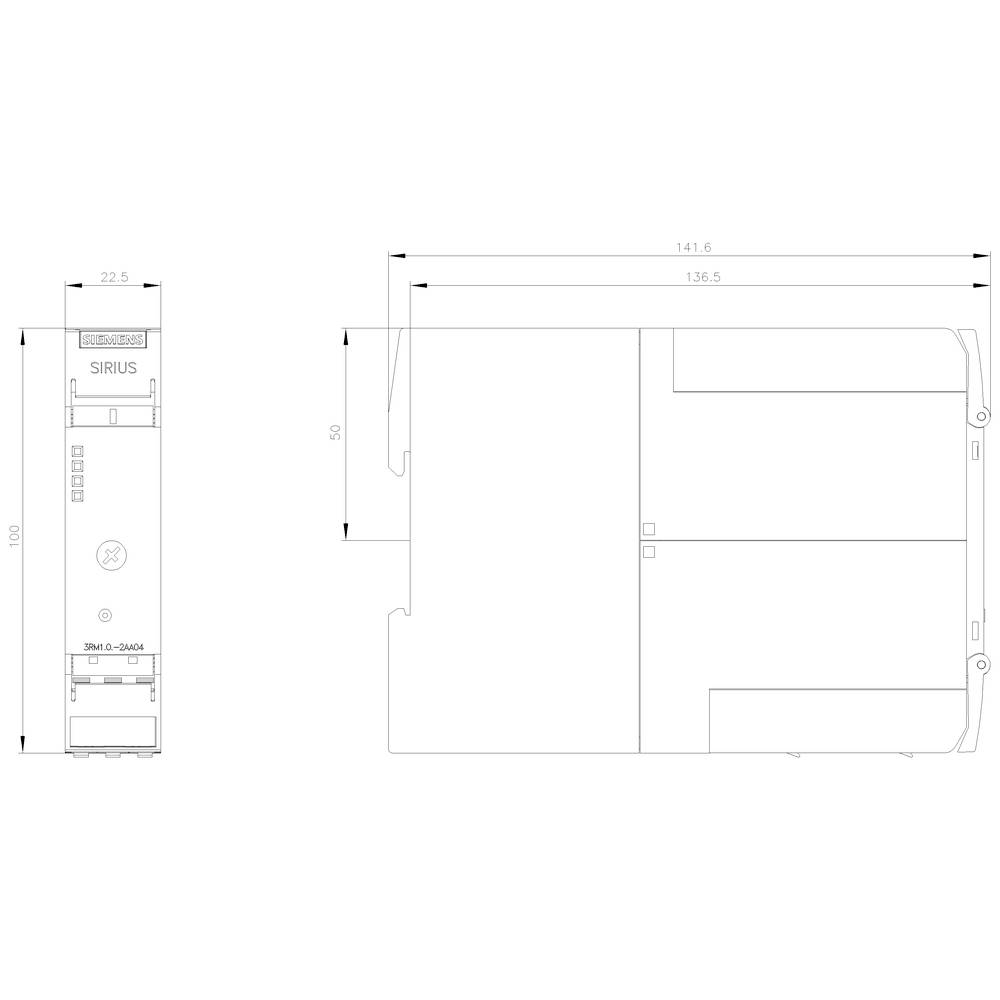

Technical drawing of an electronic component with dimensions: Height 100 mm, Width 22.5 mm, Depth 141.6 mm. Product name 'Sirius' visible.

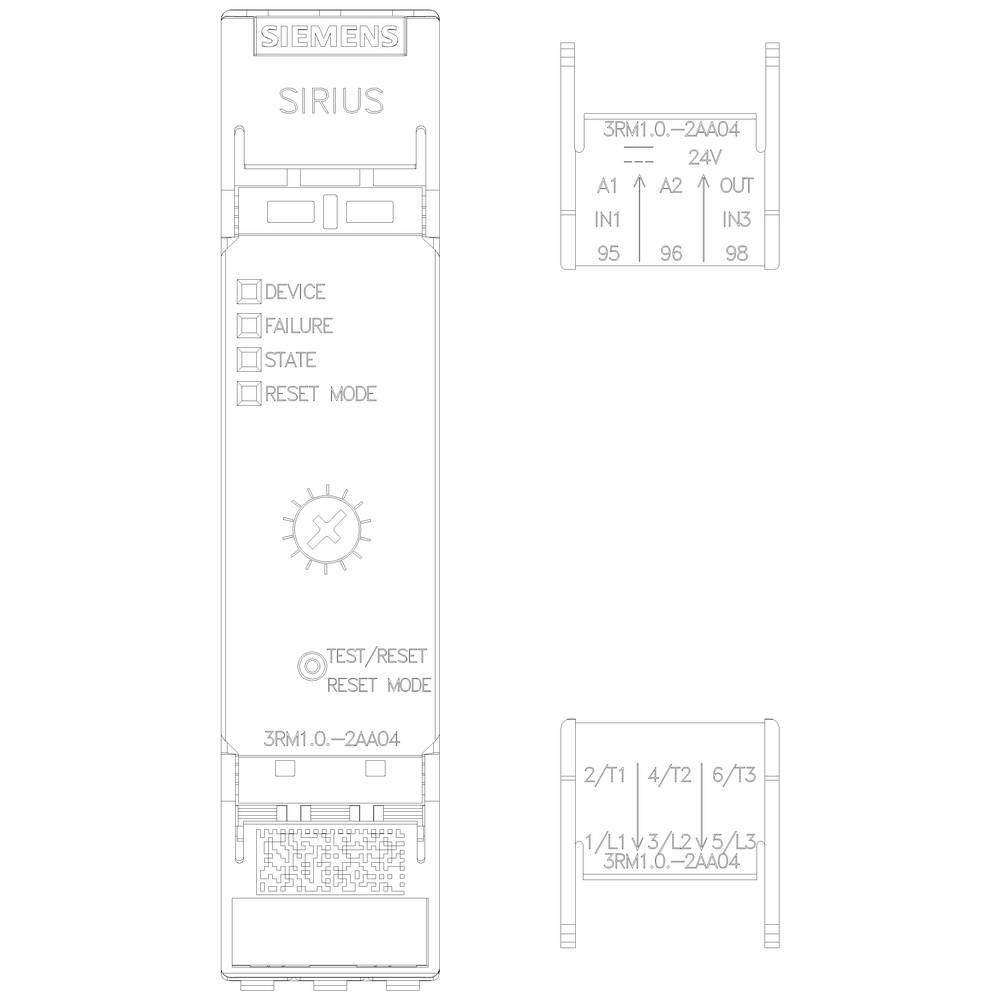

A Siemens switching device named 'SIRIUS'. Displays various operating states: 'DEVICE', 'FAILURE', 'STATE', 'RESET MODE'. Contains inputs and outputs.

1/6

Datasheet (PDF)

Dispatches on Fri, 24 Jul

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 184.87 / piece)

€ 184.87

plus VAT.

Report legal concerns

Highlights & Details

Direct starter, 0.4-2 A, 24 V DC, spring-loaded connection

Multi-functionality: direct and reversing starters, overload protection, safety switch-off
Durable and energy-efficient hybrid switching technology
Small Device variance with wide setting range

Technical specifications

Product type: Direct motor starter

Motor power at 400 V: 0.75 kW

Nominal voltage: 24 V DC

Manufacturer part #: 3RM10022AA04

Nominal current: 2.0 A

Nominal current - rounded value: 2 A

Type: 3RM1002-2AA04

Dim: (W x H x D) 22.5 x 100 x 141.6 mm

Width: 22.5 mm

Height: 100 mm

Depth: 141.6 mm

Max. temperature: 60 °C

Min. temperature: -25 °C

: 0.75 kW

: 22.5

: 100 mm

: 141.6 mm

: FALSE

: 0.75 kW

: 0

: 1

: 1

: FALSE

: 2 A

: 4

: 2-2 A

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: 24-24 V

: IP20

: FALSE

: FALSE

: CLASS 10 A

: FALSE

: FALSE

: Other

: Other

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: FALSE

: DC

: Other

: 0.37 kW

: 0.551624062 kW

: 2 A

: 60 °C

Variants(All information is without VAT, plus shipping costs)

Nominal current - rounded value

Type

Motor power at 400 V

Product type

Nominal voltage

Siemens 3RM1002-2AA04 3RM10022AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Item no:1419896

This article

2 A

3RM1002-2AA04

0.75 kW

Direct motor starter

24 V DC

Siemens 3RM1001-1AA04 3RM10011AA04 Direct motor starter Motor power at 400 V 0.12 kW Motor power at 230 V 1 kW 24 V DC Nominal current 0.5 A

Item no:1419888

500 mA

3RM1001-1AA04

0.12 kW

Direct motor starter

24 V DC

Siemens 3RM1001-1AA14 3RM10011AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419889

500 mA

3RM1001-1AA14

0.12 kW

Direct motor starter

110 V AC230 V AC

Siemens 3RM1001-2AA04 3RM10012AA04 Direct motor starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A

Item no:1419890

500 mA

3RM1001-2AA04

0.12 kW

Direct motor starter

24 V DC

Siemens 3RM1001-2AA14 3RM10012AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419891

500 mA

3RM1001-2AA14

0.12 kW

Direct motor starter

110 V AC230 V AC

Siemens 3RM1001-3AA04 3RM10013AA04 Direct motor starter Motor power at 400 V 0.12 kW 24 V DC Nominal current 0.5 A

Item no:1419892

500 mA

3RM1001-3AA04

0.12 kW

Direct motor starter

24 V DC

Siemens 3RM1001-3AA14 3RM10013AA14 Direct motor starter Motor power at 400 V 0.12 kW 110 V AC, 230 V AC Nominal current 0.5 A

Item no:1419893

500 mA

3RM1001-3AA14

0.12 kW

Direct motor starter

110 V AC230 V AC

Siemens 3RM1002-1AA04 3RM10021AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Item no:1419894

2 A

3RM1002-1AA04

0.75 kW

Direct motor starter

24 V DC

Siemens 3RM1002-1AA14 3RM10021AA14 Direct motor starter Motor power at 400 V 0.75 kW 110 V AC, 230 V AC Nominal current 2.0 A

Item no:1419895

2 A

3RM1002-1AA14

0.75 kW

Direct motor starter

110 V AC230 V AC

Siemens 3RM1002-2AA14 3RM10022AA14 Direct motor starter Motor power at 400 V 0.75 kW 110 V AC, 230 V AC Nominal current 2.0 A

Item no:1419897

2 A

3RM1002-2AA14

0.75 kW

Direct motor starter

110 V AC230 V AC

Documents & Downloads

Datasheet

Datasheet 1419896 Siemens 3RM1002-2AA04 3RM10022AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

User & Safety Instructions

User & Safety Instructions 1419896 Siemens 3RM1002-2AA04 3RM10022AA04 Direct motor starter Motor power at 400 V 0.75 kW 24 V DC Nominal current 2.0 A

Description

Direct starter, 3RM1, 500 V, 0.09 - 0.75 kW, 0.4 - 2 A, 24 V DC, spring-loaded connection SIRIUS 3RM1 direct-on-line starters for operational switching of three-phase motors.
Narrow width, multifunctional, with electronic overload protection, long-lasting and energy-efficient hybrid switching technology, low device variance through wide adjustment range, easy mounting through lower wiring expenditure, fast error diagnosis through LED-display, innovative housing concept e.g. with labeled cover flaps and removable connection clamps.
Available as direct or reversing starters with either ATEX certification and safety-related shutdown, with various motor current ranges, supply voltage types and connection techniques.
Extensive accessories such as device connectors, fuse module, infeed system or sealable covers round off the system.
Starting in confined spaces - SIRIUS 3RM1 motor starters.
