Name: Siemens 3RT2024-2FB40 Electrical contactor 3 makers 5.5 kW 690 V AC + diode Compatible with (relay brand): Siemens 1 pc(
Brand: Siemens
SKU: 1747044
Availability: BackOrder

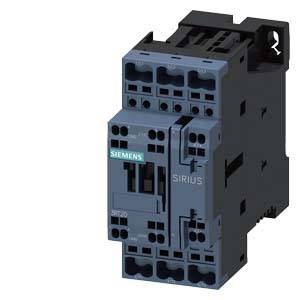

A Siemens contactor of the Sirius type in a grey enclosure. It is used for controlling electrical currents in industrial applications.

An open electrical cabinet with electronic components on the left, positioned in front of a window with raindrops. Behind it, a machine is blurred in the background.

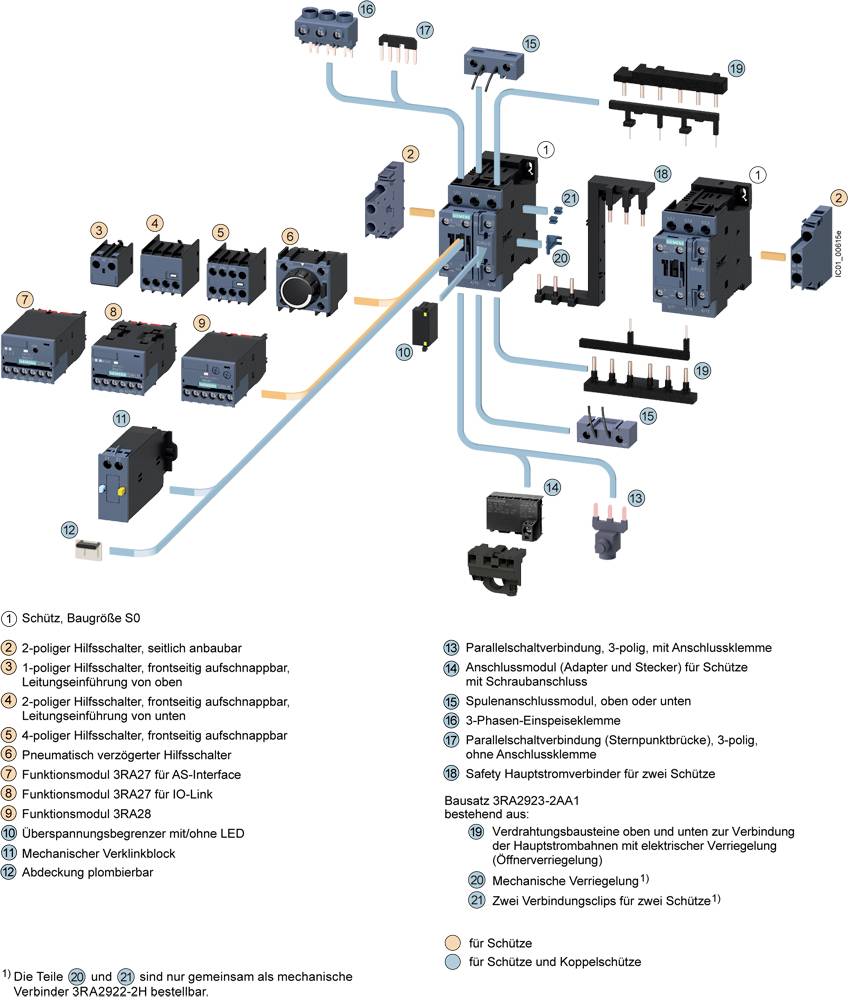

Diagram of an electrical circuit with contactor (3RA2). Numbered parts with designation and function, e.g. accessories and terminals.

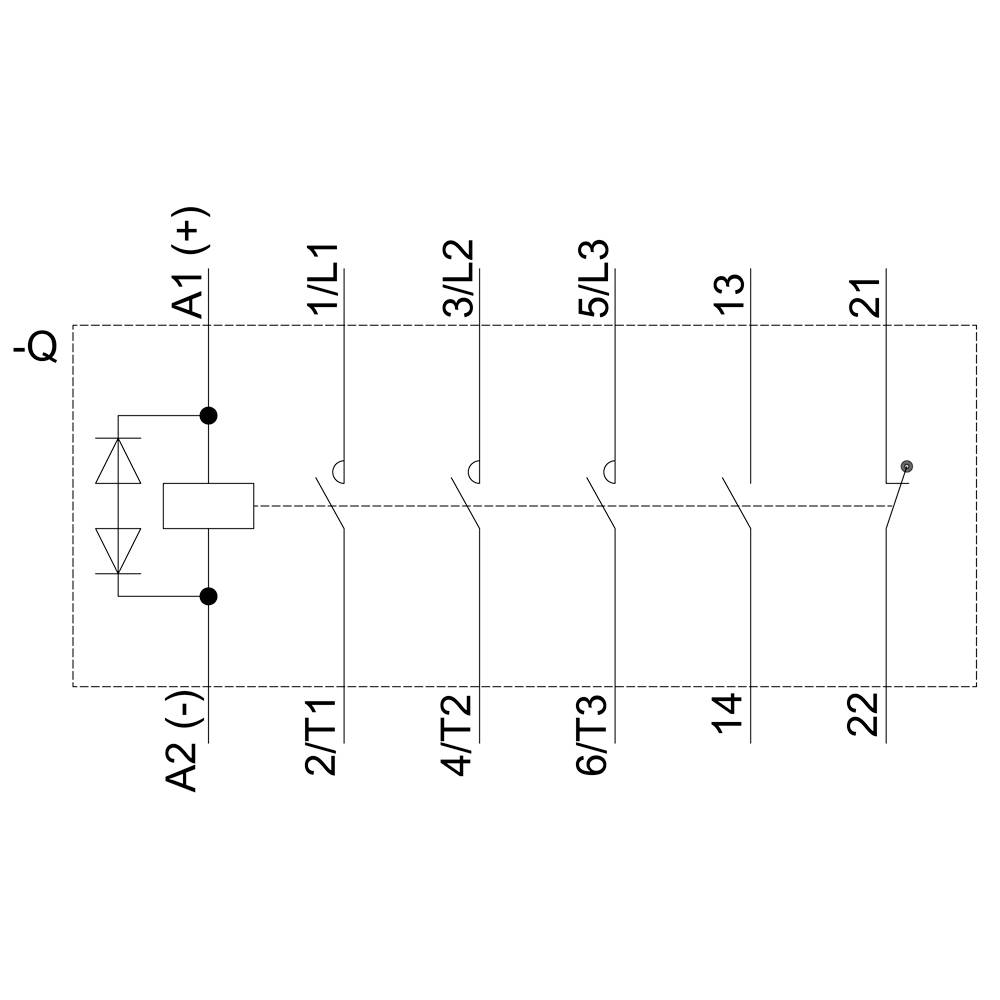

'Circuit diagram: Two diodes connected in parallel at the top left. To the right, six vertical circuit lines, numbered 1 to 14, 21 to 22.'

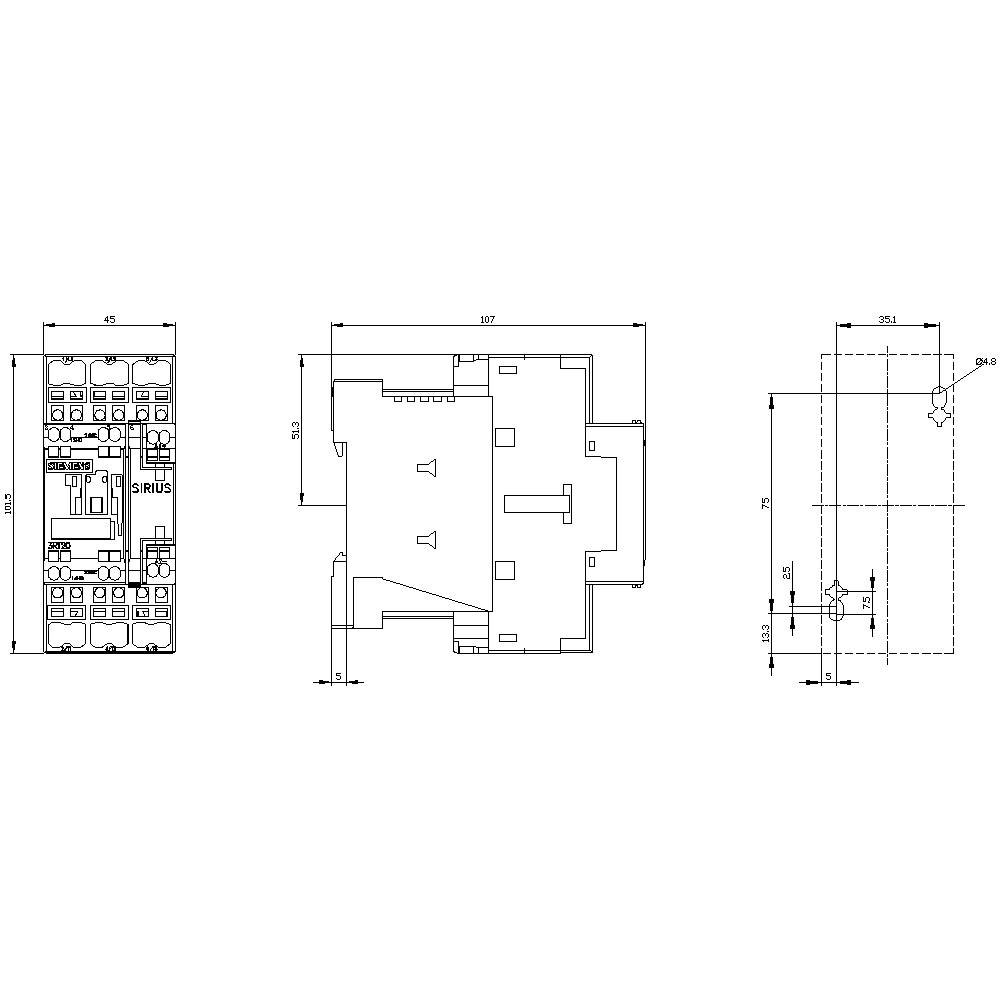

Technical drawing of a rectangular device with detailed dimensions and views from three sides. Labels show scales and proportions.

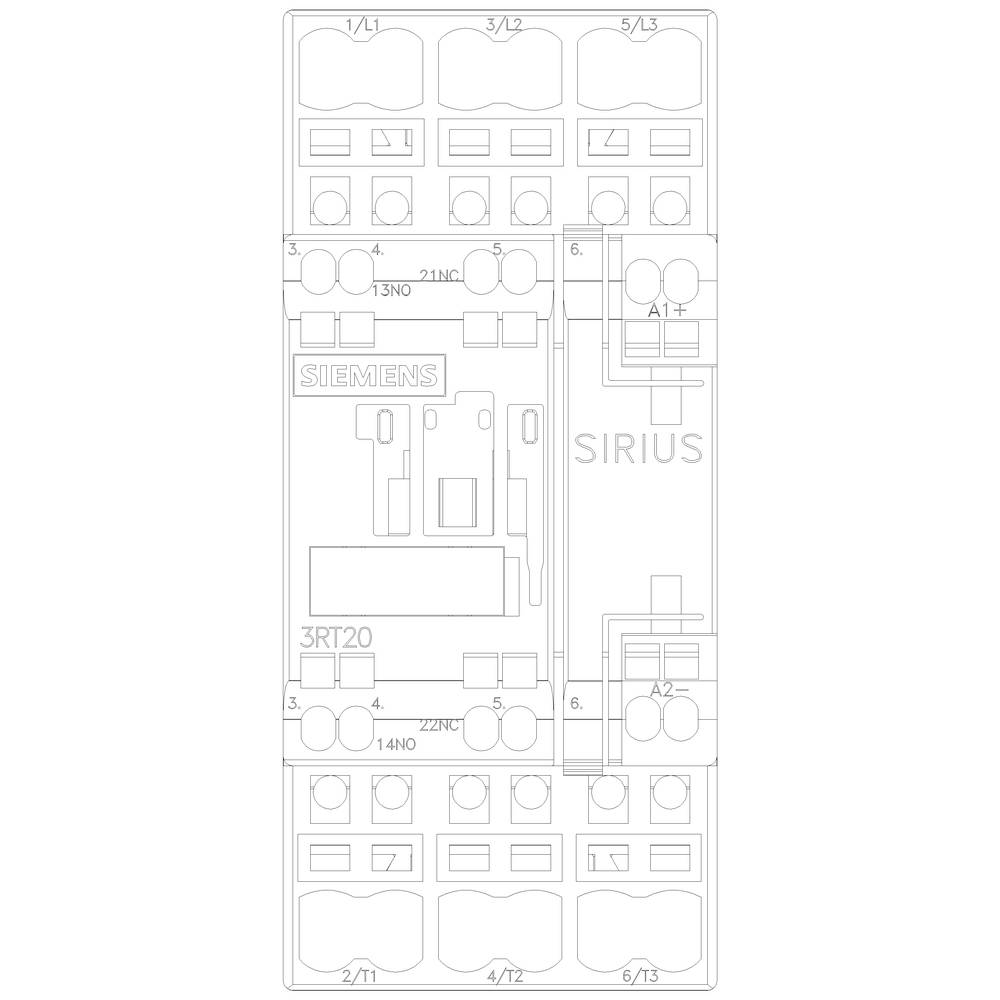

Diagram of a Siemens SIRIUS contactor with connection points and labels: Main contacts (1L+, 3L+, 5L+), Control contacts (A1+, A2-).

1/6

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

5.5 kW

Connection

Spring-loaded connector

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for fine-wire: 6 mm²

Product type: Electrical contactor

Type: 3RT2024-2FB40

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 24 V DC

Control voltage (max.): 24 V DC

Control voltage range: 24 - 24 V DC

Switching voltage (max.): 690 V AC

Permanent current (max.): 12 A

: 5.5 kW

Compatible with: Siemens

Compatible with series: Siemens S0 type

Features: + diode

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 102 mm

Depth: 107 mm

Dim: (W x H x D) 45 x 102 x 107 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 5.5 kW

: 3

: 1

: 1

: 12 A

: 40 A

: Spring clamp connection

: DC

: 12.5 A

: 5.516240625

UKCA: yes
