Siemens 3RT2026-1AB00 Contactor 3 makers 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
Contactor
No. of pins
3-pin
Nominal voltage
690 V AC
Connection
Screws
Type
3RT2026-1AB00
Datasheet (PDF)
Technical specifications
- Type of voltage: AC
- Conductor cross-section single or multi-strand: 10 mm²
- Conductor cross-section for finely-stranded: 10 mm²
- Product type
Contactor
- Type
3RT2026-1AB00
- Type
S0
- No. of pins
3-pin
- Contact type
3 makers
- Nominal voltage
690 V AC
- Mounting type
Snap-in
Screw-fit
- Connection
Screws
- Durability
1000 0000
IP20
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
45 mm
- Height
85 mm
- Depth
97 mm

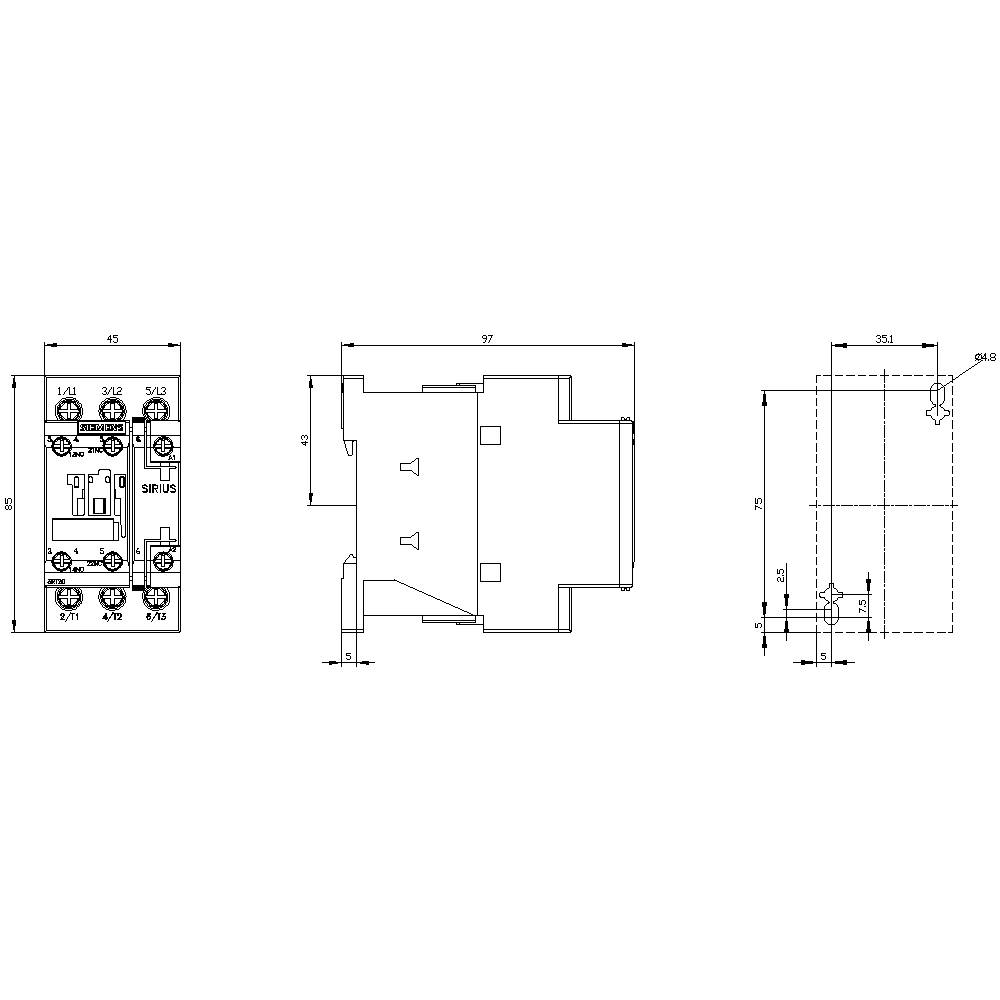

- Dim
(W x H x D) 45 x 85 x 97 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
TRUE
11 kW
3
1
1
25 A
40 A
24-24 V
Screw connection
AC
15.5 A
11.032
Variants(All information is without VAT, plus shipping costs)
Nominal voltage
Siemens 3RT2026-1AB00 Contactor 3 makers 690 V AC 1 pc(s)
This article
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 63.86*
Siemens 3RT2025-1BB40 Contactor 3 makers 7.5 kW 24 V DC 17 A + auxiliary contact 1 pc(s)
24 V DC
Minimum order quantity: 1
Multiple: 1
€ 130.24*
Siemens 3RT2025-1AP00 Contactor 3 makers 7.5 kW 230 V AC 17 A + auxiliary contact 1 pc(s)
230 V AC
Minimum order quantity: 1
Multiple: 1
€ 77.30*
Siemens 3RT2026-1AK60-0UA0 Contactor 3 makers 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 121.84*
Siemens 3RT2025-1AL20 Contactor 3 makers 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 88.23*
Siemens 3RT2025-1BB44-3MA0 Contactor 3 makers 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 159.66*
Siemens 3RT2025-1CL24-3MA0 Contactor 3 makers 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 126.04*
Siemens 3RT2025-1FB44-3MA0 Contactor 3 makers 7.5 kW 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 176.46*
Siemens 3RT2025-1AP04 Contactor 2 makers 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 113.44*
Siemens 3RT2025-2BB40 Contactor 3 makers 690 V AC 1 pc(s)
690 V AC
Minimum order quantity: 1
Multiple: 1
€ 113.44*
Documents & Downloads
Datasheet
Datasheet 1739880 Siemens 3RT2026-1AB00 Contactor 3 makers 690 V AC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1739880 Siemens 3RT2026-1AB00 Contactor 3 makers 690 V AC 1 pc(s)
Description
power contactor, AC-3 12 A, 5.5 kW / 400 V 2 NO + 2 NC, 230 V AC 50 / 60 Hz, with plugged-on varistor, 3-pole Size S00, screw terminal Captive auxiliary switch for SUVA applications
Frequently Bought Together
(*All information is plus legal VAT)Total price:
€ 97.46*
What kind of Contactors are you looking for?

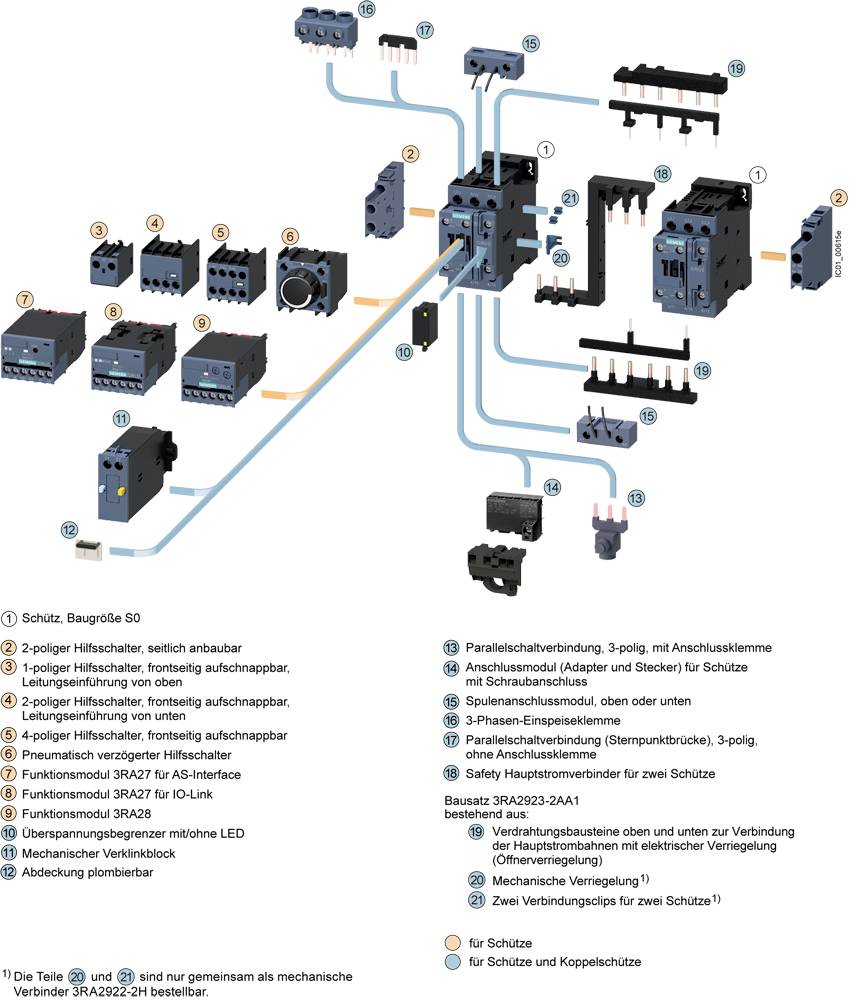

Accessories
