Automation & PneumaticsAutomationElectrical Switching ComponentsContactors

Siemens 3RT2036-1SP30 Electrical contactor 22 kW + varistor Compatible with (relay brand): Siemens Piece 1 pc(s)

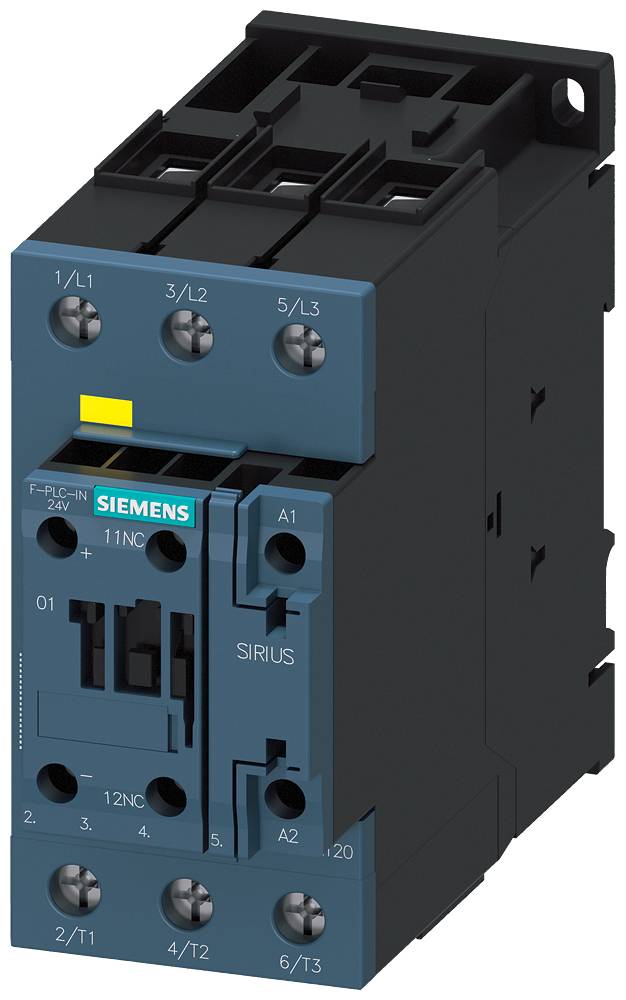

Electrical contactor with Siemens logo and labelling. Main components: coil contacts and screw connections for use in control cabinets.
An open electrical cabinet beside a damp window reveals technical equipment with cables and switches in an industrial setting.

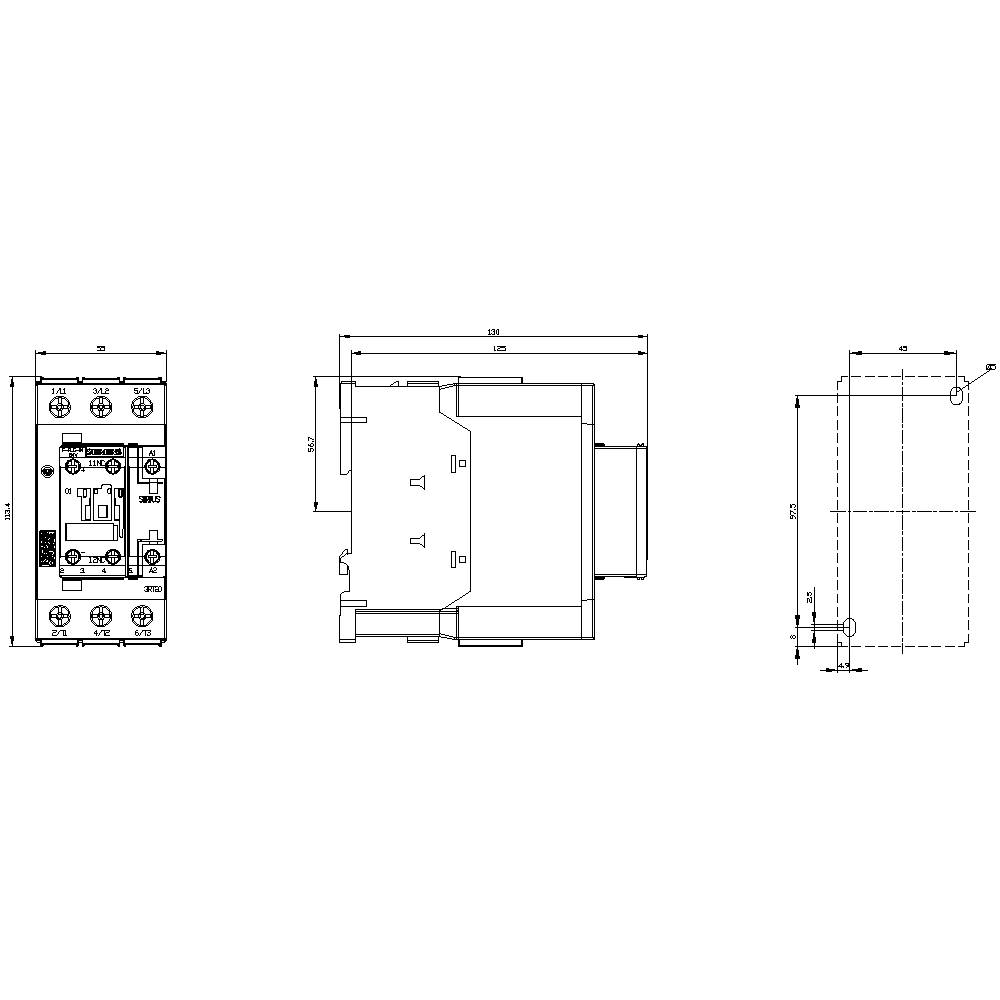

Technical drawing of a device with dimensions. Front view, side view, and top view with detailed measurements.

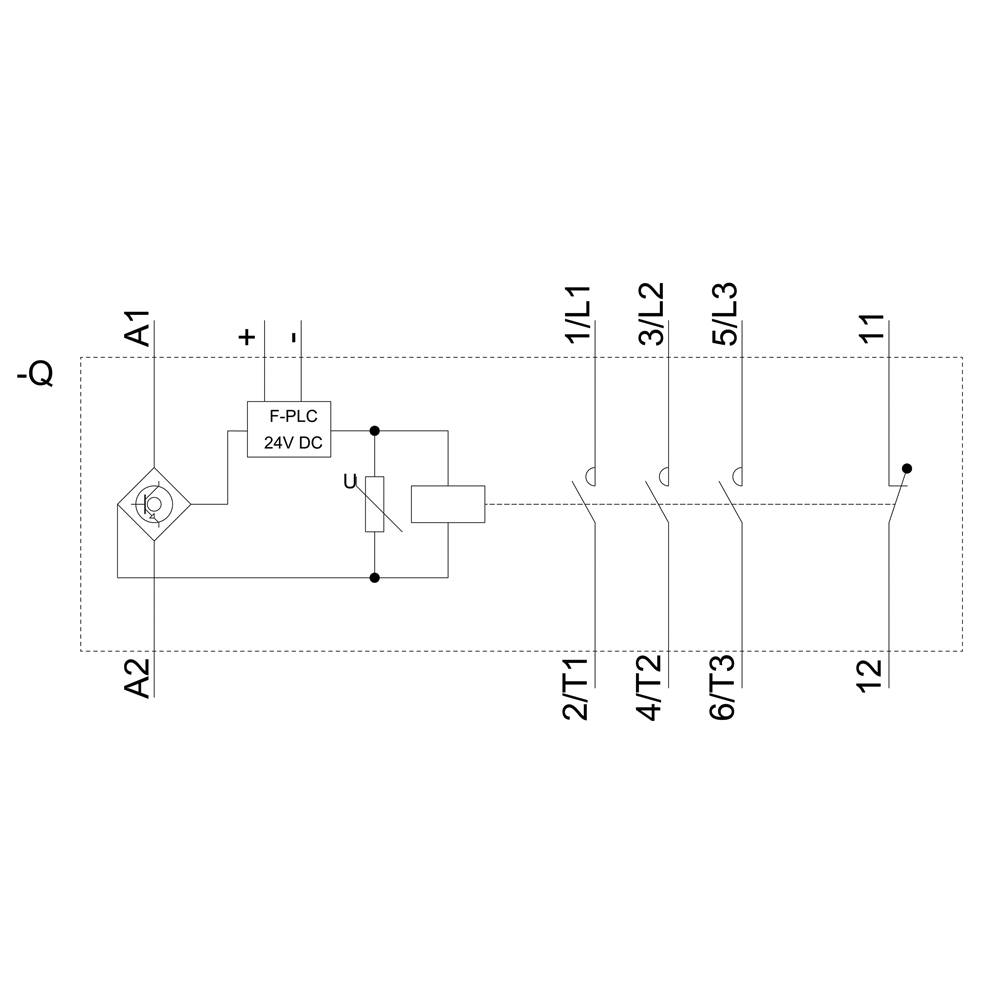

'Circuit diagram of an F-PLC with 24V DC. Shows connections A1, A2, 1L1, 3L2, 5L3, 2/T1, 4/T2, 6/T3, and 11, 12.'
1/4
Image similar
Product type
Electrical contactor
No. of pins
3-pin
Power
22 kW
Packaging type
Piece
Type
3RT2036-1SP30
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

Sluice, AC-3e, 51A/400V, 3-pin, AC/DC 175-280V, F-PLC-IN, 1O, SCREW CONNECTION

Our service for you

Technical specifications

Packaging type

Piece

Product type

Electrical contactor

Type

3RT2036-1SP30

Type

S2

No. of pins

3-pin

Auxiliary contact type

1 breaker

Switching voltage (max.)

400 V AC

Permanent current (max.)

51 A

22 kW

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Features

+ varistor

Content

1 pc(s)

RoHS-compliant

Yes

22 kW

3

0

1

51 A

70 A

Screw connection

AC/DC

41 A

29.41995

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2871806 Siemens 3RT2036-1SP30 Electrical contactor 22 kW + varistor Compatible with (relay brand): Siemens Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2871806 Siemens 3RT2036-1SP30 Electrical contactor 22 kW + varistor Compatible with (relay brand): Siemens Piece 1 pc(s)

Description

Power protection, AC-3e/AC-3, 51 A, 22 kW / 400 V, 3-pin, AC/DC 175-280 V, 50/60 Hz, with integrated varistor, Auxiliary contacts:1 NC, screw terminal, F-PLC-IN
