Name: Siemens 3RT2038-1SP30 Electrical contactor + varistor Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 2871818

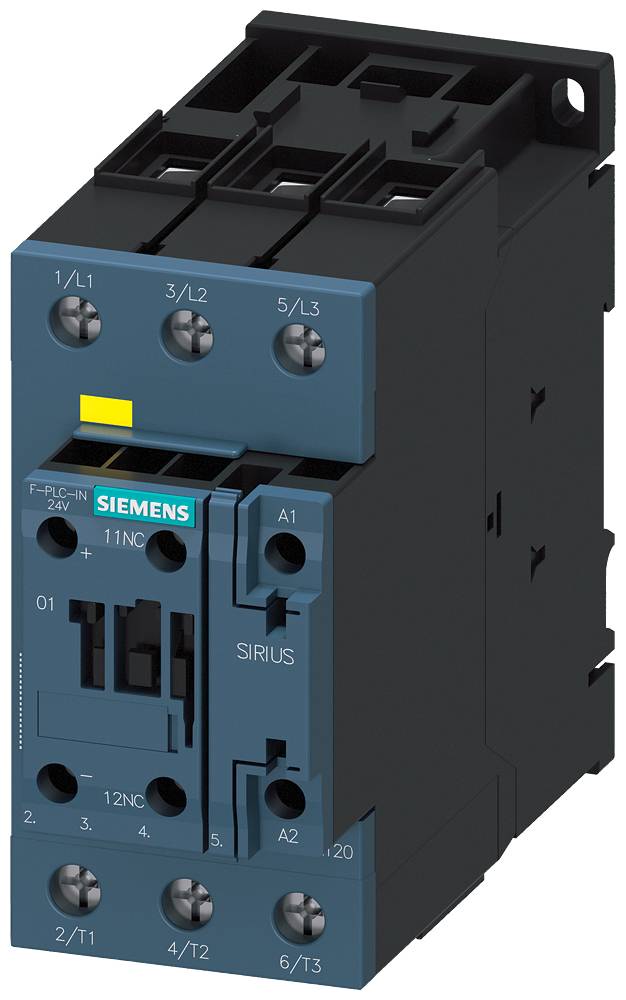

Siemens electrical contactor, Sirius model, with multiple connection terminals at the top and bottom, suitable for industrial control applications.

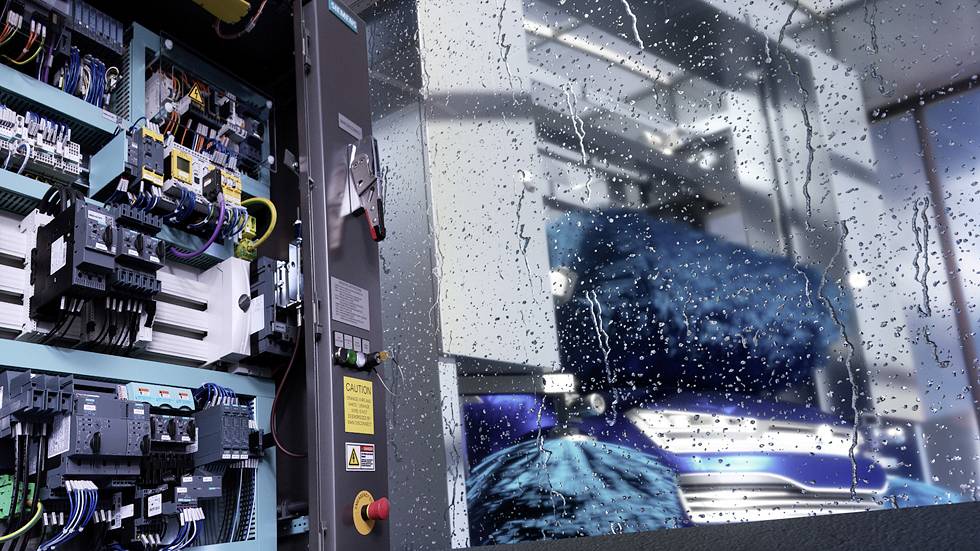

Electrical control cabinet in a factory environment. View of machinery through a window with water droplets. Industrial atmosphere.

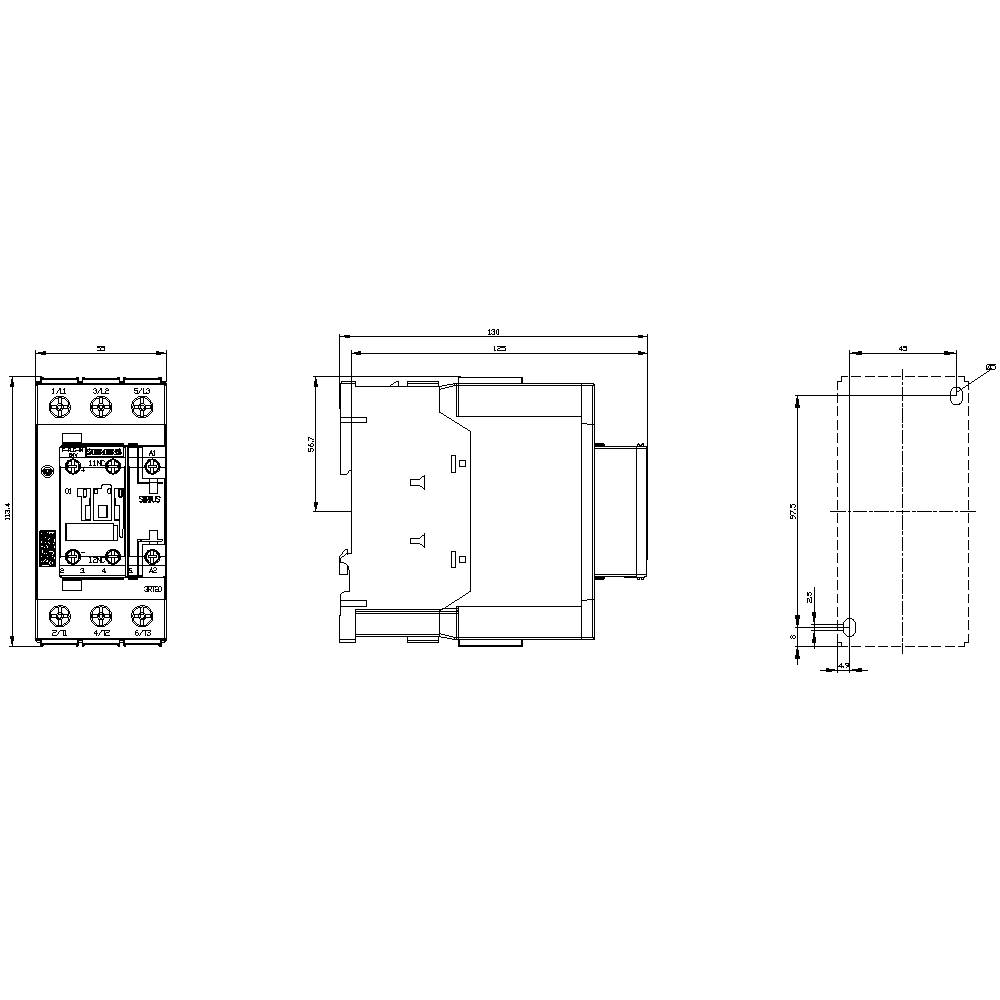

Technical drawing of a mechanical component with top view, side view, and cross-sectional view. Includes dimensional specifications in millimetres.

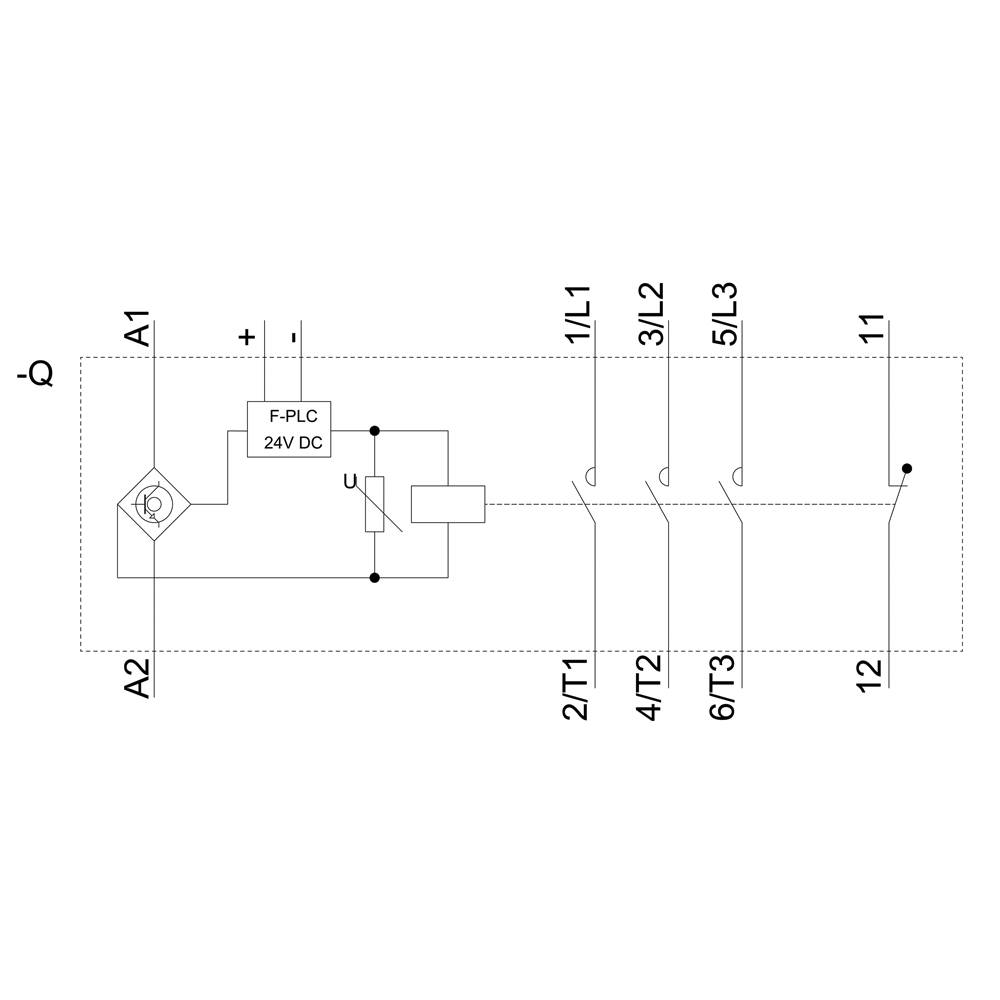

'Circuit diagram of a safety relay with F-PLC 24V DC control, connection points A1, A2, 1/L1, 2/T1, 3/L2, 4/T2, 5/L3, and 6/T3 marked.'

1/4

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Type

3RT2038-1SP30

Type

Auxiliary contact type

1 breaker

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Contactor, AC-3e, 80A/400V, 3-pole, AC/DC 175-280V, F-PLC-IN, 1O, SCREW CONNECTION

Our service for you

Technical specifications

Product type: Electrical contactor

Type: 3RT2038-1SP30

Type: S2

No. of pins: 3-pin

Auxiliary contact type: 1 breaker

Control voltage (min.): 175 V AC

Control voltage (max.): 280 V AC

Control voltage range: 175 - 280 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 80 A

Compatible with: Siemens

Compatible with series: Siemens S2 type

Features: + varistor

Content: 1 pc(s)

RoHS-compliant: Yes

: 37 kW

: 3

: 0

: 1

: 80 A

: 90 A

: Screw connection

: AC/DC

: 55 A

: 36.7749375

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2871818 Siemens 3RT2038-1SP30 Electrical contactor + varistor Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2871818 Siemens 3RT2038-1SP30 Electrical contactor + varistor Compatible with (relay brand): Siemens 1 pc(s)

Description

Power protection, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pin, AC/DC 175-280 V, 50/60 Hz, with integrated varistor, Auxiliary contacts:1 NC, screw terminal, F-PLC-IN

This text is machine translated.

Description

Power protection, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pin, AC/DC 175-280 V, 50/60 Hz, with integrated varistor, Auxiliary contacts:1 NC, screw terminal, F-PLC-IN

This text is machine translated.
