Name: Siemens 3RV2021-1JA25 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (
Brand: Siemens
SKU: 1699147
Availability: BackOrder

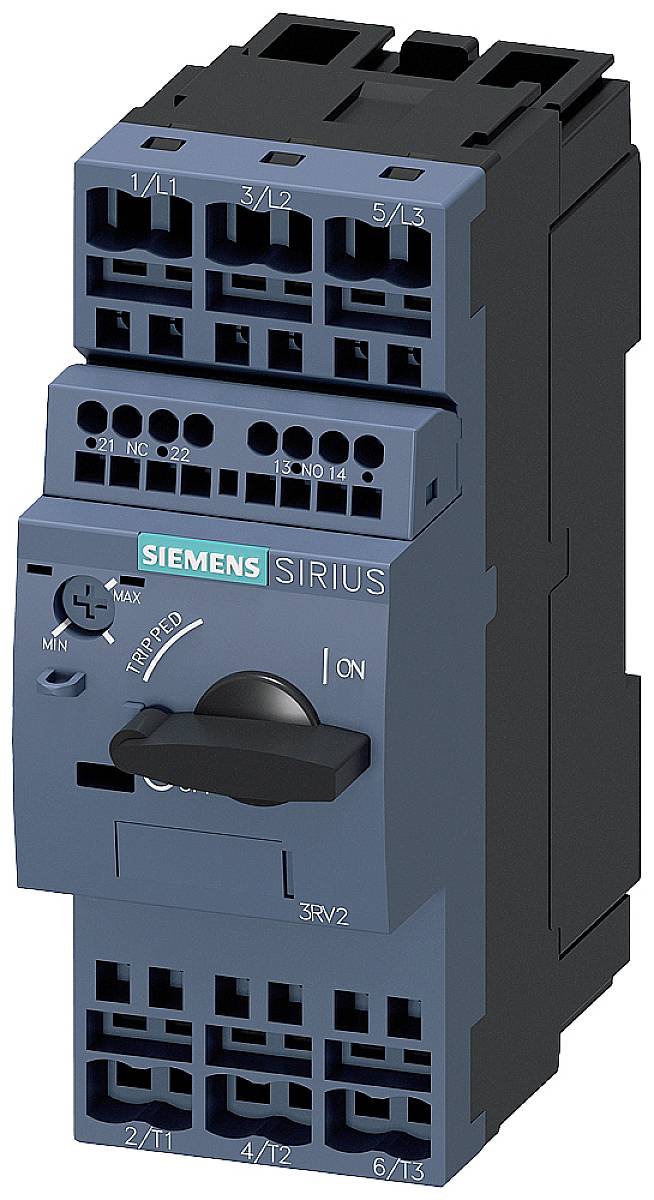

Siemens electric power switch, Sirius model, with multiple connection terminals and a rotary switch for turning on and off.

'An open electrical cabinet with electronic components and cables. In the background, a window with raindrops, showing a blurred industrial facility outside.'

'Mounting Accessories for Circuit Breakers 3RV2': Overview of Component Groups, e.g. Transverse Auxiliary Switch (1), Undervoltage Release Block (3).

'Circuit diagram with fuses, controllers and switching elements in three phases (L1, L2, L3) with on/off symbols.'

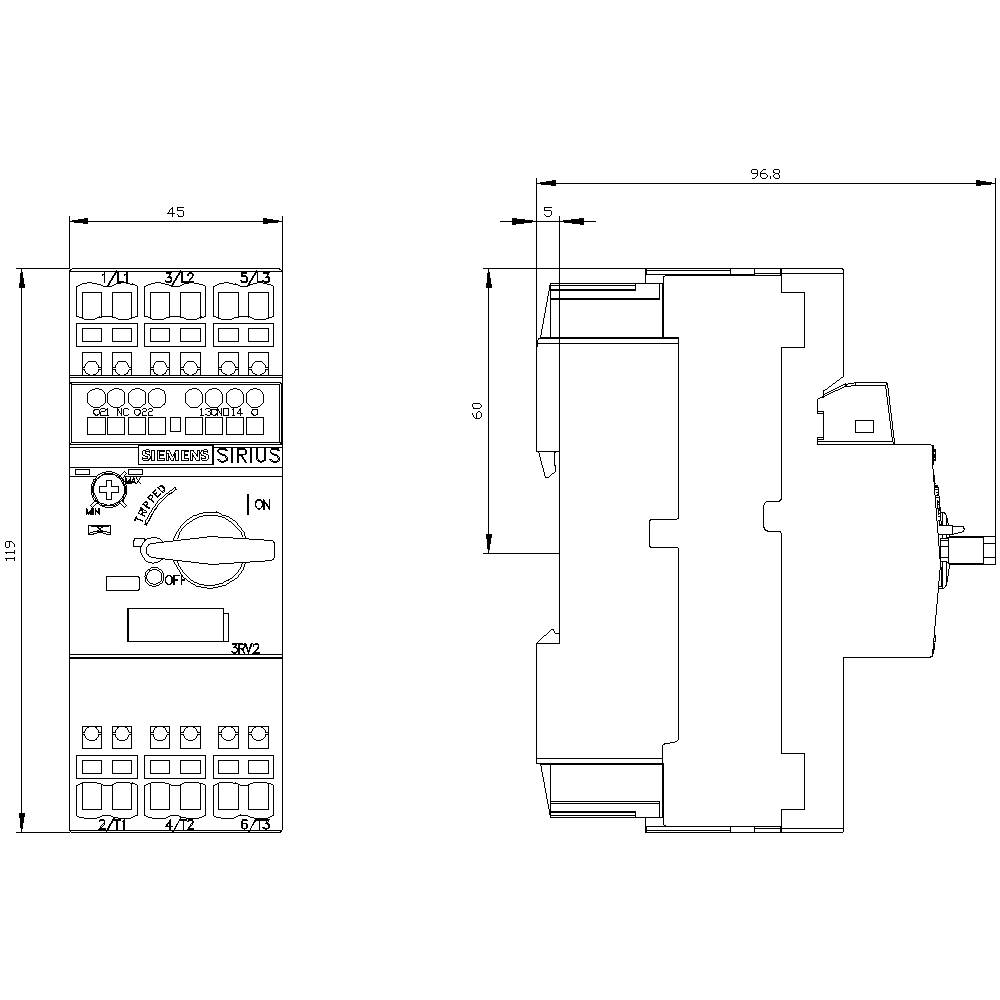

Technical drawing of an electrical switch with dimensions. Front and side view, switch button in the centre marked with 'ON'.

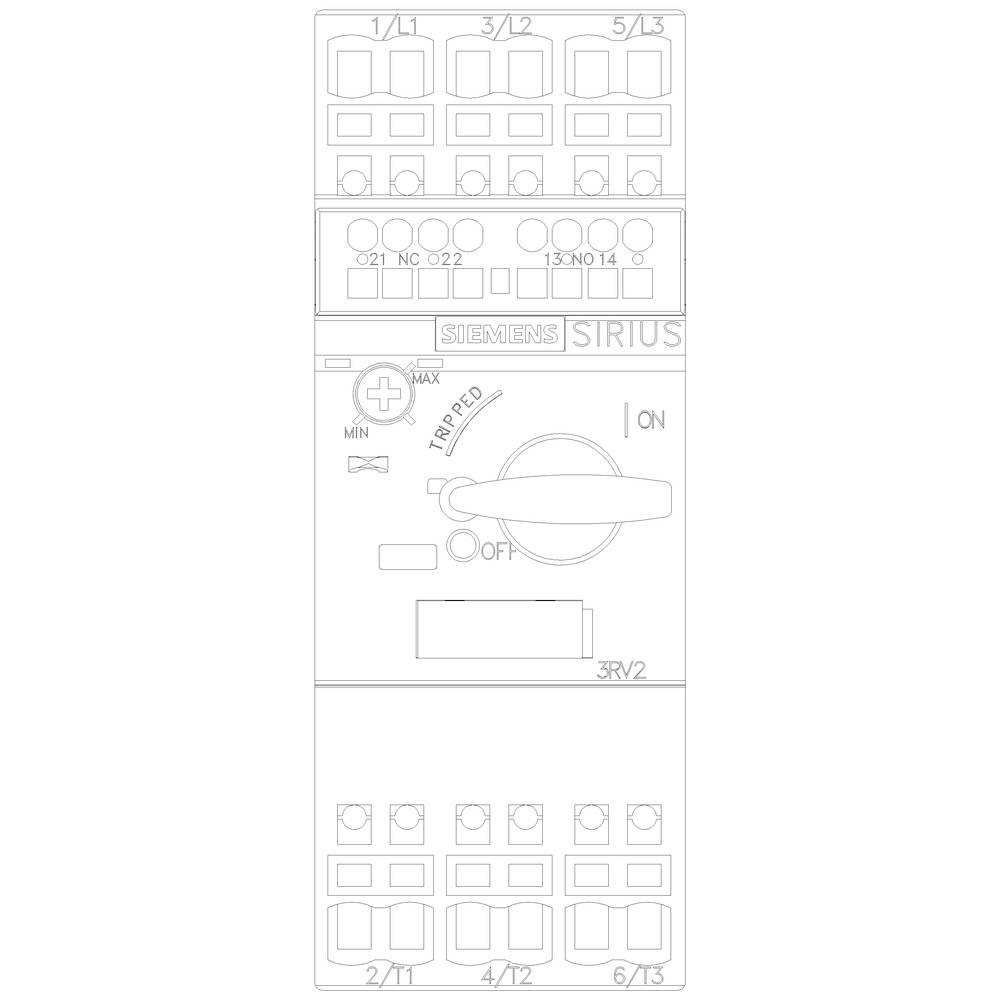

The image shows the front of a Siemens SIRIUS switch, model '3RV2'. It includes terminals and a switch with the positions 'TRIPPED', 'OFF' and 'ON'.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

10 A

Connection

Spring-loaded connector

Packaging type

Piece

Type

3RV2021-1JA25

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

RCCB

Our service for you

Technical specifications

Continuous current: 10 A
Mechanical life of main contacts: 100,000 switching cycles
Max. Conductor cross-section (solid or stranded): 10 mm²
Max. Conductor cross-section (fine): 6 mm²

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2021-1JA25

Type: S0

Amperage adjustment range (min.): 7 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7 - 10 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: Snap-in
Screw-fit

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded connector

: IP20

Depth: 97 mm

Width: 45 mm

Height: 119 mm

Dim: (W x H x D) 45 x 119 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 45

: 119 mm

: 97 mm

: 4 kW

: TRUE

: 10 A

: FALSE

: 3

: 690-690 V

: 7-10 A

: IP20

: TRUE

: Spring clamp connection

: Turn button

: Magnetic

: 2.2 kW

: 100 kA

: TRUE

: Built-in device fixed built-in technique

UKCA: not relevant
