Name: Siemens 3RV2411-0AA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V
Brand: Siemens
SKU: 1738943
Availability: BackOrder

A grey Siemens switch with a lever, marked 'ON', and multiple terminal connections at the top and bottom, suitable for industrial applications.

An electrically open electrical cabinet with wired components, with a rain-streaked window and an industrial machine in the background.

'Diagram shows mounting accessories for circuit breakers, including auxiliary switches, signalling switches, isolator buttons, terminal blocks.'

Circuit diagram of a three-phase power switch with three switching elements. Connections: 1/L1 to 2/T1, 3/L2 to 4/T2, 5/L3 to 6/T3.

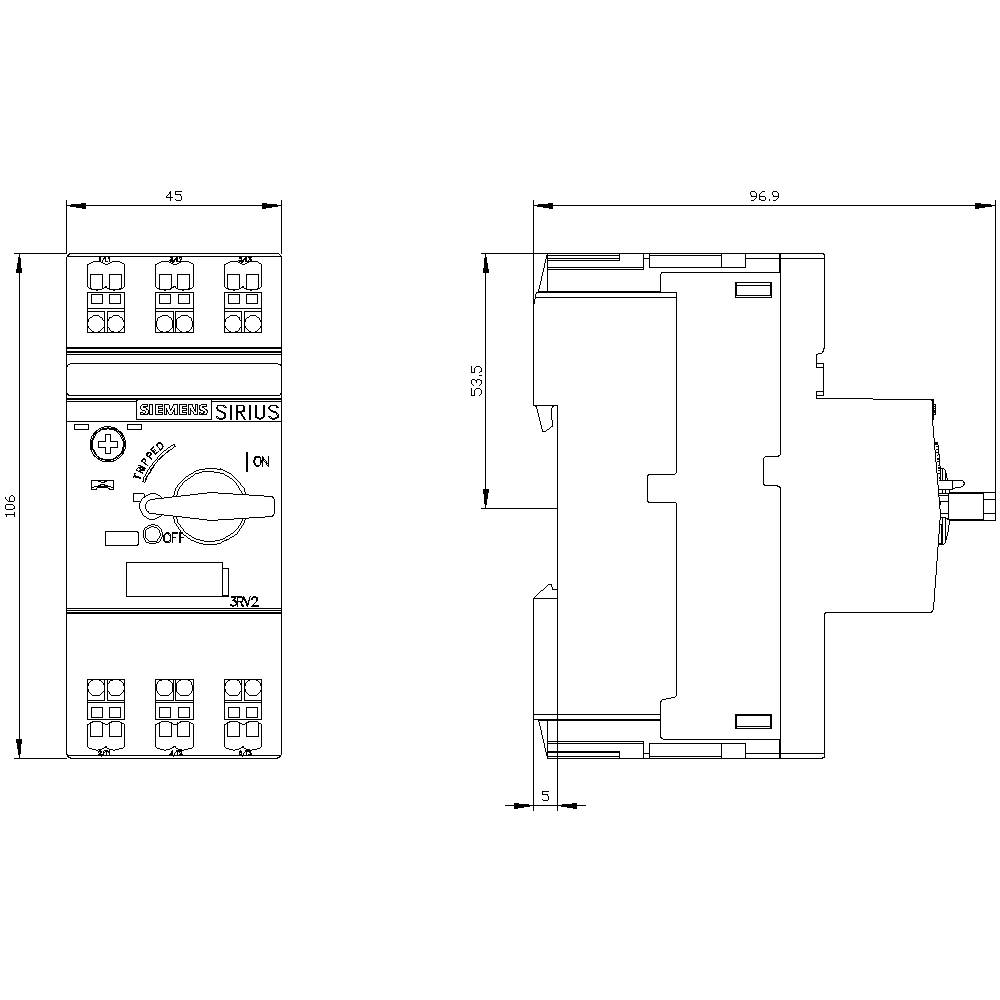

Technical drawing of a switch, labelled 'SIRIUS', with dimensions: height 106 mm, width 45 mm, depth 96.9 mm. Left front view, right side view.

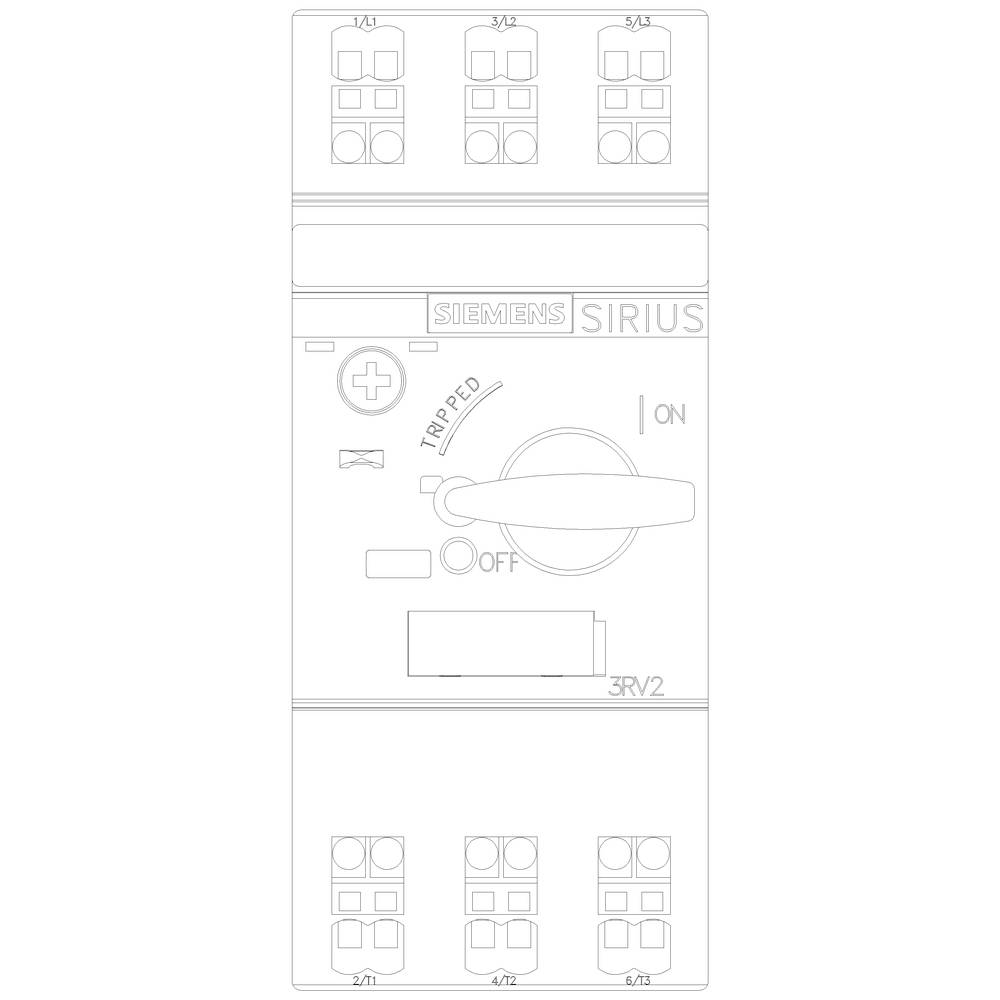

'Siemens Sirius switch, in 'OFF' position. Connection terminals visible at top and bottom. Labelled 'TIPPED' and '3RV2'.'

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

0.16 A

Connection

Spring-loaded terminal

Packaging type

Piece

Type

3RV2411-0AA20

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: for transformer protection
Weight: 0,297 kg
Mechanical life: 100000
Electrical life: 100000
Power loss: 5 W
Mains frequency: 50/60 Hz.

Packaging type: Piece

Product type: Circuit breaker

Type: 3RV2411-0AA20

Type: S00

Amperage adjustment range (min.): 0.11 A

Amperage adjustment range (max.): 0.16 A

Adjustment range (amperage): 0.11 - 0.16 A

Current load: 0.16 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Compatible with series: Siemens Sirius series

Compatible with: Siemens

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded terminal

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 0.16 A

: 3

: 0

: IP20

: Other

: FALSE

: Spring clamp connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Amperage adjustment range (max.)

Amperage adjustment range (min.)

Packaging type

Siemens 3RV1011-0AA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745448

Dispatches on Tue 10 Nov

Conrad Electronic

0.16 A

0.11 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-0AA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745449

Dispatches on Tue 10 Nov

Conrad Electronic

0.16 A

0.11 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0BA10 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745450

Dispatches on Tue 10 Nov

Conrad Electronic

0.2 A

0.14 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RV1011-0BA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.14 - 0.2 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm

Item no:1745452

Dispatches on Tue 10 Nov

Conrad Electronic

0.2 A

0.14 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0CA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.18 - 0.25 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745453

Dispatches on Tue 10 Nov

Conrad Electronic

0.25 A

0.18 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0DA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.22 - 0.32 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745454

Dispatches on Tue 10 Nov

Conrad Electronic

0.32 A

0.22 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0EA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.28 - 0.4 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745455

Dispatches on Tue 10 Nov

Conrad Electronic

0.4 A

0.28 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0FA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.35 - 0.5 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Single

Item no:1745456

Dispatches on Tue 10 Nov

Conrad Electronic

0.5 A

0.35 A

Single

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Siemens 3RV1011-0GA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.45 - 0.63 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745457

Dispatches on Tue 10 Nov

Conrad Electronic

0.63 A

0.45 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 119.99^*

Siemens 3RV1011-0HA15 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.55 - 0.8 A Switching voltage (max.): 690 V AC (W x H x D) 45 x 90 x 75 mm Piece

Item no:1745458

Dispatches on Tue 10 Nov

Conrad Electronic

0.8 A

0.55 A

Piece

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 124.99^*

Documents & Downloads

Datasheet

Datasheet 1738943 Siemens 3RV2411-0AA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V

User & Safety Instructions

User & Safety Instructions 1738943 Siemens 3RV2411-0AA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 0.11 - 0.16 A Switching voltage (max.): 690 V

Description

Circuit breaker size S0 for motor protection, CLASS 10 A-release 17...22 A N-release 286 A screw terminal Switching capacity 30 kA at 600 V according to UL/CSA

Description

Circuit breaker size S0 for motor protection, CLASS 10 A-release 17...22 A N-release 286 A screw terminal Switching capacity 30 kA at 600 V according to UL/CSA
