Name: Siemens 3RV2411-1JA20 Circuit breaker 1 pc(s) Adjustment range (amperage): 7 - 10 A Switching voltage (max.): 690 V AC (
Brand: Siemens
SKU: 1740459
Availability: BackOrder

A black, rectangular electrical switch with the inscription 'Siemens SIRIUS'. The switch is in the 'on' position.

A cupboard with electronic components, beside a rain-soaked window with a view of a blurred, blue object in the background.

Diagram shows mounting accessories for circuit breakers with numbering. Components: Auxiliary switch (side-mounted, transverse), indication contacts, separator, terminal blocks.

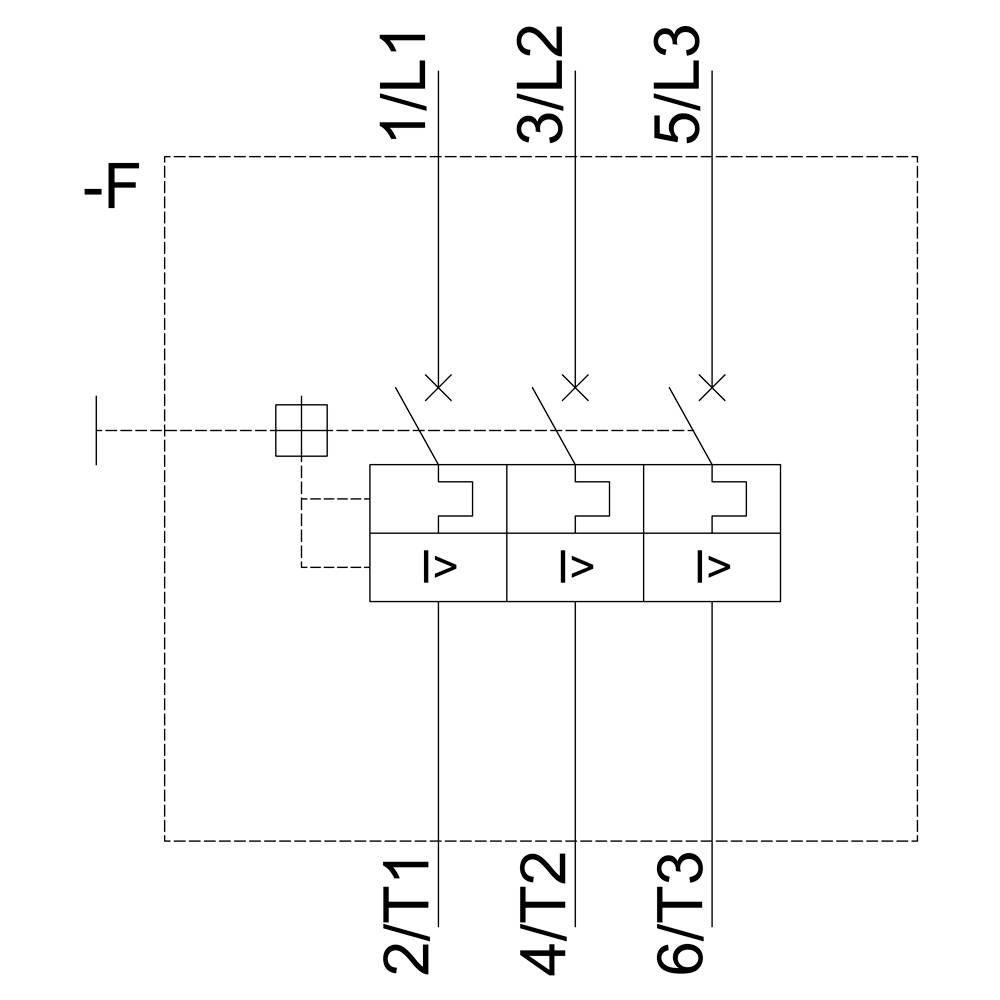

Circuit diagram of a three-phase contactor with three circuits, labelled 'L1', 'L2', 'L3' for inputs and 'T1', 'T2', 'T3' for outputs.

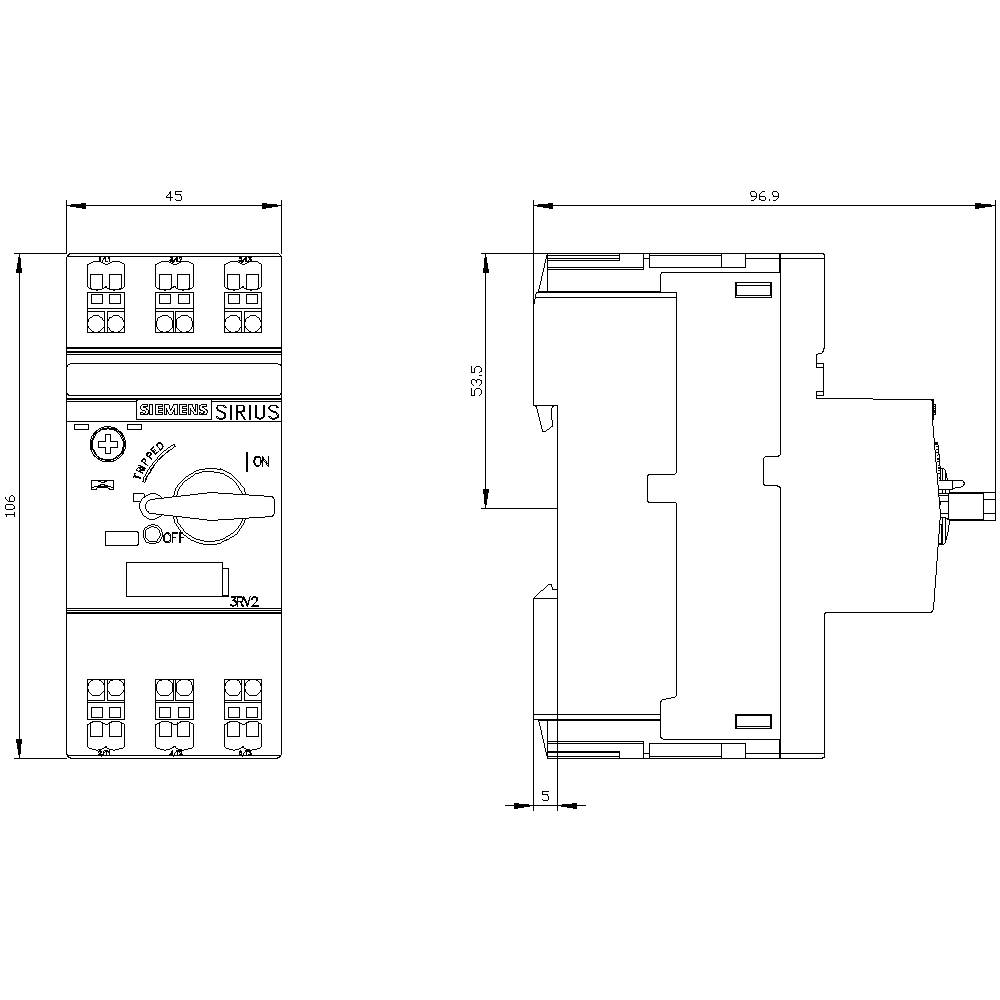

Technical drawing of a switching device with front and side view, dimensions in millimetres, labelled 'SIRIUS'.

1/6

Image similar

Product type

Circuit breaker

Amperage adjustment range (max.)

10 A

Connection

Spring-loaded terminal

Type

3RV2411-1JA20

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 124.99 / piece)

€ 124.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design: for transformer protection
Weight: 0,378 kg
Mechanical life: 100000
Electrical life: 100000
Power loss: 7 W
Mains frequency: 50/60 Hz.

Product type: Circuit breaker

Type: 3RV2411-1JA20

Type: S00

Amperage adjustment range (min.): 7 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7 - 10 A

Current load: 10 A

No. of pins: 3-pin

Switching voltage (max.): 690 V AC

Mounting type: DIN rail

Min. temperature: -20 °C

Max. temperature: +60 °C

Features: + auxiliary contact

Connection: Spring-loaded terminal

: IP20

Depth: 97 mm

Width: 45 mm

Height: 106 mm

Dim: (W x H x D) 45 x 106 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 0

: 0

: 10 A

: 3

: 7-10 A

: 0

: 20-690 V

: IP20

: Other

: FALSE

: Spring clamp connection

: Toggle

: FALSE

: 100 kA

: TRUE

: FALSE

: FALSE

: Built-in device fixed built-in technique

UKCA: yes
