Name: Siemens 3RW3016-2BB04 3RW30162BB04 Soft starter Motor power at 400 V 4 kW 480 V Nominal current 9 A
Brand: Siemens
SKU: 1744276
Availability: InStock

Siemens electrical contactor; designed for controlling electrical circuits, with multiple connections and mountable bracket.

An open electrical control cabinet with multiple rows of electrical components, cables, and switches, used for controlling industrial processes.

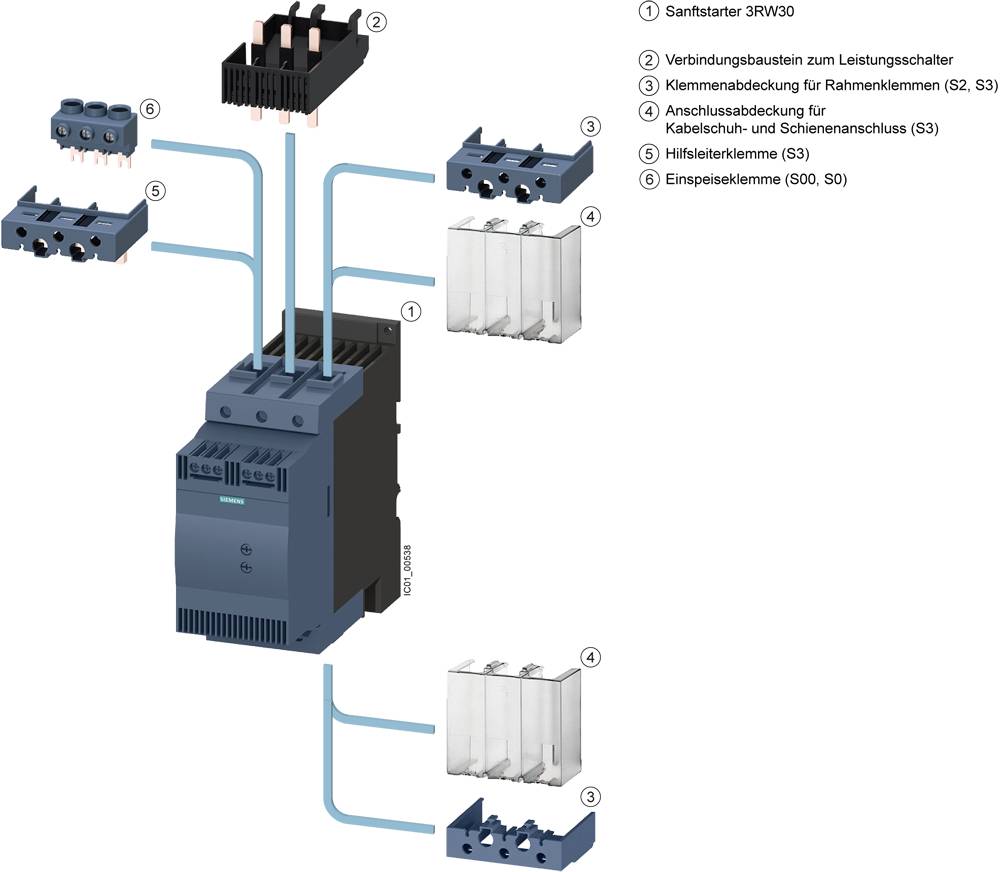

'Soft Starter 3RW30' with numbered components: Connection Module (2), Terminal Cover (3, 4, 6), Auxiliary Terminals (5), Supply Terminal (6). Used for electrical control.

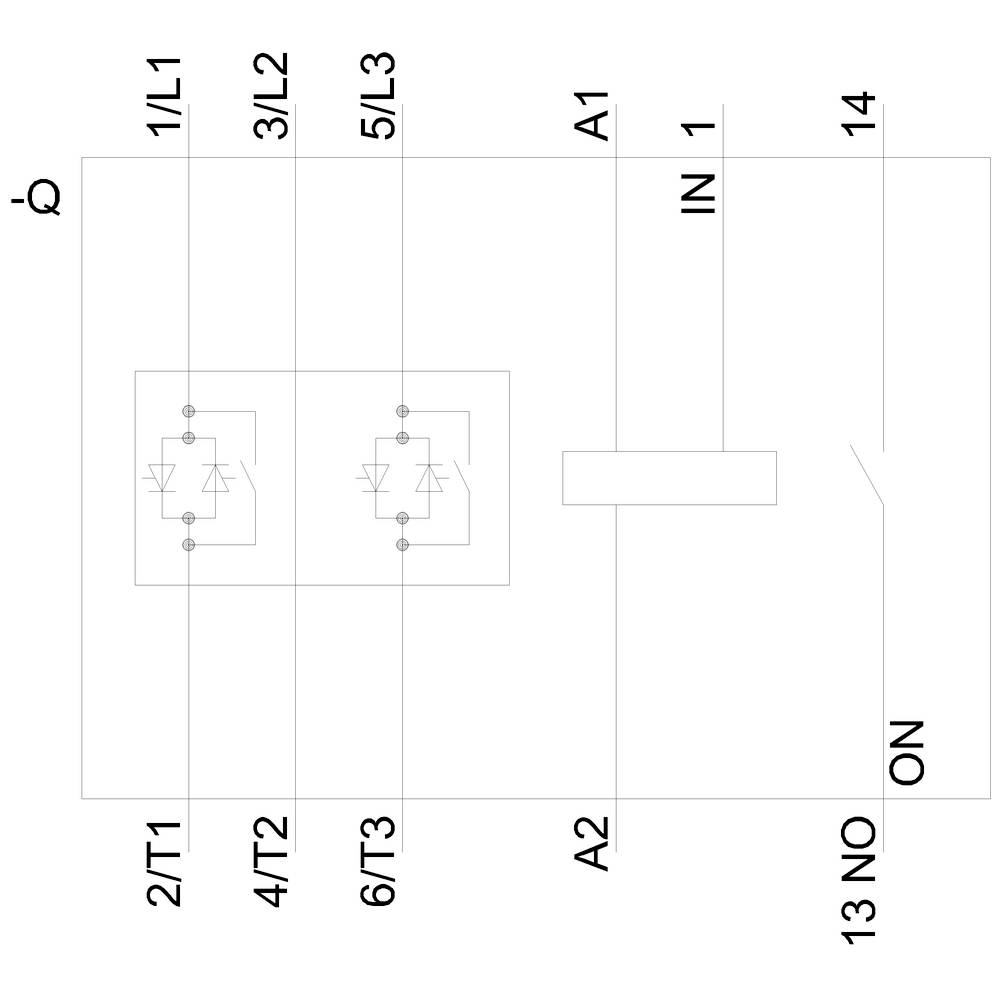

Circuit diagram with two diodes and multiple connections, labelled with numbers and letters. Top left reads '-Q'.

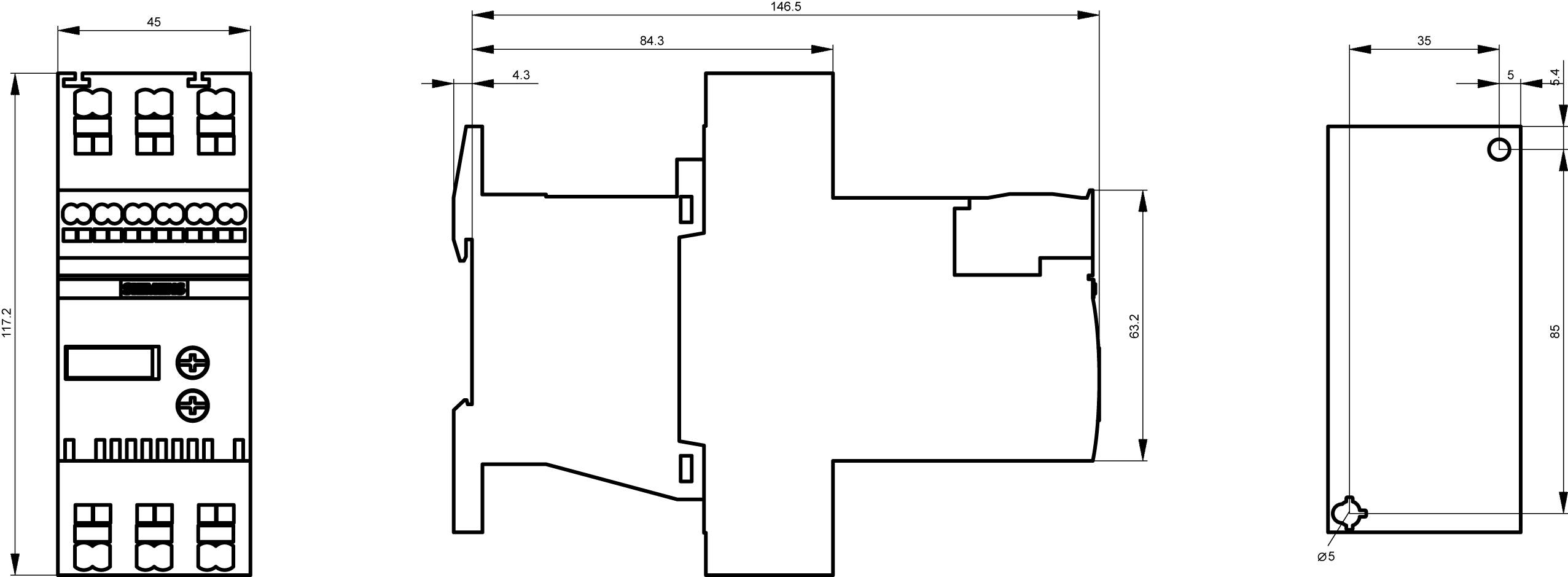

Technical drawing of an electrical device showing front, side, and top views. Dimensions and connection details are specified.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 285.00 / piece)

€ 285.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Mounting type: screw and snap
Number of normally open contact: 1
Size S00:
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V AC

Product type: Soft starter

Supply current: 9 A

Motor power at 400 V: 4 kW

Nominal voltage: 480 V

Type: Spring-loaded connection

Manufacturer part #: 3RW30162BB04

Nominal current: 9 A

Nominal current - rounded value: 9 A

Type: 3RW3016-2BB04

Motor power at 230V / 400V: 4 kW

Dim: (W x H x D) 45 x 120 x 150 mm

Connection: Spring-loaded connector

Width: 45 mm

Height: 120 mm

Depth: 150 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: Single direction

: 24-24 V

: 24-24 V

: 24-24 V

: IP20

: Other

: 9 A

: 2.2 kW

: 4 kW

: 40 °C

: FALSE

: AC/DC

UKCA: yes
