Name: Siemens 3RW3046-1BB14 3RW30461BB14 Soft starter Motor power at 400 V 45 kW 480 V Nominal current 80 A
Brand: Siemens
SKU: 1746702
Availability: BackOrder

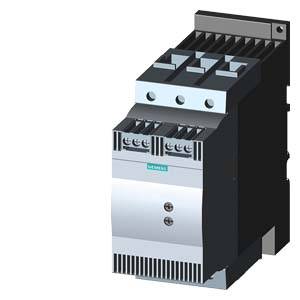

An electronic device with a heat sink, used for power control or motor control in industrial applications.

An open electrical control cabinet with electronic components and cables mounted on multiple levels.

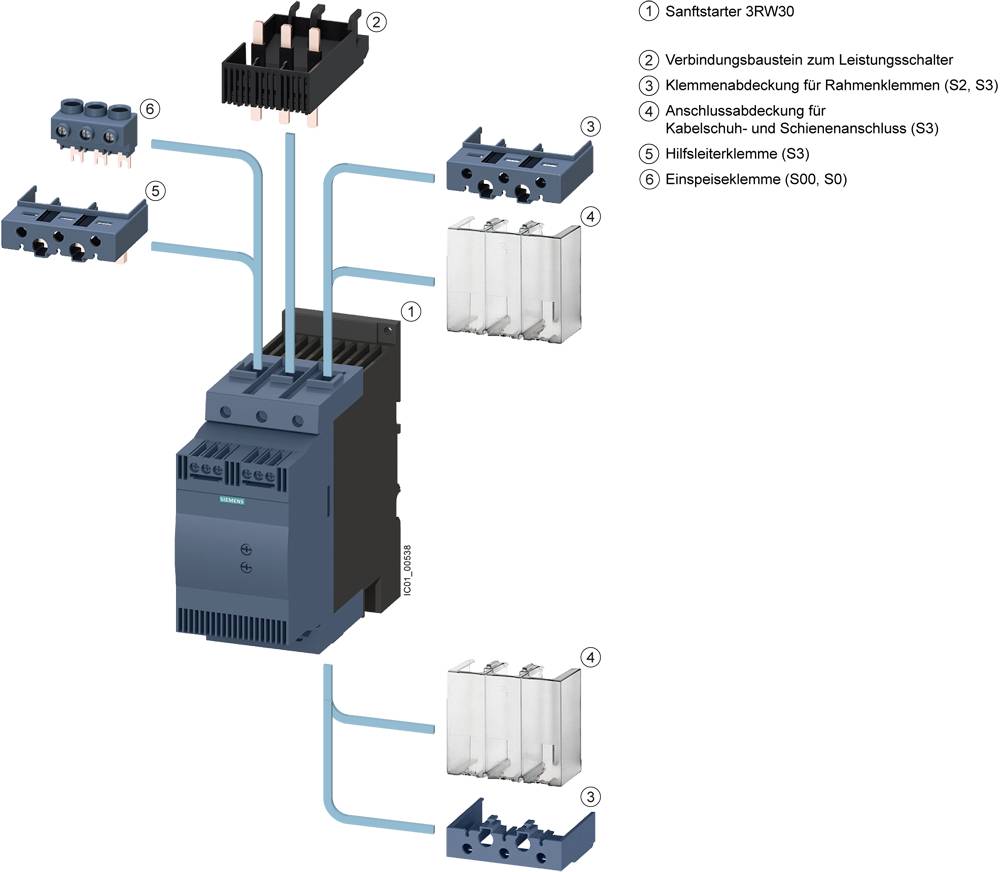

Figure shows a switching starter with components: power module, connection plug, two terminal covers, and supply terminal.

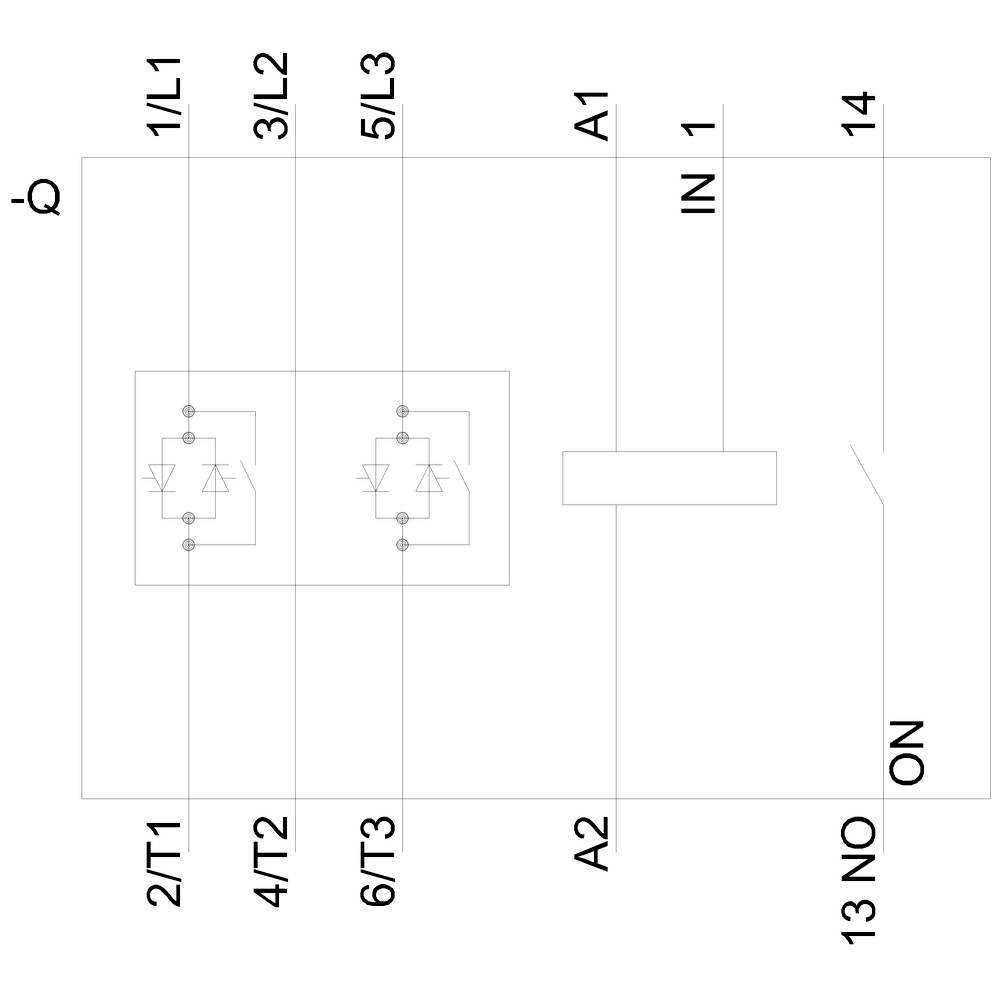

Circuit diagram of an electrical device with six connection points. Contains two diodes internally, labelled L1, L2, L3, T1, T2, T3.

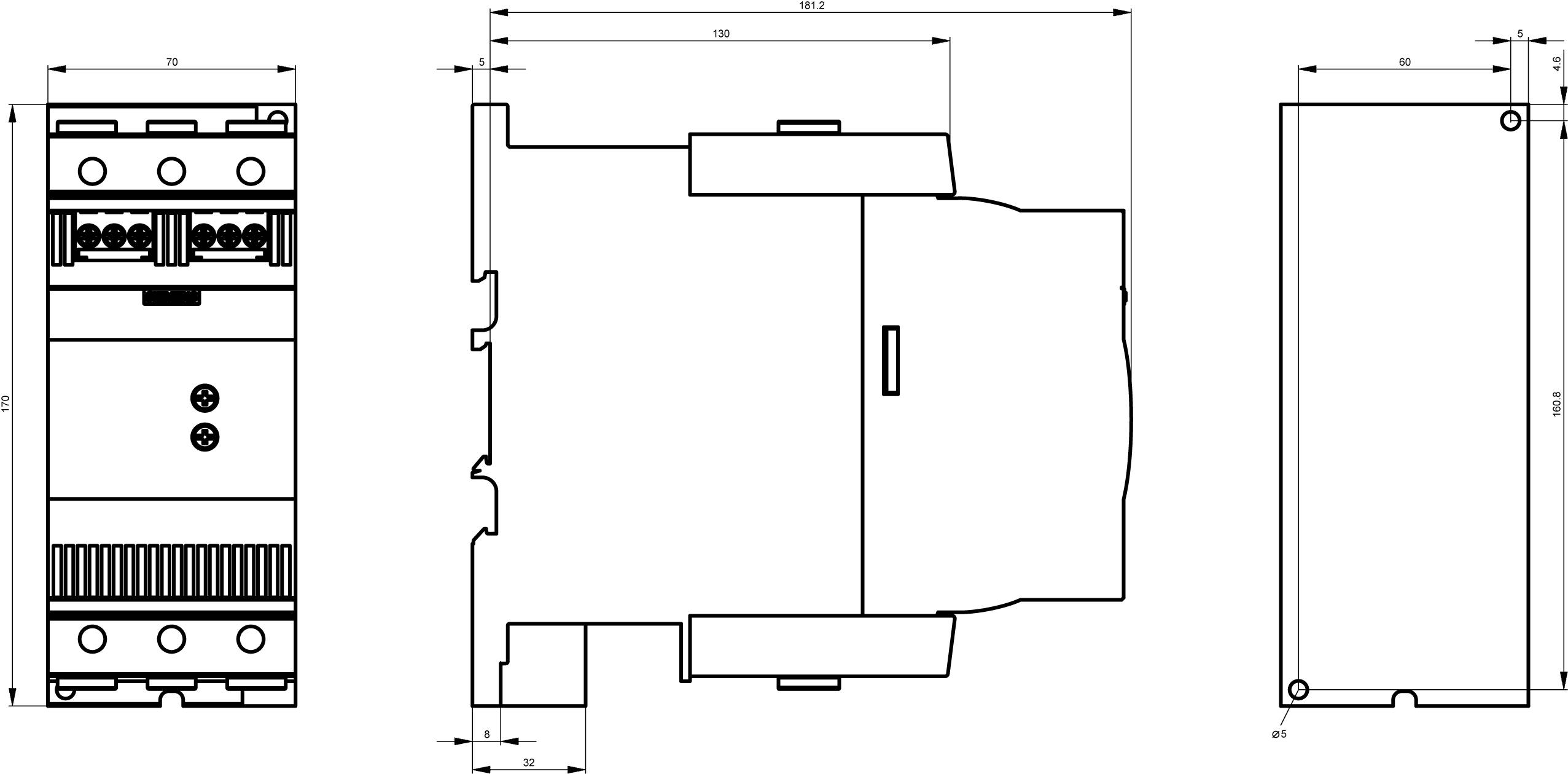

Technical drawing of a device with three views: front view, side view, top view, including dimensions in millimetres.

1/5

Image similar

Datasheet (PDF)

Dispatches on Thu 22 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,225.00 / piece)

€ 1,225.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP00
Mounting type: screw and snap
Number of normally open contact: 1
Size S3
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V

Product type: Soft starter

Supply current: 80 A

Motor power at 400 V: 45 kW

Nominal voltage: 480 V

Type: Screw connector

Manufacturer part #: 3RW30461BB14

Nominal current: 80 A

Nominal current - rounded value: 80 A

Type: 3RW3046-1BB14

Motor power at 230V / 400V: 45 kW

Dim: (W x H x D) 70 x 170 x 190 mm

Connection: Screw terminal

Width: 70 mm

Height: 170 mm

Depth: 190 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: Single direction

: 110-230 V

: 110-230 V

: 110-230 V

: IP00

: Other

: 80 A

: 22 kW

: 45 kW

: 40 °C

: FALSE

: AC/DC

UKCA: yes
