Name: Siemens 3SU1500-1AA10-1NA0 Triple module holder 3 installation slots 2 makers Contact 1 pc(s) Single
Brand: Siemens
SKU: 1700560
Availability: InStock

A black electronic component with a large, round, white socket in the centre, possibly a switch housing.

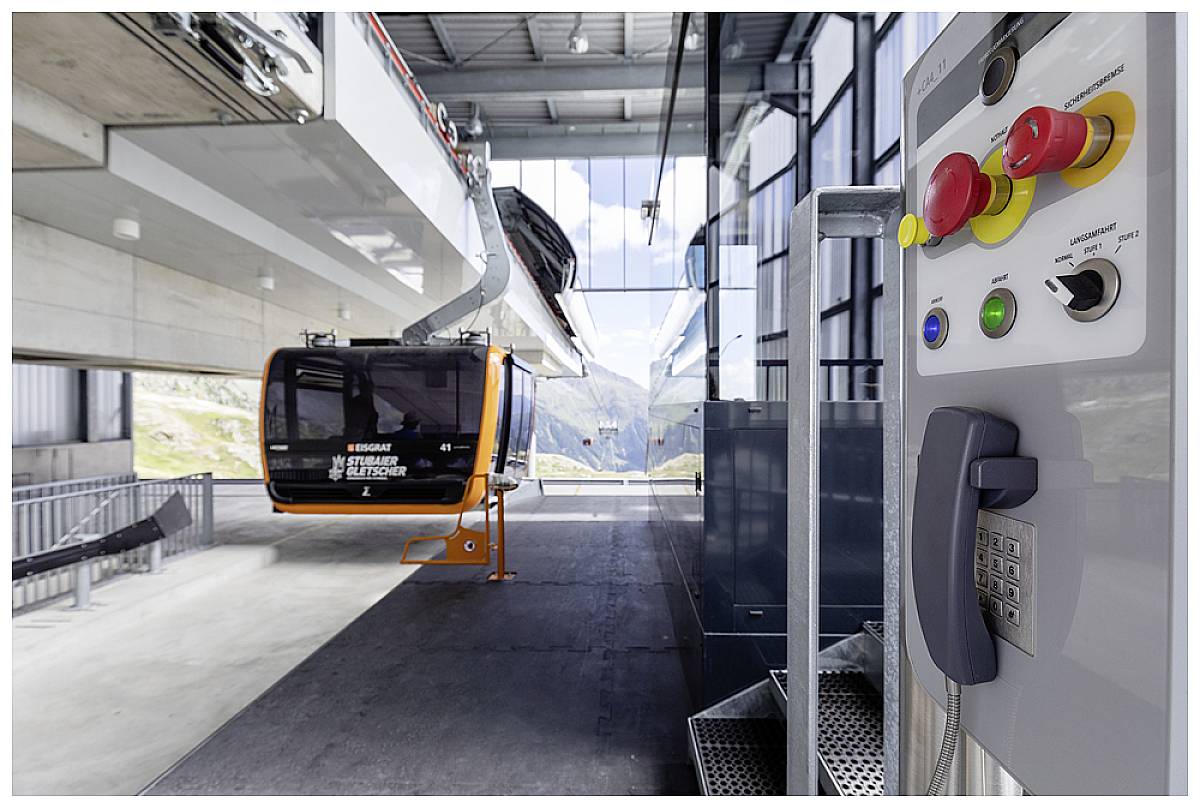

A cable car stands in a modern, glass-fronted station. In the foreground is a control panel with emergency stop buttons and a telephone handset.

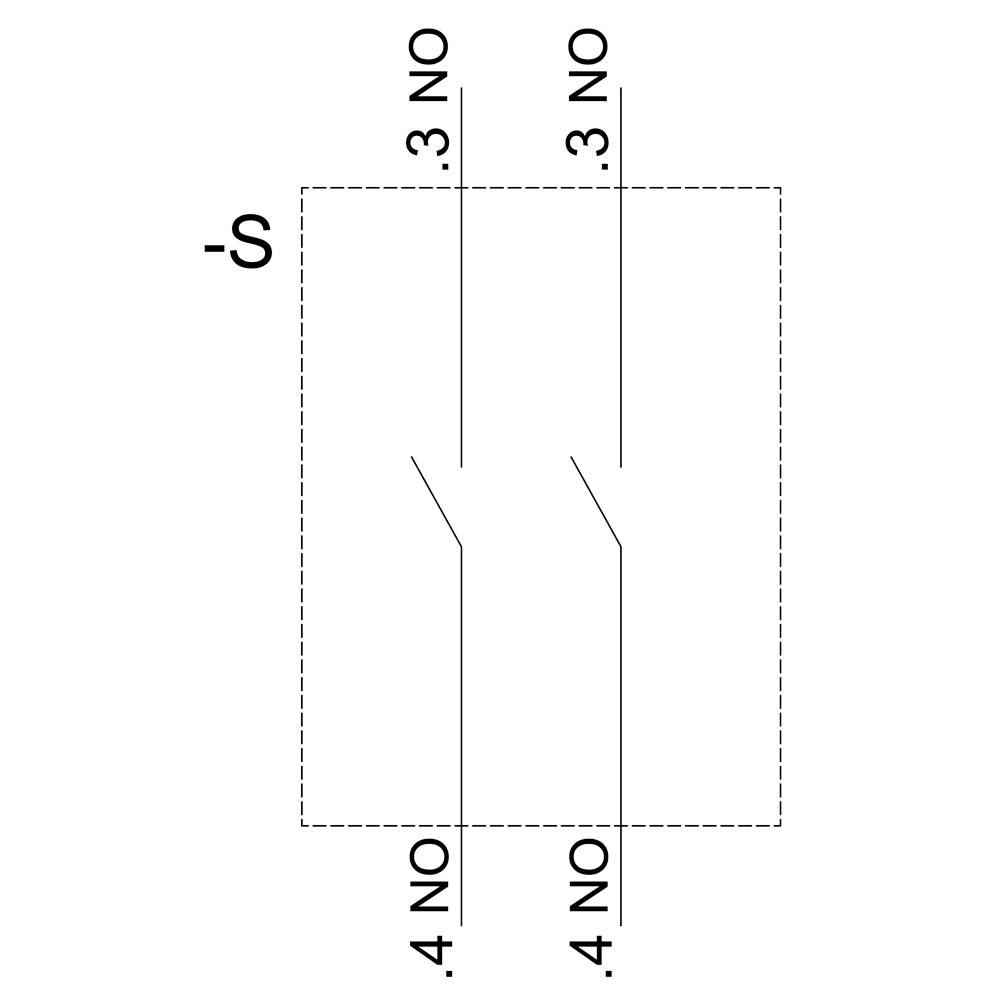

Wiring diagram with two normally open contacts: '3 NO' and '4 NO', connected by a dashed line to 'S'.

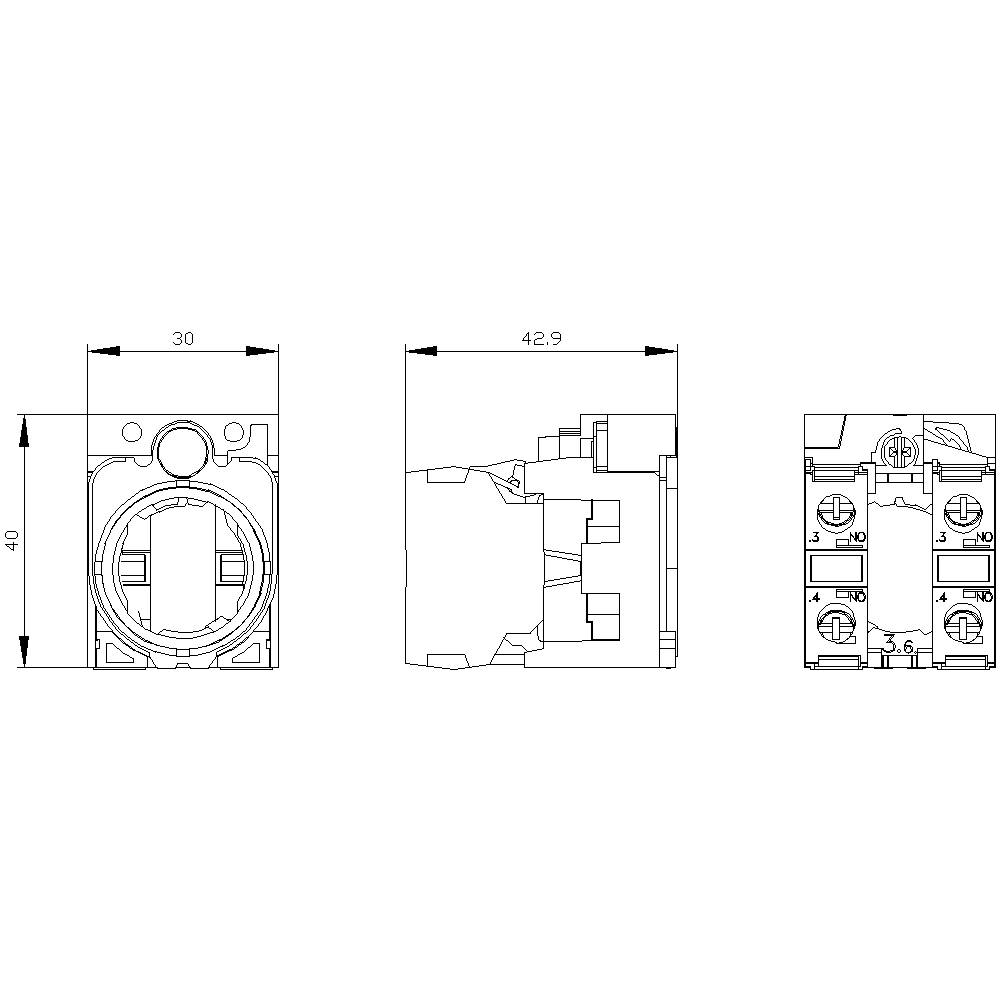

A technical drawing of an electrical switch with front, side, and rear views. Dimensions are 30x40 mm and 42.9 mm in depth.

1/4

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Material of the holder: plastic
Number of contact modules: 2
Isolation voltage: 500 V
Switching frequency: 3600 1/h.
Operating current: 6 A
Operating voltage: 5 V, -500 V
Shape: round
Type of connectable conductor cross-sections, and single-core with wire finishing: 2 x (0.5 mm²-0.75 mm²)

Packaging type: Single

Product type: Triple module holder

Switch/button features: 3 installation slots

Connection: Screws

Type: 3-way with module

Recess depth: 49.8 mm

Functions: Contact

Contact type: 2 makers

Switch position: 2 NO

Switching current (max.): 10 A

: IP20

Dielectric strength: 6 kV

Min. temperature: -25 °C

Max. temperature: +70 °C

Width: 30 mm

Height: 40 mm

Compatible with (details): 3 modules

Durability: 10

Mounting type: Front panel fixed

Content: 1 pc(s)

Dim: (W x H) 30 mm x 40 mm

RoHS-compliant: Yes

Weight: 42 g

Type: 3SU1500-1AA10-1NA0

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1700560 Siemens 3SU1500-1AA10-1NA0 Triple module holder 3 installation slots 2 makers Contact 1 pc(s) Single

User & Safety Instructions

User & Safety Instructions 1700560 Siemens 3SU1500-1AA10-1NA0 Triple module holder 3 installation slots 2 makers Contact 1 pc(s) Single

Information

Information 1700560 Siemens 3SU1500-1AA10-1NA0 Triple module holder 3 installation slots 2 makers Contact 1 pc(s) Single

Description

EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, with CES lock, lock number SSG10, positive latching, acc. to EN ISO 13850, key-operated release
