Name: Siemens 3TC5617-0LB4 Contactor DC circuit 2 makers 250 kW + varistor Compatible with (relay brand): Siemens Piece 1 pc(s
Brand: Siemens
SKU: 1739395
Availability: InStock

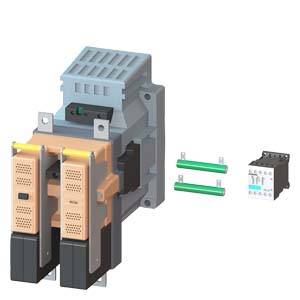

Industrial electrical switching system with two contactors, two green resistors, and an additional module for circuit expansion.

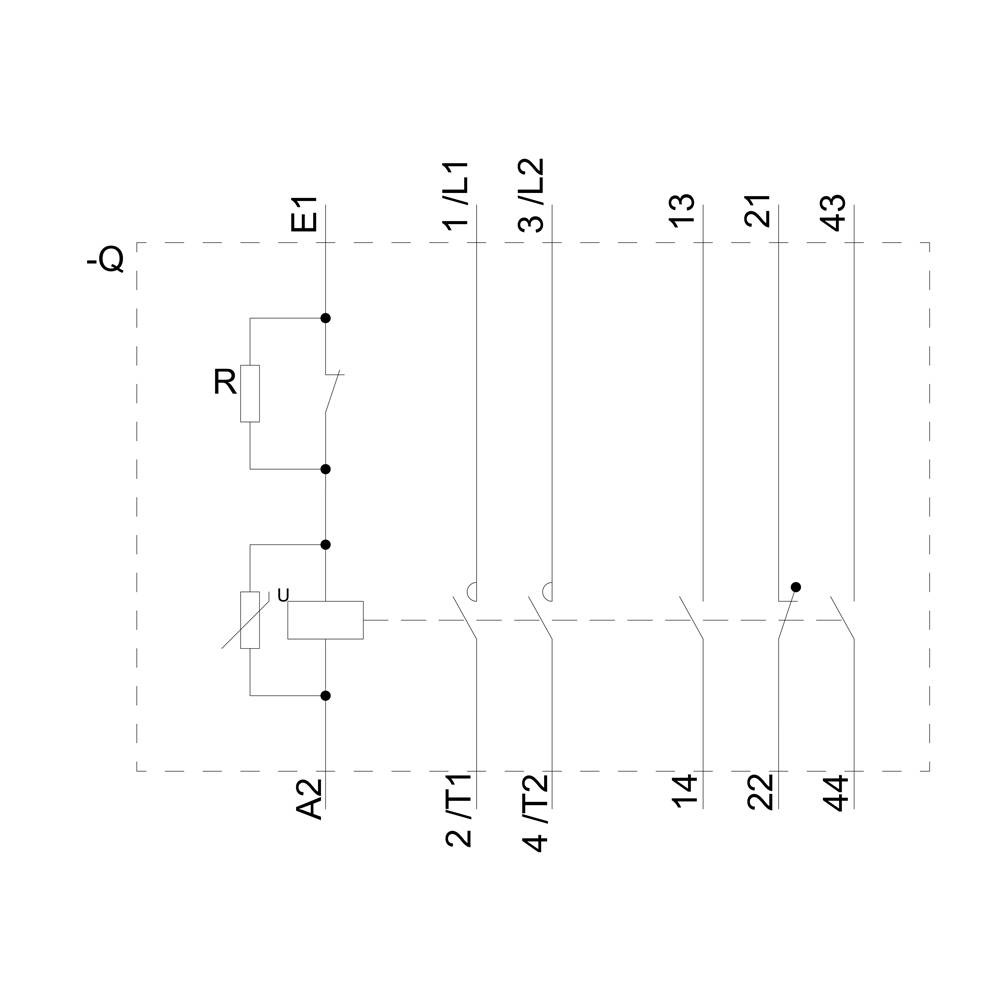

Circuit diagram of an electrical circuit with a relay (R) and a switch (E1); shows connections and marked contacts A2, 1-4.

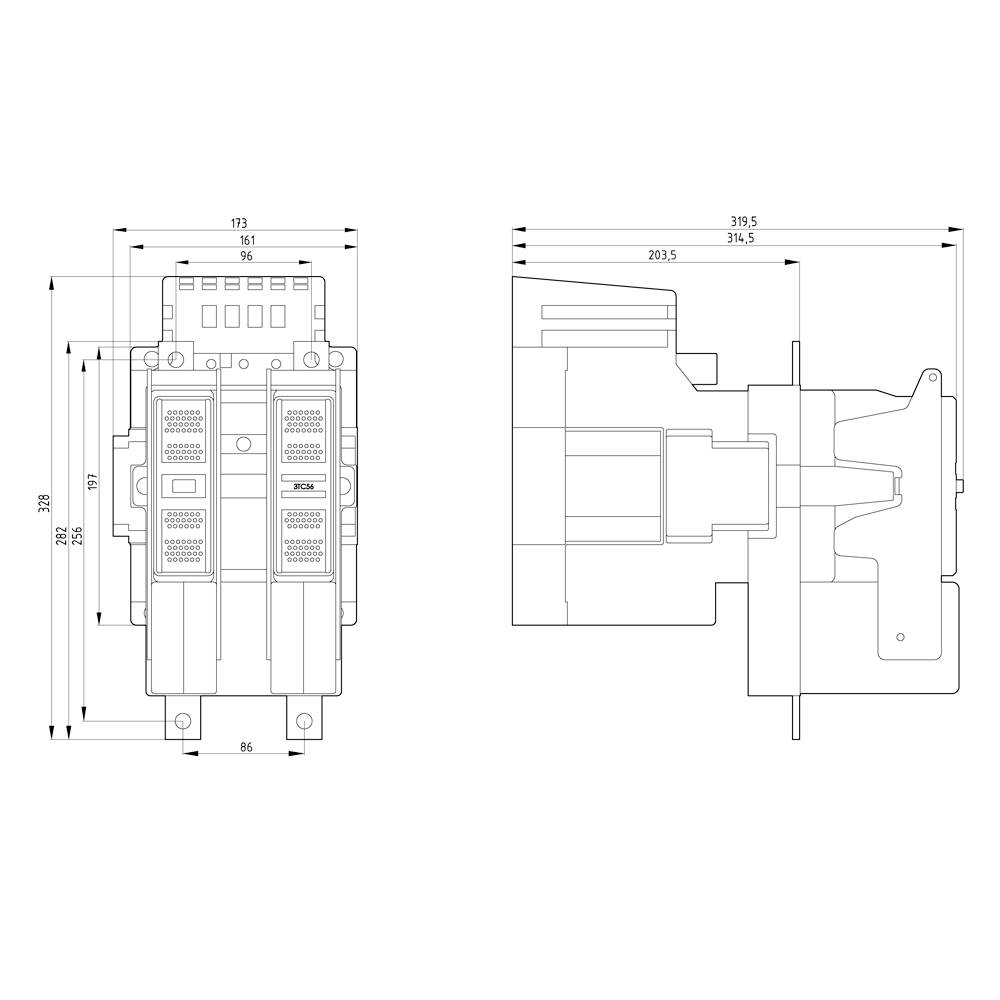

Technical drawing of a circuit breaker with dimensions in millimetres. Front and side views with specific width and height specifications.

1/3

Image similar

Product type

Contactor

No. of pins

2-pin

Power

250 kW

Connection

Screws

Packaging type

Piece

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 30 Oct

35 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5,469.00 / piece)

€ 5,469.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

REVERSING STARTER

Our service for you

Technical specifications

Operating power / at DC-3/at DC-5/at 750 V:250 kW
Type of voltage: DC
Isolation voltage: 1000 V
Contact protection against electrical shock: Finger-safe only with terminal cover

Packaging type: Piece

Product type: Contactor

Type: 3TC5617-0LB4

Type: 12

No. of pins: 2-pin

Switching type: DC circuit

Contact type: 2 makers

Auxiliary contact type: 1 breaker
2 makers

Control voltage (min.): 16.8 V DC

Control voltage (max.): 30 V DC

Control voltage range: 16.8 - 30 V DC

Switching voltage (max.): 750 V DC

Permanent current (max.): 400 A

: 250 kW

Compatible with: Siemens

Features: + varistor

Mounting type: Screw-fit

Connection: Screws

Durability: 1000 0000

: IP00

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 235 mm

Height: 281 mm

Depth: 314 mm

Dim: (W x H x D) 235 x 281 x 314 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 2

: 0

: 2

: 1

: Screw connection

: 140 kW

: 400 A

: DC

UKCA: not relevant
