Name: Siemens 4NC5327-2DE21 4NC53272DE21 Single phase current transformer Primary current 600 A Secondary current 5 A Line fee
Brand: Siemens
SKU: 1729257
Availability: BackOrder

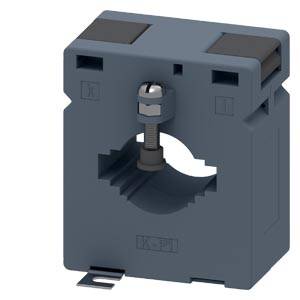

A grey electrical current transducer with a square aperture and screw mounting, used for measuring and monitoring current flows.

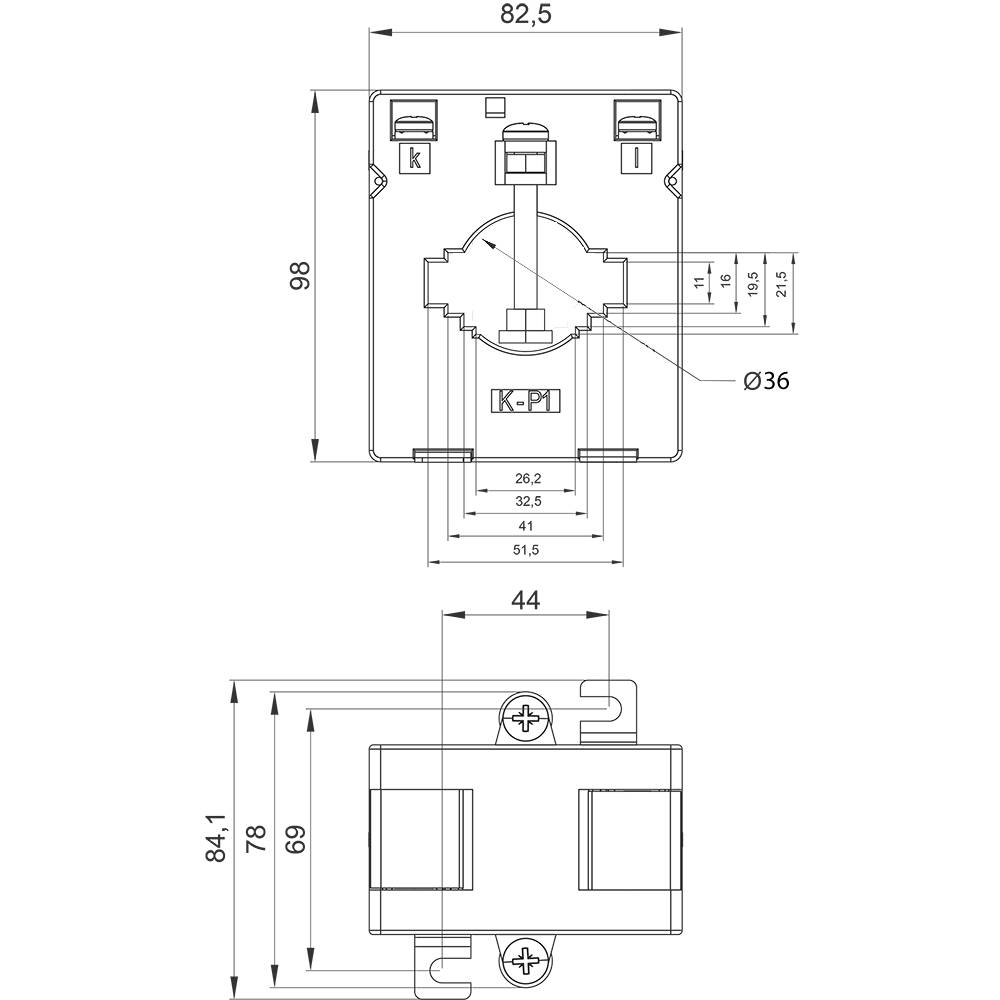

A technical diagram with detailed dimensions of a square component, showing width and height measurements along with drilling positions.

1/2

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 97.99 / piece)

€ 97.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

SIMATIC IPC427E (MicroBOX PC)

Input current (current) 600 A
Output current 5 A
Line feed-through diameter 36 mm

Technical specifications

Protection class: IP20
Ambient temperature: -30 °C to +55 °C
Operating frequency: 50/60 Hz

Product type: Single phase current transformer

Fitting type: Screw-fit

Primary current: 600 A

Secondary current: 5 A

: 5 VA

Line feed-through diameter: 36 mm

Accuracy class: 0.5

Type: 4NC5327-2DE21

Dim: (L x W x H) 77 x 82.5 x 98 mm

Weight: 578 g

Output current: 5 A

Input current: 600 A

Line feed-through (W): 36 mm

Line feed-through (H x W): 36 x 36 mm

Line feed-through (H): 36 mm

Width: 82.5 mm

Height: 98 mm

Length: 77 mm

: Attachable current transformer

: 0.5

: 36 mm

: 1

: 600 A

: 5 VA

: 5 A

: FS 10

: TRUE

UKCA: yes
