Siemens 5SJ41068HG40 5SJ4106-8HG40 Circuit breaker 6 A 230 V, 400 V
EAN:
Part number:
Item no:
Nominal current - rounded value
6 A
Number of pins
1
Release characteristics
D
Product type
Circuit breaker
RoHS-compliant
Yes
Datasheet (PDF)
Technical specifications
- IP20, with the connected conductors, IP40 in the grip area
- RoHS-compliant
Yes
- Nominal current - rounded value
6 A
- Nominal current
6 A
- Factory colour
Grey

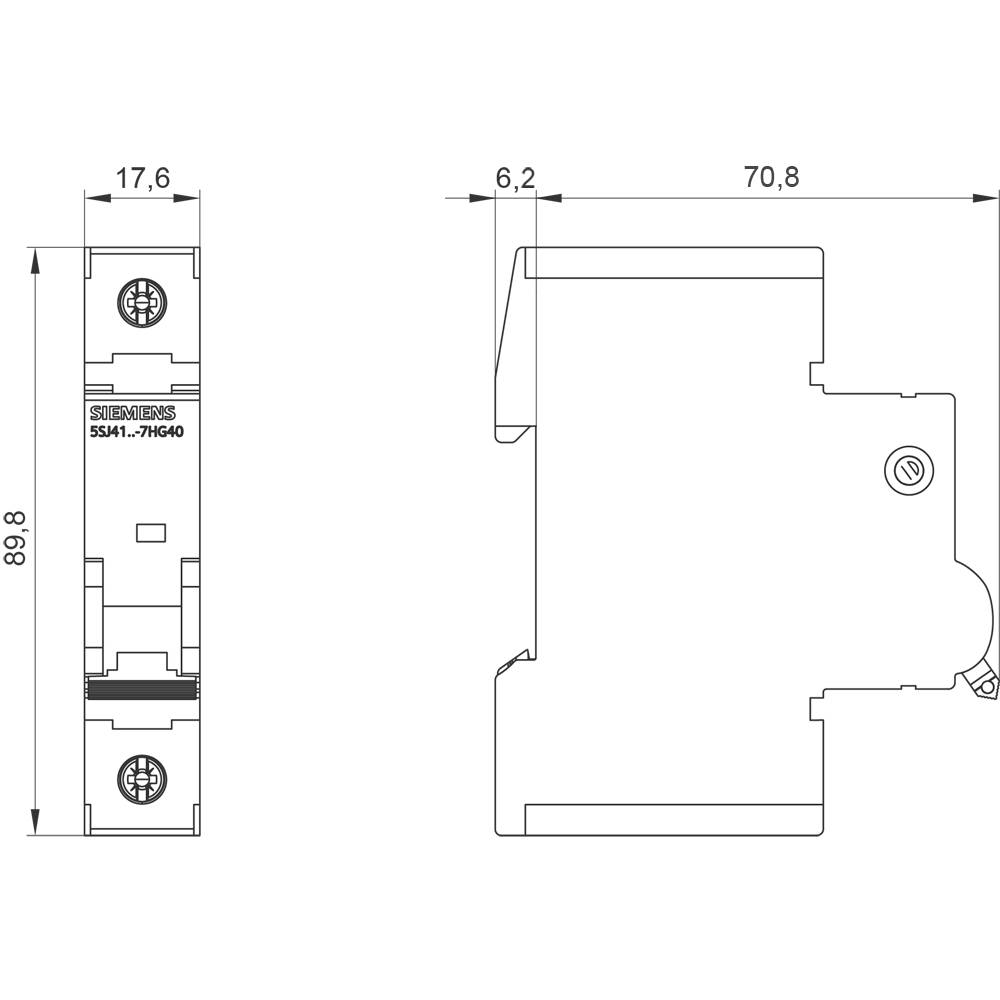

- Dim
(W x H x D) 18 x 90 x 70 mm
- Content
1 pc(s)
- Depth
70 mm
- Height
90 mm
- Width
18 mm
- Compatible with (details)
SENTRON
- Nominal voltage
230 V
400 V
- Switch-off capacity
14 kA
- Number of pins
1
- Release characteristics
D
- Operating voltage
240 V
AC/DC
70 mm
6 A
400 V
50-60 MHz
D
440 V
3
3
1
IP20
1
FALSE
TRUE
1
10 kA
10 kA
15 kA
15 kA
- Product type
Circuit breaker
Documents & Downloads
Datasheet
Datasheet 1728196 Siemens 5SJ41068HG40 5SJ4106-8HG40 Circuit breaker 6 A 230 V, 400 V
User & Safety Instructions
User & Safety Instructions 1728196 Siemens 5SJ41068HG40 5SJ4106-8HG40 Circuit breaker 6 A 230 V, 400 V
