Siemens 5SP34163 5SP3416-3 Main RCCB 16 A 400 V
EAN:
Part number:
Item no:
Product type
Main RCCB
Number of pins
4
Release characteristics
E
Nominal current - rounded value
16 A
RoHS-compliant
Yes
Datasheet (PDF)
Number
Total (€ 385.71 / piece)
€ 385.71
plus VAT.
14 days return policy included
Technical specifications
- IP40, with the connected conductors
- Product type
Main RCCB
- Number of pins
4
- Release characteristics
E
- RoHS-compliant
Yes
- Nominal current - rounded value
16 A
- Nominal current
16 A
- Factory colour
Grey

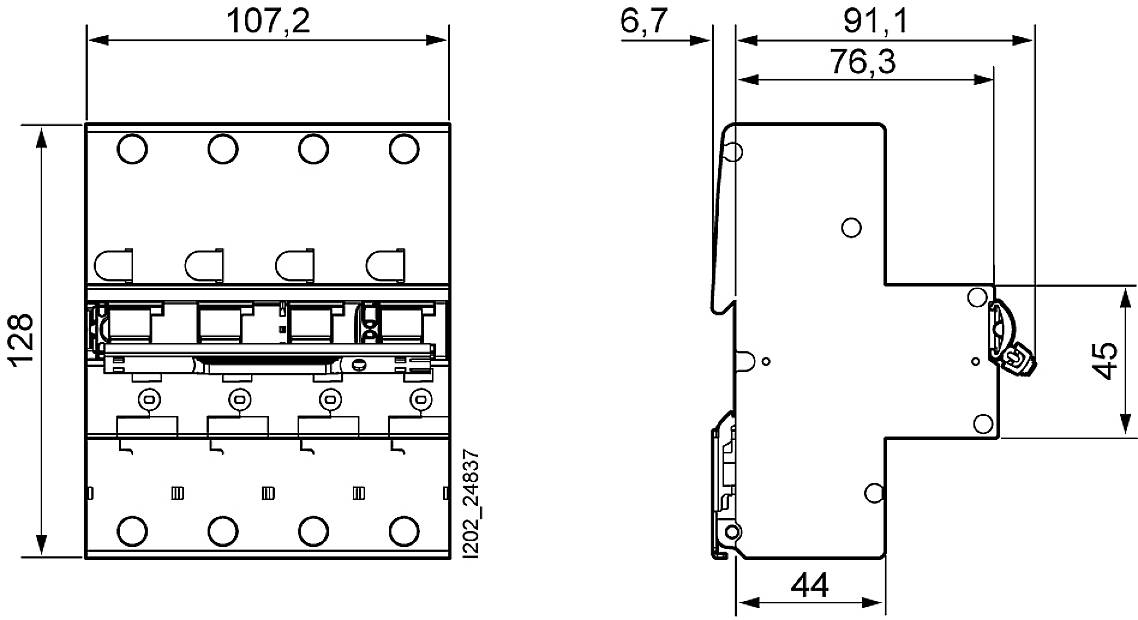

- Dim
(W x H x D) 107.2 x 128 x 76.3 mm
- Content
1 pc(s)
- Operating voltage
440 V
- Nominal voltage
400 V
- Compatible with (details)
SENTRON
- Width
107.2 mm
- Height
128 mm
- Depth
76.3 mm
DIN rail
50 Hz
16 A
400 V
E
690 V
4
25 A
2
3
6 kV
IP40
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1727001 Siemens 5SP34163 5SP3416-3 Main RCCB 16 A 400 V
User & Safety Instructions
User & Safety Instructions 1727001 Siemens 5SP34163 5SP3416-3 Main RCCB 16 A 400 V
Description
Key-operated switch O.M.R, 22 mm, round, plastic with metal front ring, lock number 73037, red, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, Key removal O+I
