Name: Siemens 6AG2222-1BF32-1XB0 6AG22221BF321XB0 PLC digital I/O module 28.8 V
Brand: Siemens
SKU: 1747785
Availability: BackOrder

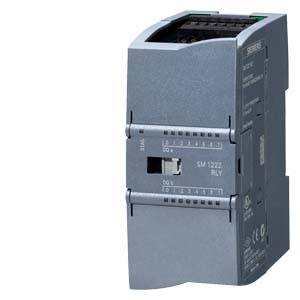

A grey, rectangular electronic device with multiple ports and switches, likely a technical module or control unit.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon, 4 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 435.00 / piece)

€ 435.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Current consumption 120 mA
Weight 180 g
Power loss: 1.5 W

Product type: PLC digital I/O module

Type: 6AG2222-1BF32-1XB0

Manufacturer part #: 6AG22221BF321XB0

Type: Screw connector

No. of outputs (max.): 8

No. of transistor outputs (max.): 8

Min. operating voltage: 20.4 V

Operating voltage: 20.4 - 28.8 V

Max. operating voltage: 28.8 V

Operating voltage: 28.8 V

Height: 100 mm

Length: 75 mm

Width: 45 mm

: IP20

Series: S7-1200

Dim: (L x W x H) 75 x 45 x 100 mm

Content: 1 pc(s)

Max. ambient temperature: +70 °C

Min. ambient temperature: -25 °C

: 45

: 100 mm

: 75 mm

: FALSE

: 0

: 8

: DC

: FALSE

: 0.5 A

: FALSE

: Transistor

: Screw-/spring clamp connection

: ATEX gas-ex-protection, Cat. 3G

: None

: FALSE

: FALSE

: DC

: TRUE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1747785 Siemens 6AG2222-1BF32-1XB0 6AG22221BF321XB0 PLC digital I/O module 28.8 V

User & Safety Instructions

User & Safety Instructions 1747785 Siemens 6AG2222-1BF32-1XB0 6AG22221BF321XB0 PLC digital I/O module 28.8 V

Description

SIPLUS S7-1500 DI 16x 48VUC/ 125V -40...+70 °C with conformal coating based on 6ES7521-7EH00-0AB0 . "16 channels in groups of 1 " "Input delay 0.05..20ms "Input type 3 (IEC 61131) " "diagnostics hardware interrupts" SIPLUS S7-1500 Digital module input DI 16x24 ... 125 V UC HF -40 ... +70°C with conformal coating based on 6ES7521-7EH00-0AB0
