Siemens S7-1200 SB 1222 6ES72221BD300XB0 24 V
EAN:
Part number:
Item no:
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
Only 4 Piece(s) available
Technical specifications
- SIMATIC S7-1200, digital output SB 1222, 4DQ, DC 24 V 200 kHz;
- Weight 35 g
- Compatible with (details)
Siemens SIMATIC S7-1200
- Type
S7-1200 SB 1222
- Manufacturer part #
6ES72221BD300XB0
- Type
4 DA, 24 V/DC, 200 kHz
- No. of outputs (max.)
4
- Operating voltage
24 V (max)
- Max. operating voltage
24 V
- Operating voltage
24 V
- Height
62 mm
- Length
21 mm
- Width
38 mm
IP20

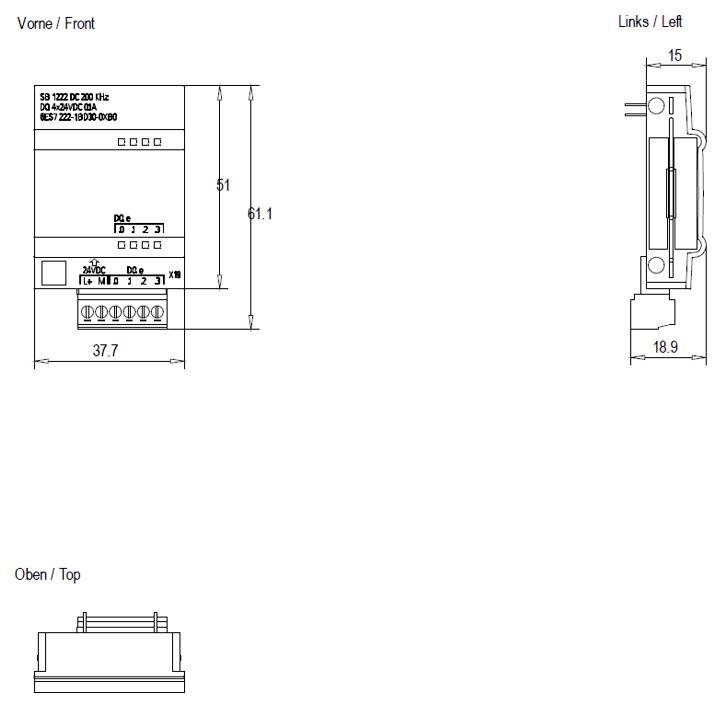

- Dim
(L x W x H) 21 x 38 x 62 mm
- Content
1 pc(s)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
38
62 mm
21 mm
FALSE
DC
None
FALSE
FALSE
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 197443 Siemens S7-1200 SB 1222 6ES72221BD300XB0 24 V
Description
Digital outputs are additional to the integrated peripherals of the SIMATIC S7-1200 CPUs. Directly plugged into the CPU.
