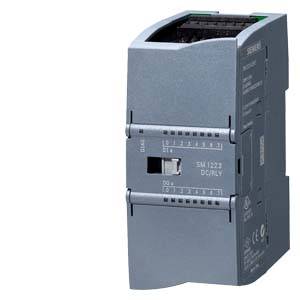

Siemens 6AG2223-1PL32-1XB0 6AG22231PL321XB0 PLC digital I/O module 28.8 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 881.51 / piece)
€ 881.51
plus VAT.
Technical specifications
- Input current 180 mA
- Power loss: 10 W
- Maximum cable length 500 m
- Alarms: Yes
- Diagnostic function: Yes
- Weight: 350 g
- Housing material: Plastic
- Product type
PLC digital I/O module
- Type
6AG2223-1PL32-1XB0
- Manufacturer part #
6AG22231PL321XB0
- No. of digital inputs (max.)
16
- No. of inputs (max.)
16
- No. of outputs (max.)
16
- No. of relay outputs (max.)
16
- Min. operating voltage
20.4 V DC
- Operating voltage
20.4 - 28.8 V DC
- Max. operating voltage
28.8 V DC
- Operating voltage
28.8 V DC
- Height
100 mm
- Length
75 mm
- Width
70 mm
IP20
- Dim
(L x W x H) 75 x 70 x 100 mm
- Content
1 pc(s)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
70
100 mm
75 mm
4 A
FALSE
16
16
DC
DC
FALSE
2 A
FALSE
Relay
Screw-/spring clamp connection
ATEX gas-ex-protection, Cat. 3G
None
FALSE
FALSE
AC/DC
TRUE
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1734719 Siemens 6AG2223-1PL32-1XB0 6AG22231PL321XB0 PLC digital I/O module 28.8 V DC
User & Safety Instructions
User & Safety Instructions 1734719 Siemens 6AG2223-1PL32-1XB0 6AG22231PL321XB0 PLC digital I/O module 28.8 V DC
Description
Fa. Heine Breaking resistor FOR POWERMODULE PM240-2 FSF P_MAX=55kW/12S/5% ED R=2,5 OHM P_DAUER=2750W
