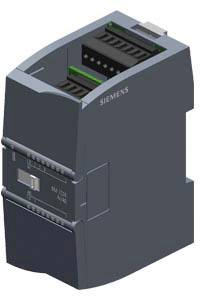

Siemens 6AG2234-4HE32-1XB1 6AG22344HE321XB1 PLC digital I/O module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 805.88 / piece)
€ 805.88
plus VAT.
Technical specifications
- Power consumption: 60 mA
- Power loss: 2 W
- Weight: 220 g
- Product type
PLC digital I/O module
- Type
6AG2234-4HE32-1XB1
- Manufacturer part #
6AG22344HE321XB1
- No. of analogue inputs
4
- No. of analogue outputs
2
- No. of inputs (max.)
4
- No. of outputs (max.)
2
- Operating voltage
24 V DC (max)
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC
- Height
100 mm
- Length
75 mm
- Width
45 mm
IP20
- Dim
(L x W x H) 75 x 45 x 100 mm
- Content
1 pc(s)
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
45
100 mm
75 mm
FALSE
4
2
TRUE
TRUE
FALSE
FALSE
FALSE
TRUE
TRUE
TRUE
TRUE
12 Bit
14 Bit
Screw-/spring clamp connection
None
FALSE
FALSE
TRUE
TRUE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1734720 Siemens 6AG2234-4HE32-1XB1 6AG22344HE321XB1 PLC digital I/O module 24 V DC
User & Safety Instructions
User & Safety Instructions 1734720 Siemens 6AG2234-4HE32-1XB1 6AG22344HE321XB1 PLC digital I/O module 24 V DC
Description
SIMATIC ET 200SP, Signal relay module, RQ CO 4x 24V DC/2A ST, 4 changeover contacts, isolated contacts, packing unit: 1 piece, fits to BU-type A0, Colour Code CC00, substitute value output, module diagnostics for: supply voltage
