Siemens 6ES7924-0BG20-0BC0 6ES79240BG200BC0 PLC connectors 50 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Technical specifications
- Depth: 60 mm
- Number of pins at interface 1: 16
- Case color: Gray
- Width of screwdriver blade: 3.5 mm
- Electrical life: 30000000
- Mechanical life 10000000
- Current: 1 A
- Product type
PLC connectors
- Type
6ES7924-0BG20-0BC0
- Manufacturer part #
6ES79240BG200BC0
- Type
Plug connection
- No. of relay outputs (max.)
8
- Operating voltage
50 V (max)
- Max. operating voltage
50 V
- Operating voltage
50 V
- Height
76 mm
- Length
76 mm
- Width
130 mm
- Dim
(L x W x H) 76 x 130 x 76 mm
- Content
1 pc(s)
- Fitting type (details)
DIN rail 35 mm, DIN rail 15 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
0 °C
- Factory colour
Grey
Documents & Downloads
Datasheet
Datasheet 1731755 Siemens 6ES7924-0BG20-0BC0 6ES79240BG200BC0 PLC connectors 50 V
User & Safety Instructions
User & Safety Instructions 1731755 Siemens 6ES7924-0BG20-0BC0 6ES79240BG200BC0 PLC connectors 50 V
Description

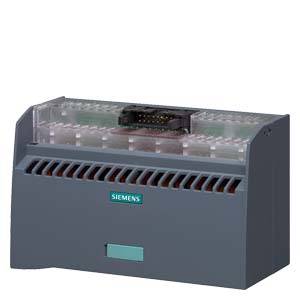

Connection module TP3 with fuse per channel 8 channels and 2x10 terminals for Potential supply Type: Screw terminal with LED, VPE=1 unit 16 pole IDC connector f. cable
