Name: Siemens Continuous light 8WD44001AF 8WD4400-1AF LED Blue 1 pc(s)
Brand: Siemens
SKU: 1706975
Availability: BackOrder

A yellow device with a green, orange and red light indicates its operation. In the background, a person is standing wearing a white shirt.

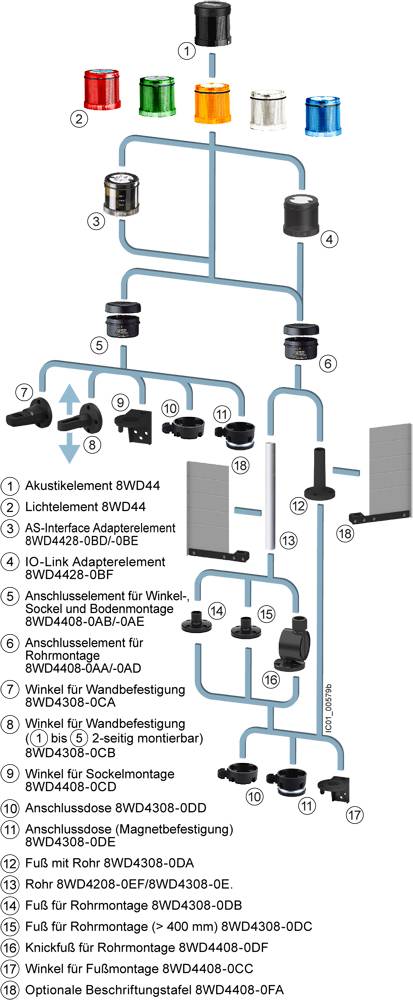

'Diagram showing the arrangement of equipment: Acoustic, Light and AS-Interface elements, housing and accessories, numbered and interconnected.'

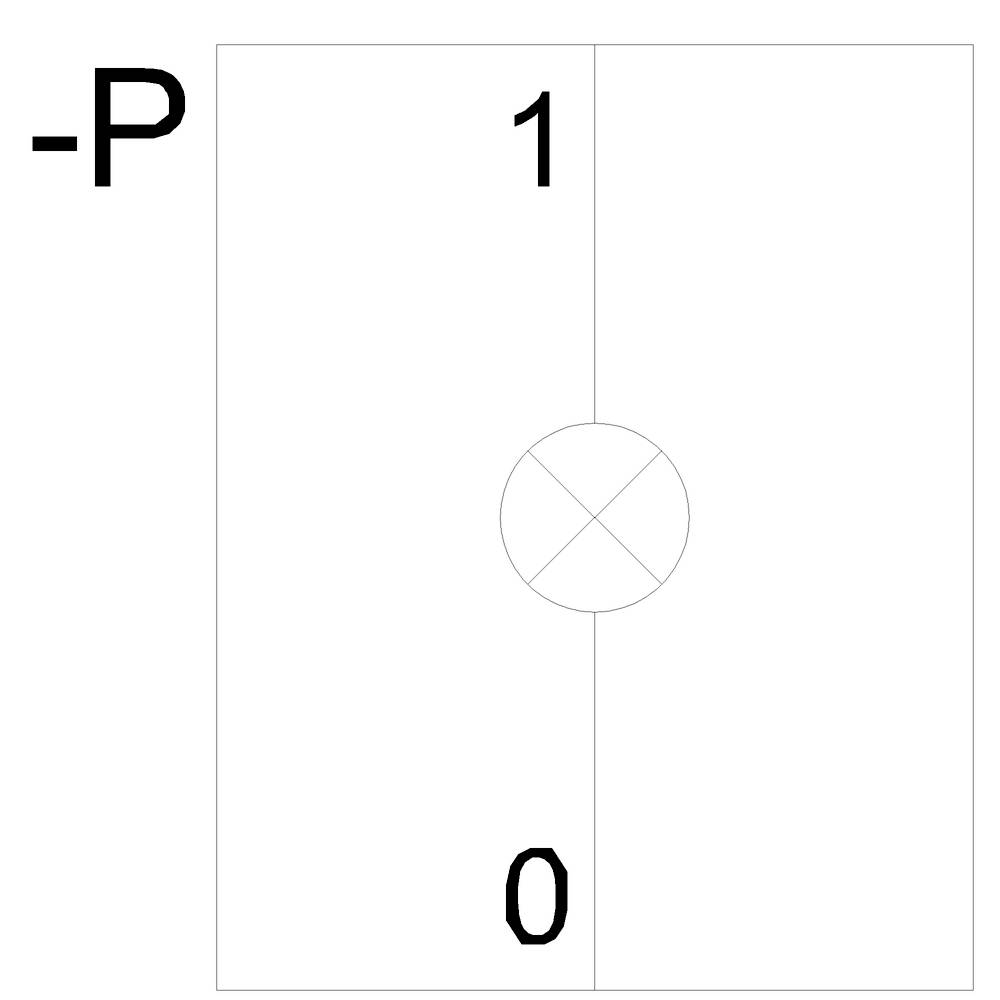

'Switch symbol: On the left '-P'; in the centre a circle with a cross; '1' at the top, '0' at the bottom on a vertical line.'

Technical drawing of a cylindrical object with dimensions: height 68.5, width 69.2, and diameter 68.5. Top view and side view.

1/5

Image similar

Datasheet (PDF)

Dispatches on Tue 20 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 46.99 / piece)

€ 46.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design of the product: Without bulbs
Ambient temperature: -20 °C to +60 °C
Type of bulb: Bulb/LED

Product type: Continuous light

Operating voltage: 12 V

Factory colour: Blue

Lighted picture: Permanent light

Signal type: Non-stop light signal

(Ø): 70 mm

Height: 65.5 mm

Features: LED

: IP65

Dim: (Ø x H) 70 mm x 65.5 mm

Width: 70 mm

Colour: Blue

Material: PC

Type: 8WD4400-1AF

Light intensity: 0.42 cd

Weight: 72 g

Type: Bayonet

Calotte colour: Blue

Max. temperature: +60 °C

Min. temperature: -20 °C

: Blue

: 70 mm

: Continuous light

: Blue

: AC/DC

: Incandescent lamp/LED

: IP65

: 12-230 V

: 12-230 V

: 12-230 V

: Other

UKCA: yes
