Signal Construct MBRE140844A LED bulb Blue E14 24 V DC/AC
Product type
LED bulb
Operating voltage
24 V DC/AC
Base
E14
Factory colour
Blue
Head Ø
18.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 20.99 / piece)
€ 20.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
LED bulb
- Factory colour
Blue
- Operating voltage
24 V DC/AC
E14
- Head Ø
18.5 mm
- Radiation angle
360°
- Dim
(Ø x H) 19 mm x 50 mm
- Length
50 mm
- Width
18.5 mm
- Height
50 mm
- (Ø)
19 mm
100000
- Min. temperature
+70 °C
- Max. temperature
-30 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435467 Signal Construct MBRE140844A LED bulb Blue E14 24 V DC/AC
User & Safety Instructions
User & Safety Instructions 2435467 Signal Construct MBRE140844A LED bulb Blue E14 24 V DC/AC
Description

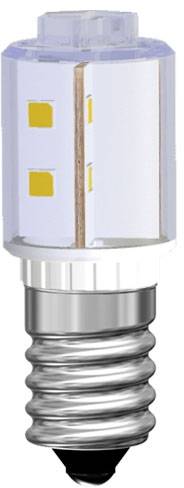

LED lamp with 8 chip LEDs, the segment
Are arranged at a distance of 90°.
Homogeneous light distribution over 360°
A length of 20 mm.
Insensitive to shock and vibration.
Combined hexagonal (SW10) and cross-recess
For screwdriver at the top of the housing.

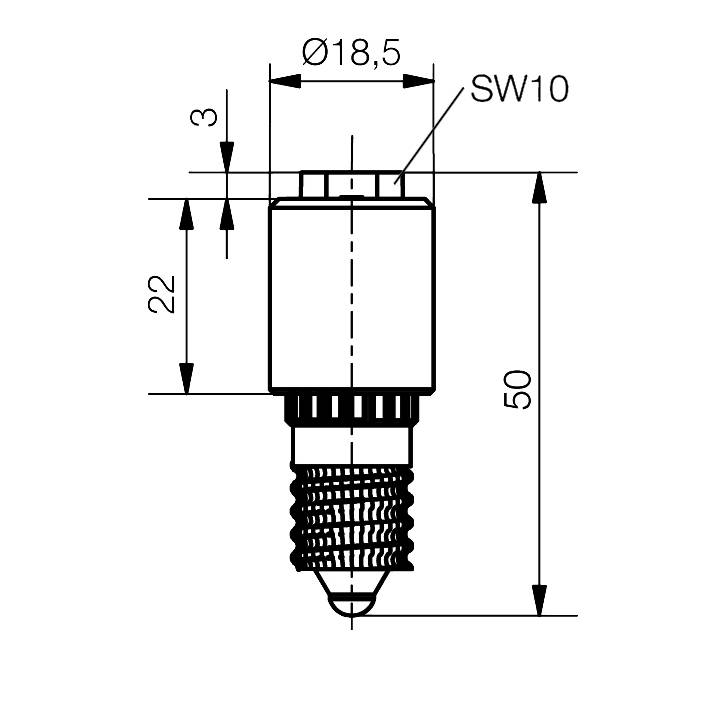

Dimensions: Ø18,5 mm / length 50 mm
PCB: Equipped with 8 chip LEDs
Socket: E14
OPERATING VOLTAGE 12/14V AC/DC
24/28V AC/DC
42/48V AV/DC
This text is machine translated.
Are arranged at a distance of 90°.
Homogeneous light distribution over 360°
A length of 20 mm.
Insensitive to shock and vibration.
Combined hexagonal (SW10) and cross-recess
For screwdriver at the top of the housing.
Dimensions: Ø18,5 mm / length 50 mm
PCB: Equipped with 8 chip LEDs
Socket: E14
OPERATING VOLTAGE 12/14V AC/DC
24/28V AC/DC
42/48V AV/DC
This text is machine translated.
