Name: Signal Construct MEDB2562 LED indicator light White BA9s 12 V DC 15 mA 2000 mcd 428 mlm
Brand: Signal Construct
SKU: 725781
Availability: InStock

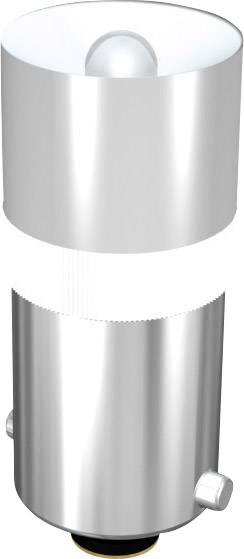

Silver cylindrical object with a white ring at the top. It resembles a microscope lens or optical instrument.

Technical drawing of a cylindrical component. Height 25 mm, diameter 10 mm. Lines and dimensions sketch the dimensions.

1/2

Product type

LED indicator light

Operating voltage

12 V DC

Base

BA9s

Operating current

15 mA

Light intensity I(V)

2000 mcd

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

57 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Signal Construct MEDB2562 LED indicator light White BA9s 12 V DC 15 mA 2000 mcd 428 mlm

Our service for you

Technical specifications

LED Ø: 3 mm

Product type: LED indicator light

Type: MEDB2562

Factory colour: White

Operating voltage: 12 V DC

: BA9s

Operating current: 15 mA

Light intensity I(V): 2000 mcd

Colour temperature: 6000 K

Radiation angle: 60°

LED features: LED 3 mm

Dim: (Ø x H) 10 mm x 25 mm

Height: 25 mm

(Ø): 10 mm

Min. temperature: -20 °C

Max. temperature: 80 °C

RoHS-compliant: Yes

Content: 1 pc(s)

: 6000 K

Colour temperature range: 6000 K

Luminous flux (Φ): 428 mlm

Operating current: 15 mA

Temperature range: -20 - +80 °C

Operating voltage: 12 V DC

Documents & Downloads

Datasheet

Datasheet 725781 Signal Construct MEDB2562 LED indicator light White BA9s 12 V DC 15 mA 2000 mcd 428 mlm

Description

These LED indicators replace conventional scale, wedge based or neon lamps with the advantage of high shock and vibration resistance and extremely long life. The cold white light with low, almost invisible proportion of blue is emitted from a chip.
