Signal Construct PGZ25L045 Light pipe Through-hole mounting Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Light pipe
Mounting type
Through-hole mounting
Length
5.5 mm
Type
PGZ25L045
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.22
45
9% = € 0.02
€ 0.20
75
14% = € 0.03
€ 0.19
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.22 / piece)
€ 3.30
plus VAT.
Highlights & Details
Single fiber optic cable Ø2,5 mm
Our service for you
Technical specifications
- Packaging type
Bulk
- Type
PGZ25L045
- Product type
Light pipe
- Mounting type
Through-hole mounting
- Manufacturer
Signal Construct
- Lens shape
Circular
- Factory colour
Acrylic glass (matt)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Lens size (Ø)
3 mm
- Length
5.5 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 5.5 mm
- RoHS-compliant
Yes
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435531 Signal Construct PGZ25L045 Light pipe Through-hole mounting Bulk

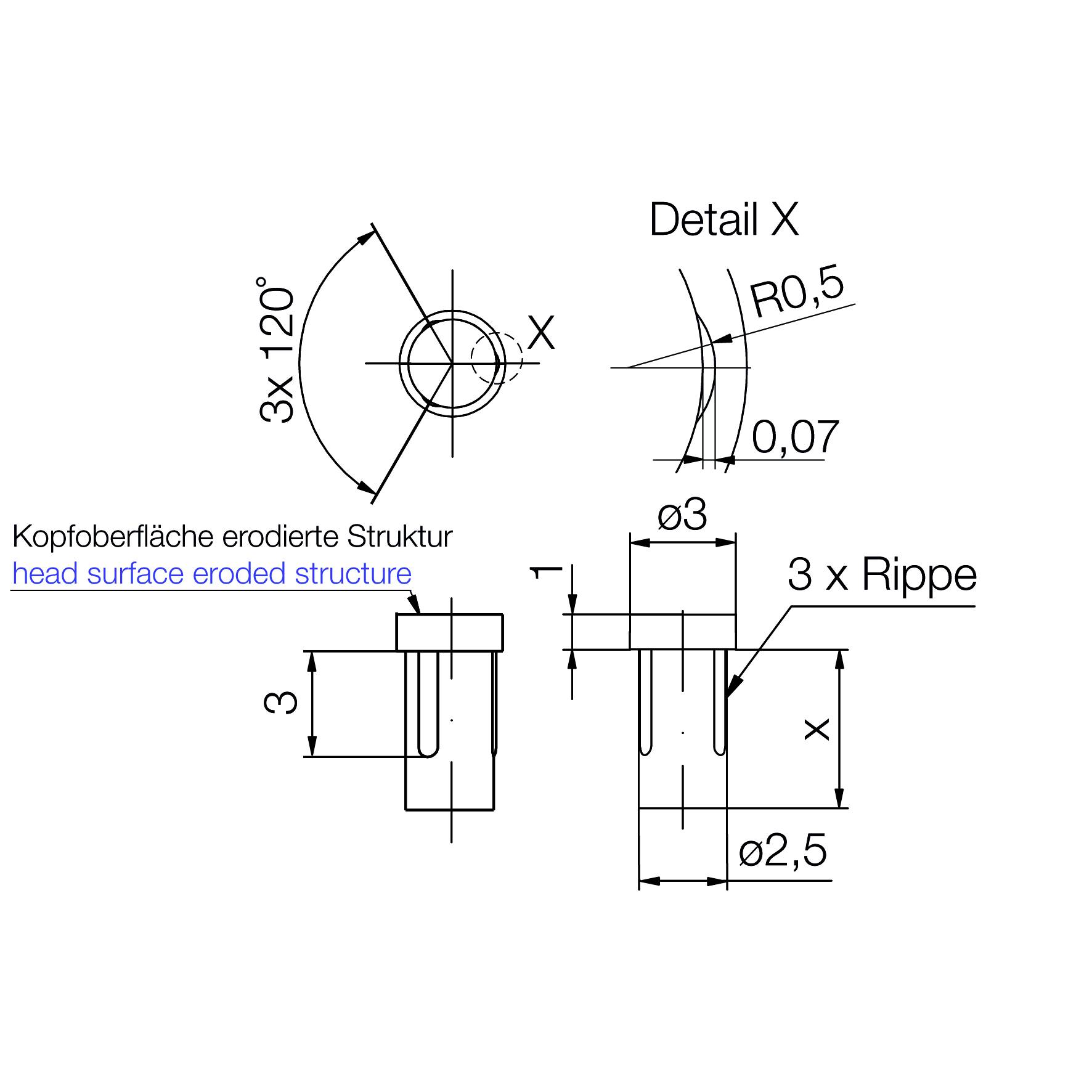

Description
Single fiber optic cable with cylindrical
Light head. Fiber optic head with eroded
Structure. Mounting hole: Ø 2.6 -0.05 mm
Dimension x: Min. 1.8 mm / max. 40.0 mm
Fiber optic material: Plexiglass (PMMA)
This text is machine translated.
Light head. Fiber optic head with eroded
Structure. Mounting hole: Ø 2.6 -0.05 mm
Dimension x: Min. 1.8 mm / max. 40.0 mm
Fiber optic material: Plexiglass (PMMA)
This text is machine translated.
