Signal Construct SLQ06L140 Light pipe Through-hole mounting Box
Packaging type
Box
Product type
Light pipe
Mounting type
Through-hole mounting
Length
15 mm
Type
SLQ06L140
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.99 / piece)
€ 1.99
incl. VAT
14-day return policy included
Highlights & Details
Light pipe
Our service for you
Technical specifications
- Packaging type
Box
- Type
SLQ06L140
- Product type
Light pipe
- Mounting type
Through-hole mounting
- Manufacturer
Signal Construct
- Lens shape
Circular
- Factory colour
Acrylic glass (matt)
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
105 °C
- Lens size (Ø)
3 mm
- Length
15 mm
- (Ø)
3 mm
- Dim
(Ø x L) 3 mm x 15 mm
- RoHS-compliant
Yes
- Moisture Sensitiviy Level (MSL)
1
Documents & Downloads
Datasheet
Datasheet 2435549 Signal Construct SLQ06L140 Light pipe Through-hole mounting Box
User & Safety Instructions
User & Safety Instructions 2435549 Signal Construct SLQ06L140 Light pipe Through-hole mounting Box
Description

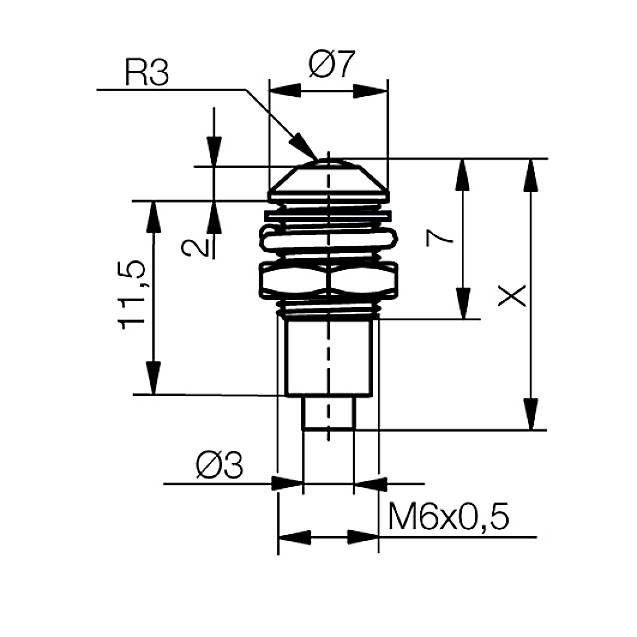

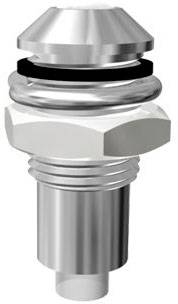

Metal housing with external reflector and
Integrated Ø3mm fiber optic cable. Casing: Metal casing bright chrome-plated
With thread M6x0.5 mm
Mounting type: Screw fixing
Tightening torque: 100 CN·m
Installation opening: Ø6+0.2 mm
Protection class according to DIN EN 60529: IP67
Length of fiber optic cable x: Min. 14mm, max. 43mm
Scope of delivery: Light conductor mounted in the housing,
Lower ring, sealing washer and
Mounting nut
This text is machine translated.
Integrated Ø3mm fiber optic cable. Casing: Metal casing bright chrome-plated
With thread M6x0.5 mm
Mounting type: Screw fixing
Tightening torque: 100 CN·m
Installation opening: Ø6+0.2 mm
Protection class according to DIN EN 60529: IP67
Length of fiber optic cable x: Min. 14mm, max. 43mm
Scope of delivery: Light conductor mounted in the housing,
Lower ring, sealing washer and
Mounting nut
This text is machine translated.
Scope of delivery
- Incl. attachment material
