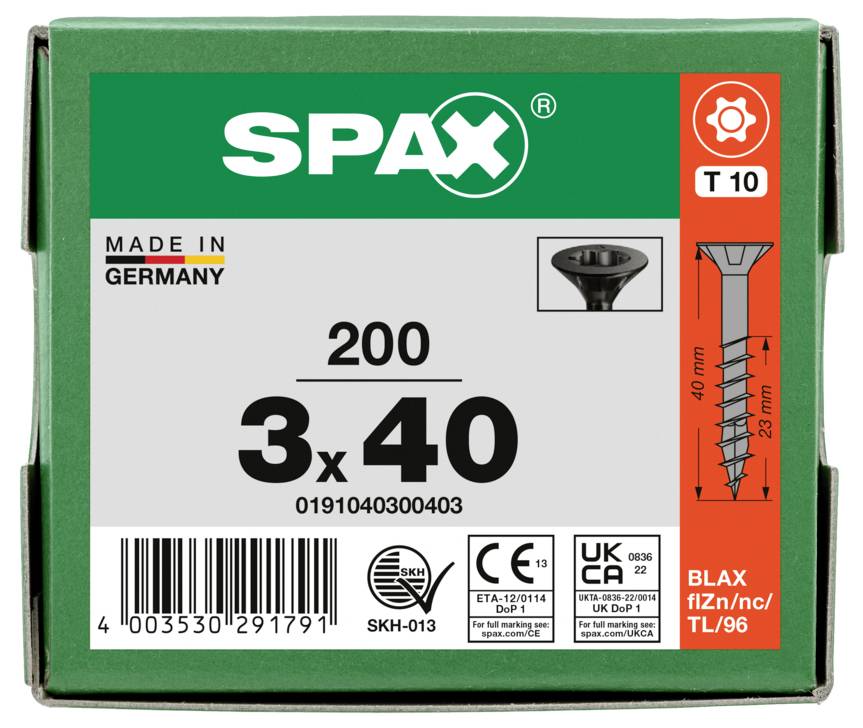

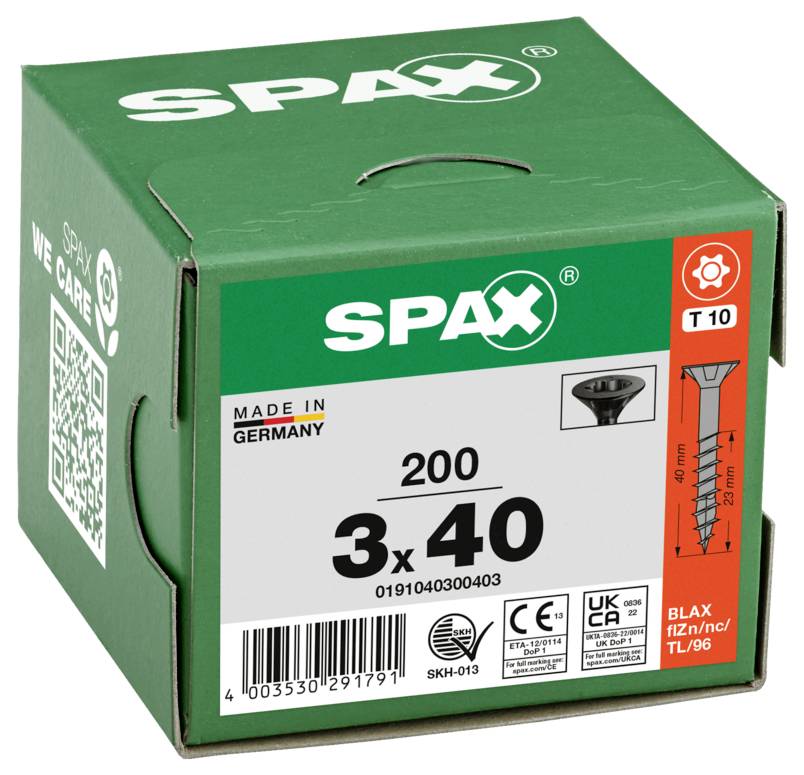

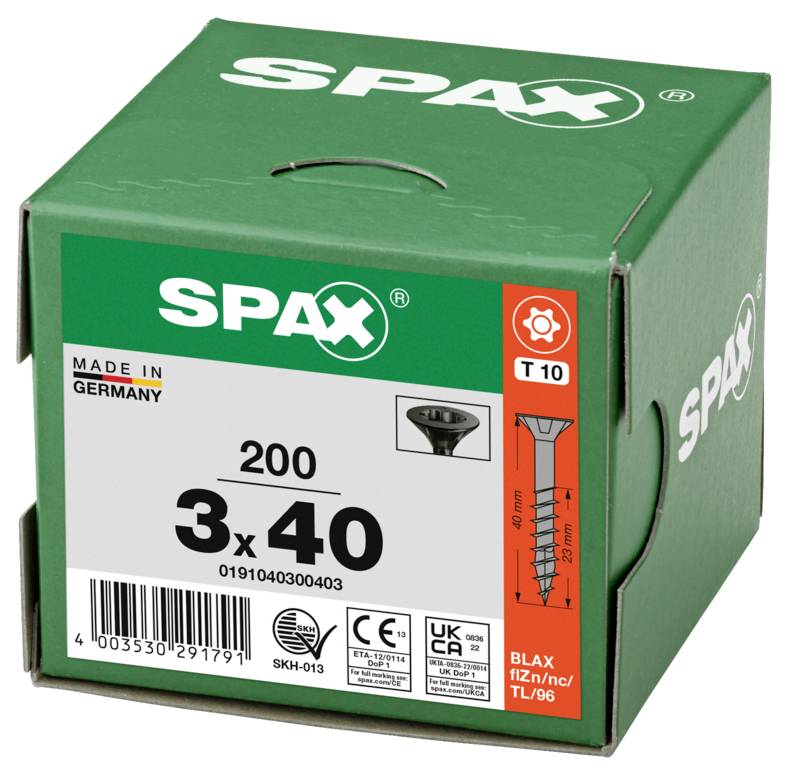

Name: SPAX 0191040300403 Countersunk screw 3 mm 40 mm T-Star Plus Steel 200 pc(s)
Brand: SPAX
SKU: 3742595
Availability: InStock

Highlights & Details

SPAX-S COUNTER SUNK BRAKE R-STAR PLUS T10 PARTIAL THREAD BLAX 200ST

Without pre-drilling (depending on wood)
Fast and safe processing with low application of force (more fittings with one battery charging)
Can be used everywhere
Reduces effectively the splice of wood material even with small edge distances

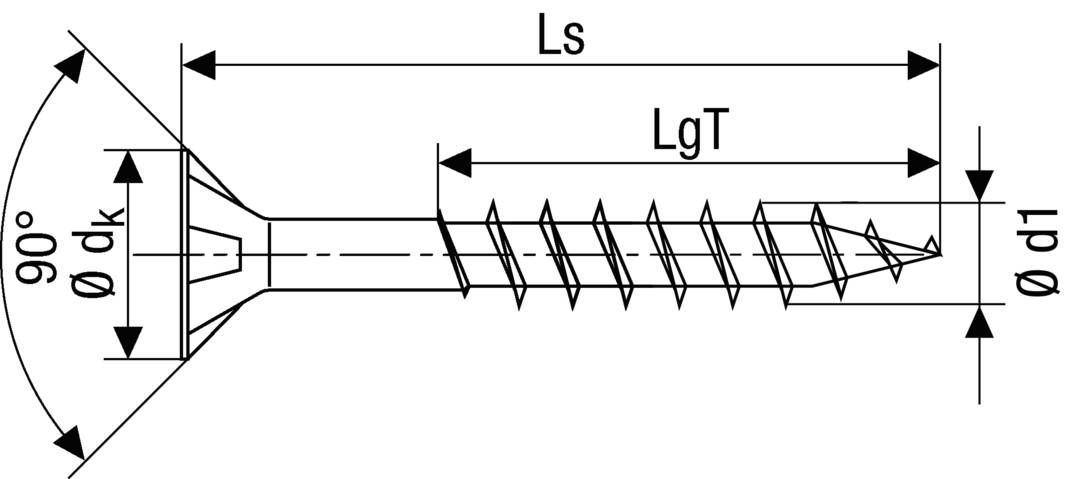

Technical specifications

Head diameter: 6 mm
Head base: Brake ribs
Head angle: 90º
Blade size T10
Thread shape: Partial thread
Thread length: 30 mm
Surface: Black BLAX
Corrosion protection code: FlZn/NC/TL/96
Tip: S-tip
MIG certificate: Yes
MPA certificate: Yes
CE 12/0114 certificate: Yes

Product type: Countersunk screw

Drive: T-Star Plus

Material: Steel

(Ø): 3 mm

Length: 40 mm

Head shape: Countersunk

Dim: (Ø x L) 3 mm x 40 mm

Content: 200 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742595 SPAX 0191040300403 Countersunk screw 3 mm 40 mm T-Star Plus Steel 200 pc(s)

Description

The SPAX-typical T-STAR plus drive is a so-called Torx socket. This shape increases the attack surface in our T-STAR plus, and the T-STAR plus bits fit optimally in the screw head. The best possible power transfer from screwdriver to screw by T-STAR plus enables a fast working, and much more efficient than with all other drives.

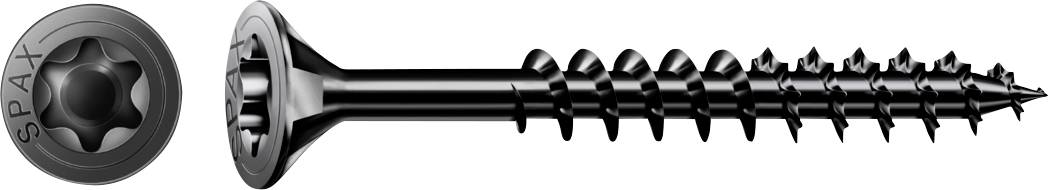

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

In contrast to the partial thread, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be deflected from screw to wood via it. Our threaded screws are used mainly for high-strength wood joints.

While the tip of conventional screws is very sharp, our SPAX with its S-tip offers the special detail again. The S-tip is characterized by a shaft profile that is shaped into the front thread flanks. Put the screw on and start the cordless screwdriver, this thread engages immediately in the wood and pulls the screw effortlessly into the wood. This enables an unbelievably fast work, without that the work piece is scratched by the slipping screw tips.

This means that you don't slip away on hard and smooth wooden surfaces; you save a lot of time with standard screw joints, because pre-drilling is completely unnecessary.
BLAX surface in a powerful metallic black shade. Applicable according to EN 1995-1-1 in utilization class 1

This text is machine translated.

Hints

The SPAX-typical T-STAR plus drive is a so-called Torx socket. This shape increases the attack surface in our T-STAR plus, and the T-STAR plus bits fit optimally in the screw head. The best possible power transfer from screwdriver to screw by T-STAR plus enables a fast working, and much more efficient than with all other drives.

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

The screws with partial thread are extremely suitable for attaching thin components such as wood material plates, boards or boards to thicker components such as square timber or beams. The short thread screws into the thick component; the thread-free shaft remains in the attachment part. This gives rise to the maximum contact pressure between the two. The thread-free part should be at least equal to the thickness of the attachment part.

The S-tip is characterized by the thread being shaped into the front edges. Place the screw and start the cordless screwdriver, this thread engages immediately in the wood and pulls the screw in without any effort. This enables a quick work, without scratching the workpiece by sliding the screw tips.
