SPAX 0191040500503 Countersunk screw 5 mm 50 mm T-Star Plus Steel 200 pc(s)
EAN:
Part number:
Item no:
Number (Package size 200 pc(s))
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 2 Set(s) available
Highlights & Details
SPAX SENKHEAD T-STAR PLUS T20 PART THREAD BLAX 200PCS
- Without pre-drilling (depending on wood)
- Fast and safe processing with low application of force (more fittings with one battery charging)
- Can be used everywhere
- Reduces effectively the splice of wood material even with small edge distances

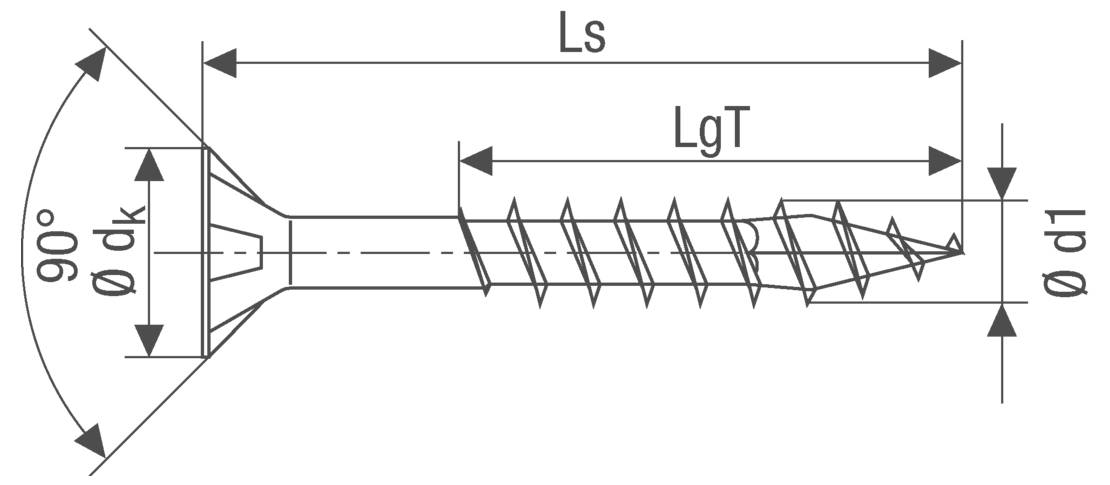

Technical specifications
- Head diameter: 9.7 mm
- Head base: MULTI head
- Head angle: 90º
- Blade size T20
- Thread shape: Partial thread
- Thread length: 32 mm
- Surface: Black BLAX
- Corrosion protection code: FlZn/NC/TL/96
- Tip: 4CUT
- MIG certificate: Yes
- MPA certificate: Yes
- CE 12/0114 certificate: Yes
- Product type
Countersunk screw
- Drive
T-Star Plus
- Material
Steel
- (Ø)
5 mm
- Length
50 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 50 mm
- Content
200 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3742568 SPAX 0191040500503 Countersunk screw 5 mm 50 mm T-Star Plus Steel 200 pc(s)
Description
The SPAX-typical T-STAR plus drive is a so-called Torx socket. This shape increases the attack surface in our T-STAR plus, and the T-STAR plus bits fit optimally in the screw head. The best possible power transfer from screwdriver to screw by T-STAR plus enables a fast working, and much more efficient than with all other drives.
The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.
In contrast to the partial thread, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be deflected from screw to wood via it. Our threaded screws are used mainly for high-strength wood joints.
The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.
BLAX surface in a powerful metallic black shade. Applicable according to EN 1995-1-1 in utilization class 1
This text is machine translated.
The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.
In contrast to the partial thread, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be deflected from screw to wood via it. Our threaded screws are used mainly for high-strength wood joints.
The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.
BLAX surface in a powerful metallic black shade. Applicable according to EN 1995-1-1 in utilization class 1
This text is machine translated.
Hints
The SPAX-typical T-STAR plus drive is a so-called Torx socket. This shape increases the attack surface in our T-STAR plus, and the T-STAR plus bits fit optimally in the screw head. The best possible power transfer from screwdriver to screw by T-STAR plus enables a fast working, and much more efficient than with all other drives.
The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.
The screws with partial thread are extremely suitable for attaching thin components such as wood material plates, boards or boards to thicker components such as square timber or beams. The short thread screws into the thick component; the thread-free shaft remains in the attachment part. This gives rise to the maximum contact pressure between the two. The thread-free part should be at least equal to the thickness of the attachment part.
The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.
