Name: SPAX 1081010400555 Countersunk screw 4 mm 55 mm Pozidriv Steel zinc galvanized 500 pc(s)
Brand: SPAX
SKU: 3742715
Price: 22.99 EUR
Availability: InStock

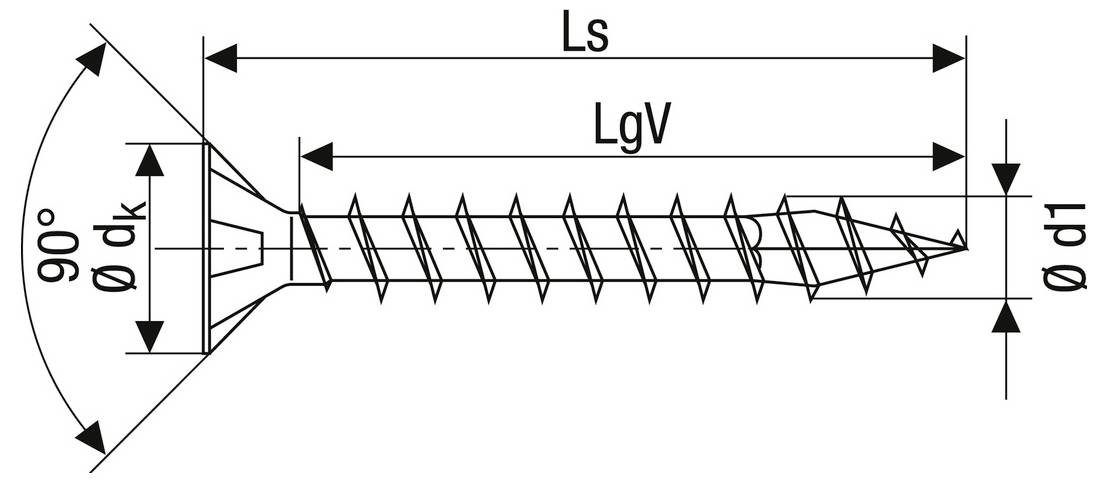

Technical diagram of a screw, showing head and tip dimensions with labeled measurements: 90° head angle, diameter dk, length Ls, thread length LgV, and tip diameter d1.

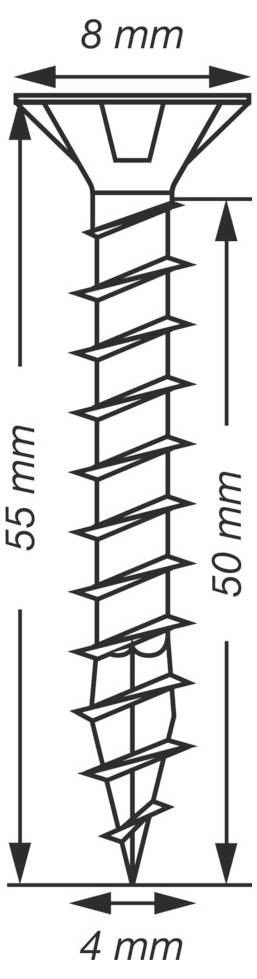

Diagram of a tapered threaded screw showing dimensions: 8 mm top width, 4 mm tip width, 55 mm overall length, and 50 mm threaded length.

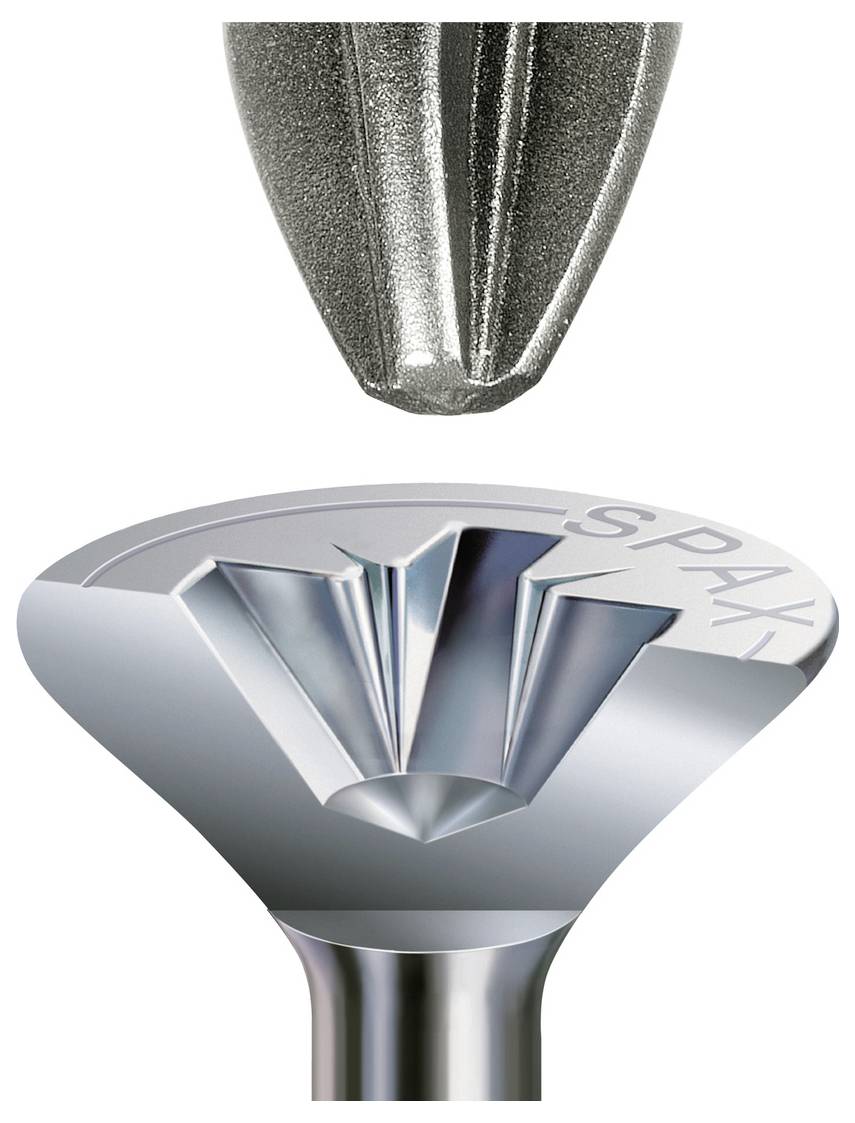

A screwdriver bit above a countersunk screw head with 'SPAX' branding, showing how the bit fits into the screw recess.

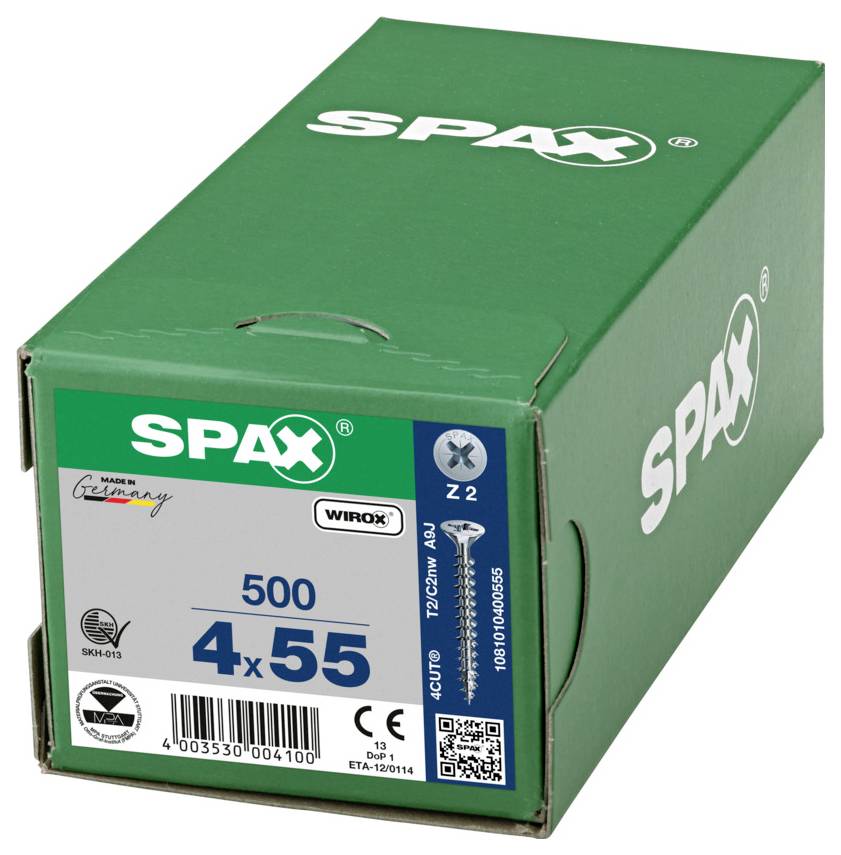

Green SPAX box of 500 screw fasteners, labeled 4 x 55, shown in product packaging.

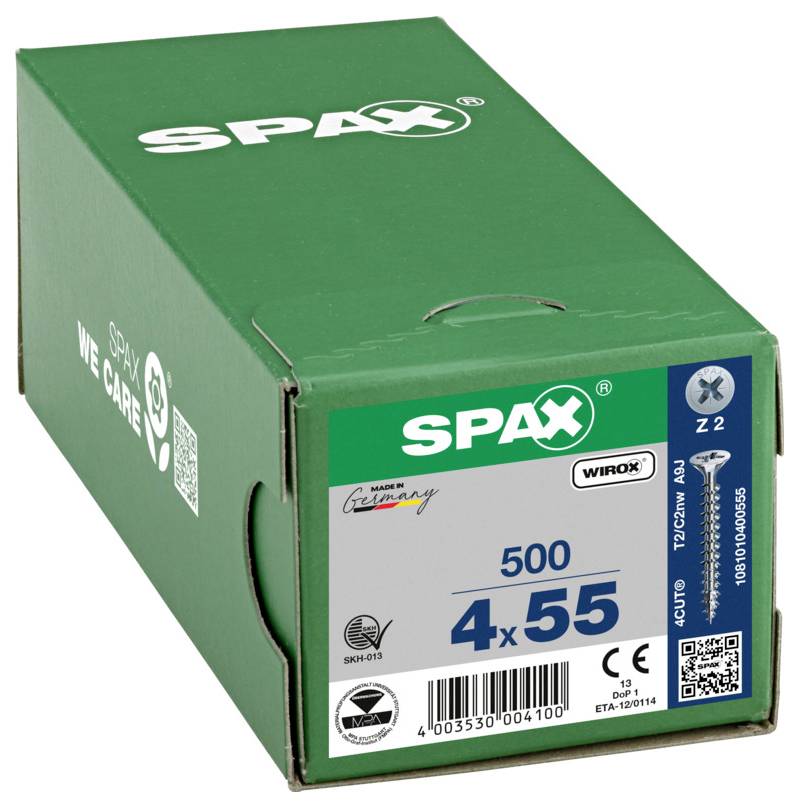

Green SPAX screw box labeled '500 4x55', with product and barcode information on the front.<br>

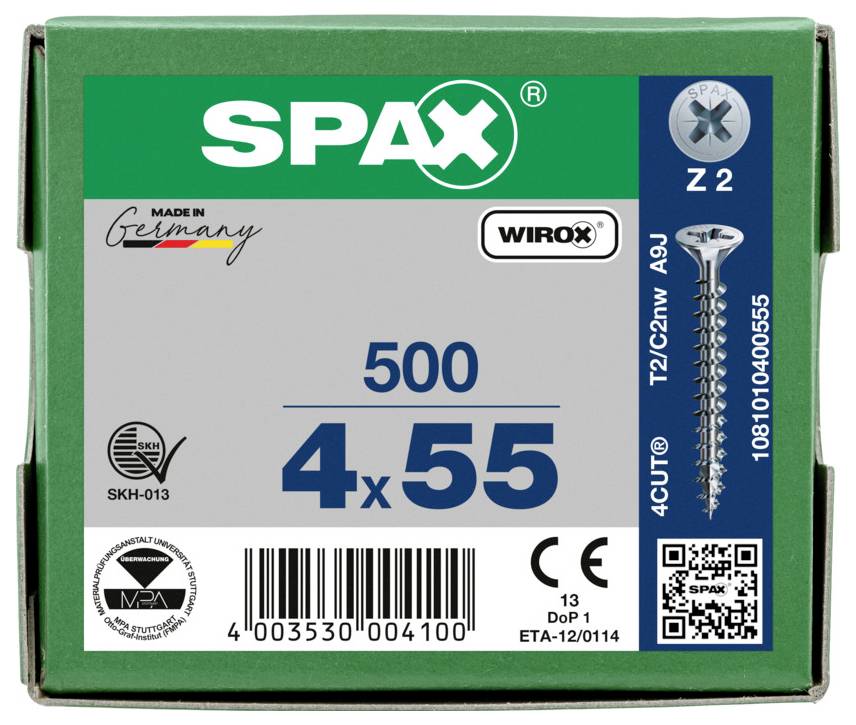

SPAX screw box labeled '4x55' and '500', with 'WIROX', 'Made in Germany', and a screw illustration on the right.

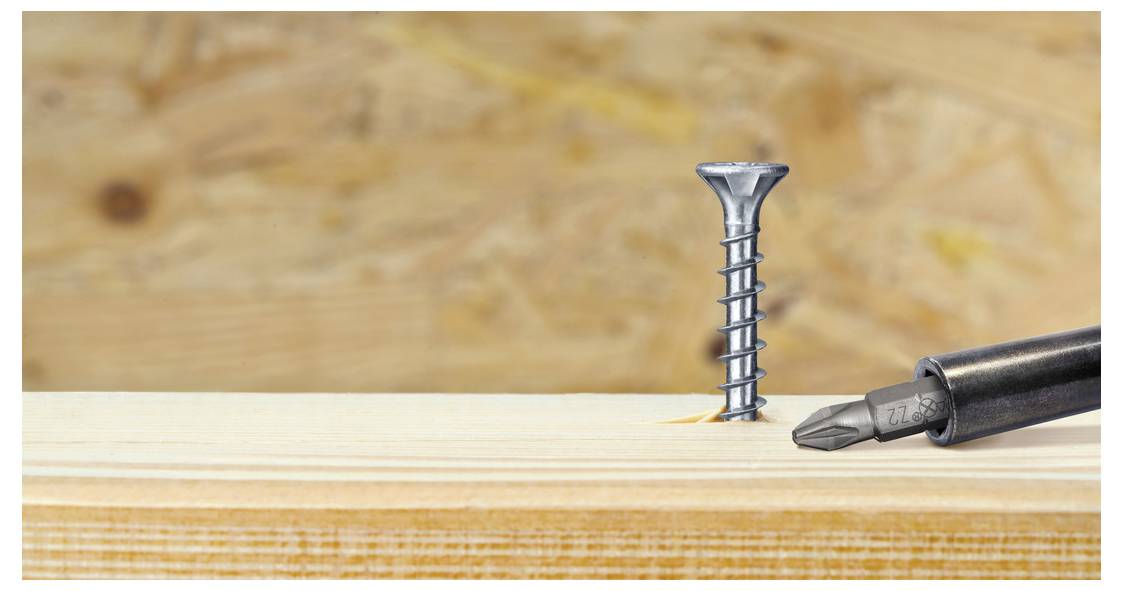

Close-up of a screw being driven into a wooden board by a screwdriver bit, showing the fastener partially inserted in the wood.

Close-up of a shiny metal cutting drill bit or milling tool with spiral flutes and sharp teeth on a white background.

1/11

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

1 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 500 pc(s))

Set(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

Only 1 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

SPAX SENKKOPF CROSS-HEAD Z2 FULL THREAD WIROX 500ST

Multifunctional applications indoors
Fast and safe processing with low application of force (more fittings with one battery charging)
Can be used everywhere
Reduces effectively the splice of wood material even with small edge distances

Technical specifications

Head diameter: 8 mm
Head base: MULTI head
Head angle: 90º
Drive: Z cross-tip
Thread form: Full thread
Thread length: 50 mm
Surface: WIROX
Anti-corrosion code A9J
Tip: 4CUT
MIG certificate: Yes
MPA certificate: Yes
Certificate SKH: Yes
Certificate CE 12/0114: Yes

Product type: Countersunk screw

Drive: Pozidriv

Material: Steel

Thread size: 4 mm

(Ø): 4 mm

Length: 55 mm

Head shape: Countersunk

Dim: (Ø x L) 4 mm x 55 mm

Content: 500 pc(s)

Material properties: zinc galvanized

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3742715 SPAX 1081010400555 Countersunk screw 4 mm 55 mm Pozidriv Steel zinc galvanized 500 pc(s)

Description

The universal screw is the absolute all-rounder in the range of SPAX. It can be screwed in almost everything – for example, completely without pre-drilling in coniferous wood like spruce and pine wood as well as in the common wooden material plates (MDF, chipboard and OSB boards). Our universal screw plays its superiority mainly in the interior fittings and furniture construction area, but also on the outside it can be used well with the appropriate corrosion protection. Due to its special thread geometry, the screw-in resistance is much lower than with conventional screws, WAS not only protects your power and nerves, but also protects the battery of the inserted screwdriver. Splining of the wood in the proximity of the edges is reliably prevented. This means you can turn more screws per battery charge, and you don't have to worry about broken wooden ends.

This text is machine translated.

Features

Multifunctional applications indoors

Hints

The Force Attack Cross Head Z is a further development of the simple cross-force attack by the company Philips SCREW COMPANY. The difference is that the four edges of the screwdriver blade do not taper toward the tip. This increases the lateral hold for the bit and reduces the cam-out effect. This is the result of conventional cross-head power attacks by rejuvenation, because the torque of the cordless screwdriver pushes the screwdriver bit upwards.

The countersunk head (or flat head) milled itself with its polygons bottom ("pockets") a recess in the wood and therefore can be recessed without additional lowering of the screw hole. The countersunk head locks flush with the surface.

In contrast to the partial thread, the full thread extends over the entire length of the screw. The more threads a screw has, the greater the tensile and compressive forces that can be deflected from screw to wood via it. Our threaded screws are used mainly for high-strength wood joints.

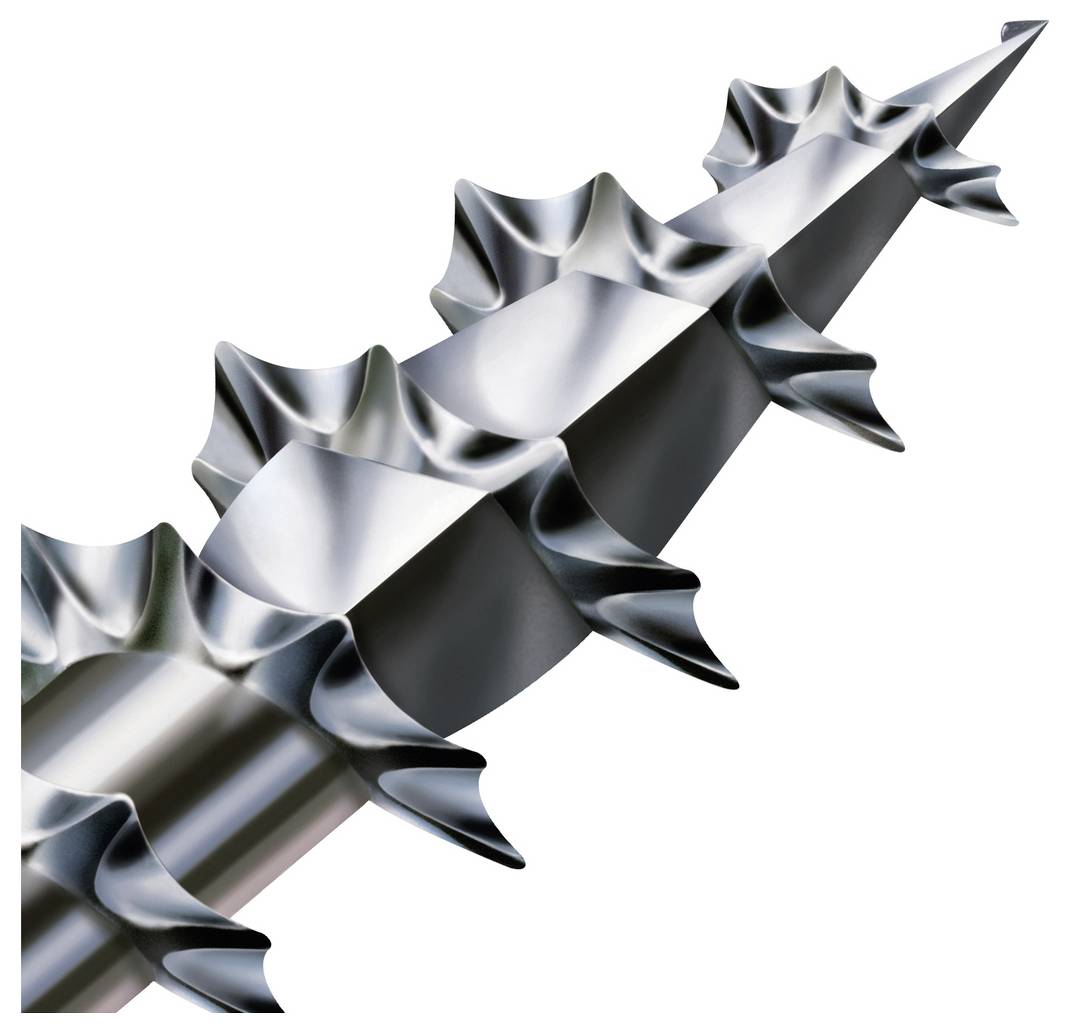

The term 4CUT stands for the square shape of the screw tip. These edges supplant the wooden fibers during insertion and creates space for the core diameter of the screw. This reduces the spread pressure exerted by the Kern in the wood and prevents the wood from springing up close to the edges. The necessary torque of the cordless screwdriver is also reduced, because the Kern of the screw does not have to "squeeze" itself into the wood.

With WIROX, SPAX has developed a coating that is far superior to zinc plating in terms of corrosion protection. With WIROX no chrome (VI) is used, the screws can be loaded just as well after years in the not directly weathered external area as well as environmentally friendly. WIROX screws are the first choice for all open buildings without direct weathering such as carports or pergoles, for direct weather stresses as with terraces we recommend our screws in the stainless steel version.
