Name: Square connector, type A, 2+PE, sensor/actuator cable VA21-230.0-5/S370 8047806 Escha Content: 1 pc(s)
Brand: Escha
SKU: 3553496
Availability: BackOrder

'Dark green extension cables with a square connector and labels, shown from side and front views. Suitable for electrical connections.'

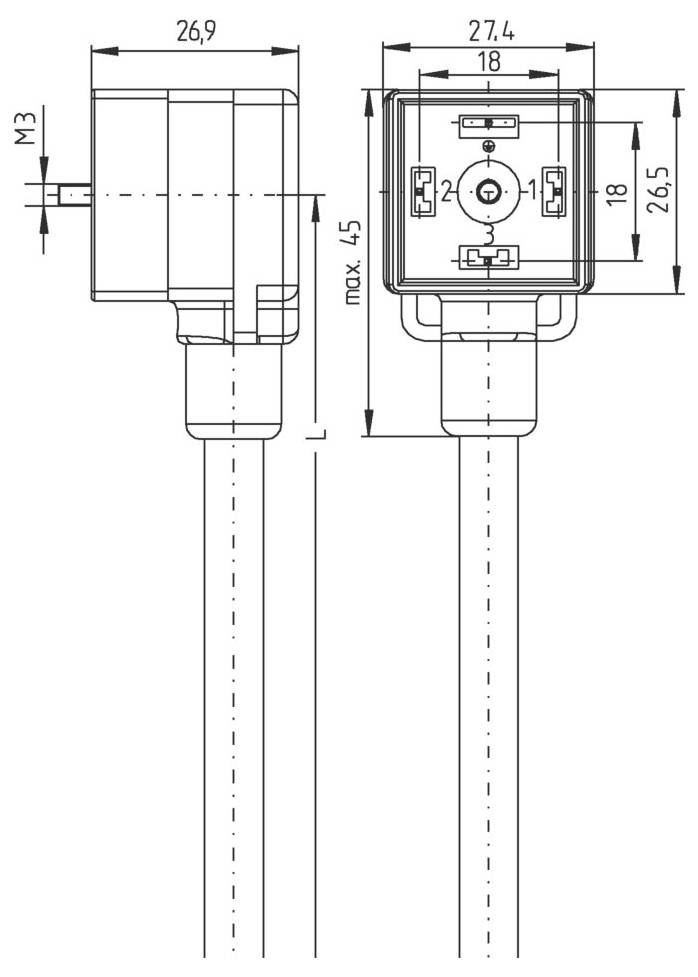

'Technical drawing of an electrical component with dimensions: 26.9mm width, 27.4mm height, and 26.5mm depth. Mounting screw M3.'

1/2

Packaging type

Piece

Product type

Square connector

Type

A standard

Connection

Socket

IP rating

IP65

IP67

IP68

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Design A
Fixing screw: Metal, CuZn, nickel-plated
Rated voltage 230VAC/DC
Insulation resistance ≥108 Ω
Material seal (socket): Plastic, TPU
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuZn, silver-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
DIN EN 175301-803 standard
Pin assignment: 1 BN 2 BU, 3 N.C., PE: GNYE
Number of pins 2+PE
Protection type (mounted): IP65, IP67, IP68
Protective circuit: None
Connector: Socket, angled, valve A
Current load capacity per pin (at 40°C): 10.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, BU, GNYE
Wire cross-section 3 x 0.75 mm²
Outer diameter of sheath 5.7 +/- 0.2 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Wire composition 42 x 0.15 mm
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: 2 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-180°/m, < 1 MIO. Cycles

Packaging type: Piece

Conductor material: PUR

Product type: Square connector

Type: A standard

Connection: Socket

: IP65
IP67
IP68

Number of pins: 2

Nominal voltage: 230 V DC/AC

Total no. of pins: 2 + PE

Manufacturer part #: 8047806

Content: 1 pc(s)

Cable Ø: 5.7 mm

Cable length: 5.0 m

Cable cross section: 0.75 mm²

max. cross section: 0.75 mm²

Standard: DIN

Connector type: Socket, right angle

Max. temperature: 90 °C

Min. temperature: -40 °C

Type: VA21-230.0-5/S370

Features: Oil-resistant
Silicone-free
Corrosion-resistant
Acid-resistant/non-caustic
Hydrolysis-resistant
Flame-retardant
Spark-proof
Ozone-resistant
UV-proof
Twistable
Suitable for drag chains
Halogen-free
Show more

Leading contact (PE): Yes

Certification: UL

Nominal current: 10.0 A

Documents & Downloads

Datasheet

Datasheet 3553496 Square connector, type A, 2+PE, sensor/actuator cable VA21-230.0-5/S370 8047806 Escha Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553496 Square connector, type A, 2+PE, sensor/actuator cable VA21-230.0-5/S370 8047806 Escha Content: 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Through its welding spark resistance, the cable is very well suited for flexible use in the field of robot technology, machine tools and chip-removing production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).

This text is machine translated.
