Stahlwille 516 13160000 Telescopic forward/reverse ratchet 1/2" 410 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.
Only 8 Piece(s) available
Highlights & Details

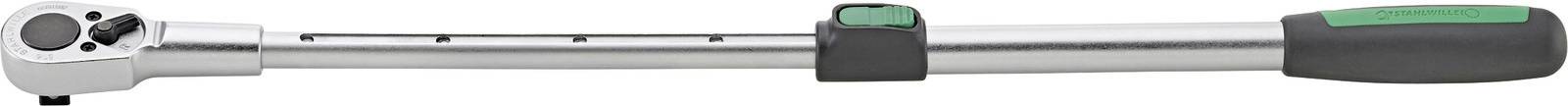

1/2" telescope ratchet 410 - 630 mm
- 1/2" square drive with ball locking, switchable, DIN 3122 / ISO 3315, Chrome Alloy Steel, chrome plated.
- Stable by maintenance-free slide bearing with a secured stopper
- Comfortable, simple and fast - even one-handed - adjustment of the lengths via a rocker switch
- Five rest levels with extension lengths: 410 mm, 465 mm, 520 mm, 575 mm, 630 mm
- 2-component grip with ergonomic bale shape for fatigue-free working, resistant to oils, fats, brake fluids and Skydrol
Technical specifications
- Product type
Telescopic forward/reverse ratchet
- Downforce
1/2"
- No. of teeth
36
- Length
410 mm
- DIN standard
DIN 3122
- Weight
1.1 kg
- Width
40 mm

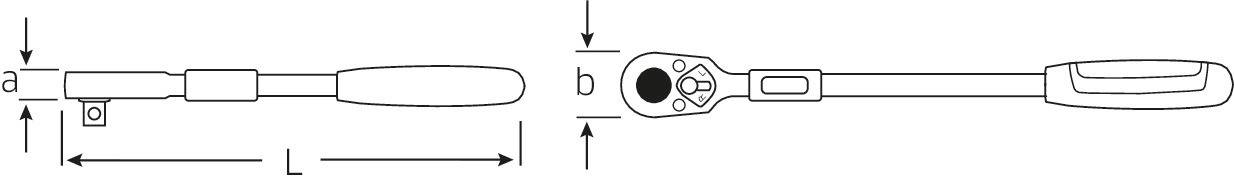

- Dim
(L x W) 410 mm x 40 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2840486 Stahlwille 516 13160000 Telescopic forward/reverse ratchet 1/2" 410 mm
User & Safety Instructions
User & Safety Instructions 2840486 Stahlwille 516 13160000 Telescopic forward/reverse ratchet 1/2" 410 mm
Description
Adjustable length.
The length can be adjusted comfortably and one-handed over the rocker switch in 55 mm raster (410 mm, 465 mm, 520 mm, 575 mm and 630 mm).
DIN-approved Quality.
The robust ratchet drive possesses 36 teeth and transfers DIN-tested (DIN 3122/ISO 3315) high tightening forces to 512 N·m
Long-lasting excerpt
The move runs quickly and safely with maintenance-free plain bearing and stop protection and is particularly durable.
This text is machine translated.
The length can be adjusted comfortably and one-handed over the rocker switch in 55 mm raster (410 mm, 465 mm, 520 mm, 575 mm and 630 mm).
DIN-approved Quality.
The robust ratchet drive possesses 36 teeth and transfers DIN-tested (DIN 3122/ISO 3315) high tightening forces to 512 N·m
Long-lasting excerpt
The move runs quickly and safely with maintenance-free plain bearing and stop protection and is particularly durable.
This text is machine translated.
Features
- 1/2" male square drive
- switchable
- 36 teeth
- Simply reaching the torque with extension of the shaft
- 5 stop settings with extension lengths: 410, 465, 520, 575, 630 mm
- Convenient, simple and quick adjustment of the length via a rocker switch
- Compact size in the pushed together state
- Ideal for mobile tool storage
- Sturdy by maintenance-free plain bearing, secured in stop
- With 2-component hand grip
- An alternative to the wheel rim
- Chrome alloy steel, chrome plated
- DIN 3122/ISO 3315
Scope of delivery
- 1/2" telescope ratchet 516
