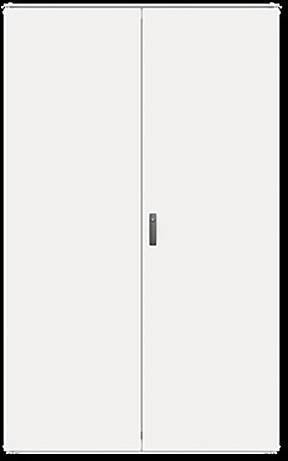

Image similar
Striebel & John R514T3 Switchboard cabinet 1364 x 2213 x 325 Steel 1 pc(s)
Product type
Switchboard cabinet
Material
Steel
Width
1364 mm
Height
2213 mm
Content
1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 2213 mm
- Width 1364 mm
- Depth: 325 mm
- With mounting plate: No.
- Installation depth: 213 mm
- Mounting option: Yes
- Mounting type: Floor mount
- Colour: grey
- RAL number: 7035
- Type of cover: Without
- Lid design: With cut-out
- Type of door: Double
- Transparent cover / door: No.
- With lock: Yes
- Internal depth 321 mm
- Number of modules: 840
- Number of rows: 14
- Width in division units: 60
- Number of openings for flange plates: 5
- Number of cable entries: 49
- Surface protection: Powder-coated
- Suitable for outside use: No.
- Protection class: I
- Impact strength: IK10
- Function retention: Without
- Material of housing: Steel
- Product type
Switchboard cabinet
- Features
with lock
- Material
Steel
- Width
1364 mm
- Height
2213 mm
- Content
1 pc(s)
- Type
R514T3
- Dim
(W x H x D) 1364 x 2213 x 325 mm
- Manufacturer part #
2CPX047209R9999
- Depth
325 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3548416 Striebel & John R514T3 Switchboard cabinet 1364 x 2213 x 325 Steel 1 pc(s)
Description
Series switch cabinet, free cabinet, TriLine series, empty cabinet, type of installation: Surface-mounted, for indoors, with door, protection class I (earthed), applicable standards: DIN EN 61439-1, VDE 0660-600-1, DIN EN 61439-2, VDE 0660-600-2, DIN EN 61439-3, VDE 0660-600-3.
This text is machine translated.
This text is machine translated.
