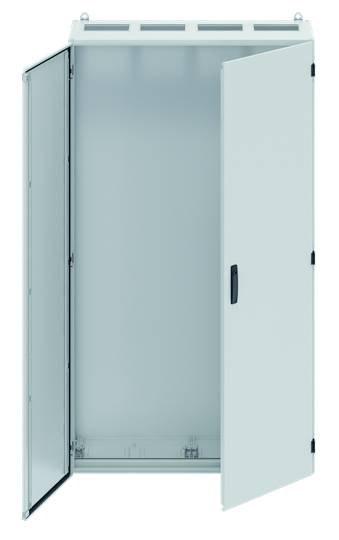

Striebel & John TX412S Free-standing switchboard cabinet 400 x 1050 x 1850 x 400 Steel plate, Plastic Grey 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Free-standing switchboard cabinet
Material
Steel plate
Plastic
Width
1050 mm
Height
1850 mm
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
Free-standing switchboard cabinet
- Features
Double sided ward
- Material
Steel plate
Plastic
- Factory colour
Grey
- Length
400 mm
- Width
1050 mm
- Height
1850 mm
- Content
1 pc(s)
- Type
TX412S
- Dim
(L x W x H) 400 x 1050 x 1850 mm
- Manufacturer part #
2CPX010979R9999
- Depth
400 mm
Surface mounted (plaster)
II
Grey
1050 mm
1850 mm
400 mm
7035
FALSE
Powder coating
349 mm
12
None
208
397 mm
Steel plate/plastic
None
48
FALSE
IK08
576
Double
IP55
FALSE
TRUE
FALSE
1 mm
1.5 mm
With notch
4
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3112409 Striebel & John TX412S Free-standing switchboard cabinet 400 x 1050 x 1850 x 400 Steel plate, Plastic Grey 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3112409 Striebel & John TX412S Free-standing switchboard cabinet 400 x 1050 x 1850 x 400 Steel plate, Plastic Grey 1 pc(s) Piece
Description
Cabinet unit, Twinline series, empty cabinet, installation type: Surface-mounted, partly countersunk, for indoors, with door, protection class II (insulated), protection class IP55, applicable standards: DIN EN 61439-1, VDE 0660-600-1, DIN EN 61439-2, VDE 0660-600-2, DIN EN 61439-3, VDE 0660-600-3, IK code 08, powder coated, in RAL 7035, steel housing, Two-wing door, steel door, with standard lock double bit 3 mm, door opening angle 180 degrees, rear wall made of steel sheet, cable entry cut out above flange opening, embossed at the bottom via flange opening, open on the side for stacking without annoying bars, dimensions in mm (H x W x D): 1850 x 1050 x 400, snap-in unit 12 RE, height 8, field width 4, place units 576, prepared for removal with CombiLine modules on WR mounting frame or mounting plate
This text is machine translated.
This text is machine translated.
