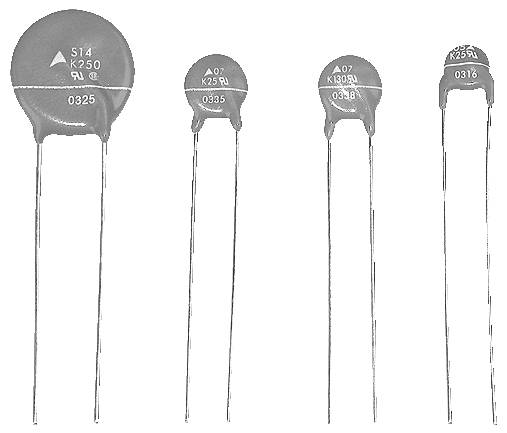

TDK B72214S0231K101 Metal oxide varistor 360 V 1 pc(s) Bulk
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.41436
50
9% = € 0.04
€ 0.37661
100
13% = € 0.05
€ 0.36153
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.41436 / piece)
€ 0.41
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 15.5 mm
- Diameter, connection wire 0.8 mm
- Solder-ability 245 °C / 3 s.
- Resistance value_1: 0
- Power loss, max. 0.6 W.
- Max. OPERATING VOLTAGE (DC) 300 V DC
- Max. OPERATING VOLTAGE (AC) 230 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 360 V
- Surge current 4,500 A.
- Energy absorption 60 J
- Capacity, type: 530 pF
- Response time, max. 25 ns
- Insulation resistance 10 MOhm
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Packaging type
Bulk
- Type
circular
- Vv
360 V
- Material
Epoxide
- Content
1 pc(s)
- Manufacturer part #
B72214S0231K101
- Dim
(Ø x H) 15.5 mm x 43.5 mm
- (Ø)
15.5 mm
- Height
43.5 mm
- Width
4.7 mm
- Type
B72214S0231K101
- CS
7.5 mm
- Capacitance
530 pF
- Peak current I(pp)
4.500 A
- RoHS-compliant
Yes
- Product type
Metal oxide varistor
Documents & Downloads
Datasheet
Datasheet 3523623 TDK B72214S0231K101 Metal oxide varistor 360 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523623 TDK B72214S0231K101 Metal oxide varistor 360 V 1 pc(s) Bulk
Description
Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
