TDK B72220S0251K101 Metal oxide varistor 390 V 1 pc(s) Bulk
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.67973
10
8% = € 0.05
€ 0.62502
25
11% = € 0.08
€ 0.60313
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.67973 / piece)
€ 0.68
plus VAT.
Technical specifications
- ESD Packaging: No ESD
- Series B722
- Delivery form: Loose
- Diameter, Resistance element 21.5 mm
- Diameter, connection wire 1 mm
- Solder-ability 245 °C / 3 s.
- Resistance value_1: 0
- Power loss, max. 1 W.
- Max. OPERATING VOLTAGE (DC) 320 V DC
- Max. OPERATING VOLTAGE (AC) 250 V AC
- Testing voltage 2,500 V
- Varistor voltage (@1mA) 390 V
- Surge current 8,000 A.
- Energy absorption 140 J
- Capacity, type: 940 pF
- Response time, max. 25 ns
- Insulation resistance 10 MOhm
- APPROVALS UL,CSA,VDE,IEC,CQC,UL 94 V0
- Packaging type
Bulk
- Vv
390 V
- Material
Epoxide
- Content
1 pc(s)
- Manufacturer part #
B72220S0251K101
- Dim
(Ø x H) 21.5 mm x 50.5 mm
- (Ø)
21.5 mm
- Height
50.5 mm
- Width
5.3 mm
- Type
B72220S0251K101
- CS
10 mm
- Capacitance
940 pF
- Peak current I(pp)
8.000 A
- RoHS-compliant
Yes
- Product type
Metal oxide varistor
Documents & Downloads
Datasheet
Datasheet 3523632 TDK B72220S0251K101 Metal oxide varistor 390 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3523632 TDK B72220S0251K101 Metal oxide varistor 390 V 1 pc(s) Bulk
Description

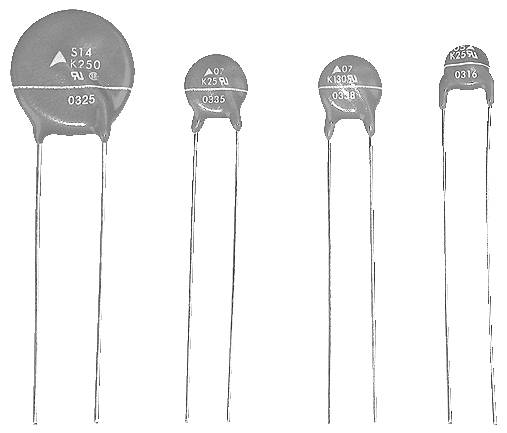

Metal oxide varistors
This text is machine translated.
This text is machine translated.
Features
- • Round varistor elements, wired
- • UL94V-0 epoxy coating
- • No load reduction up to 85°C.
