Buy TDK-Lambda DPP100-24 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

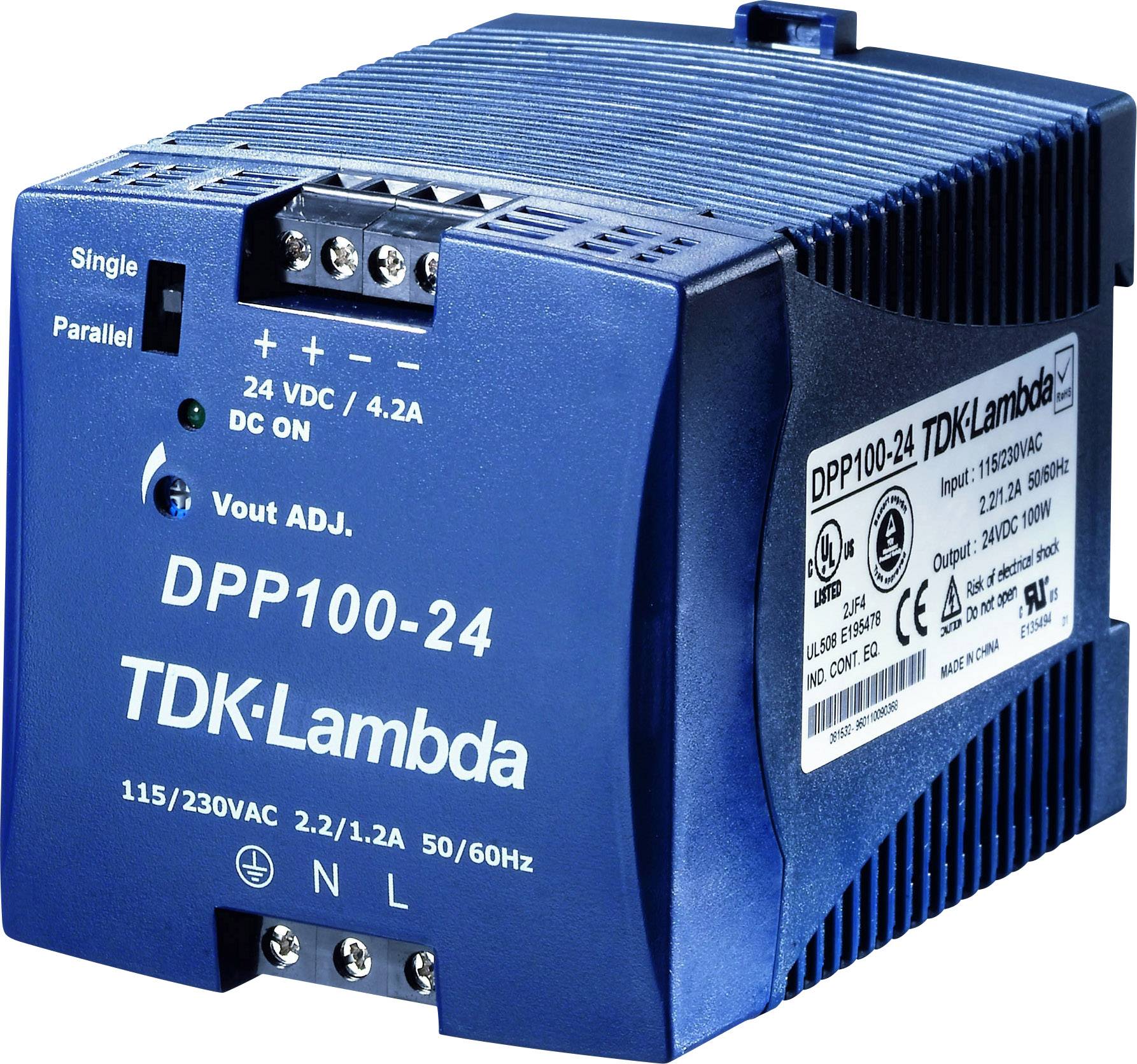

A blue power supply unit from TDK-Lambda, model DPP100-24, with specifications for current and voltage: 24 VDC, 4.2A.

Several blue TDK-Lambda DC power supplies in a row, with various model numbers such as DPP25-5 and DPP100-24, mounted on a rail.

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 92.43 / piece)

€ 92.43

plus VAT.

Report legal concerns

Highlights & Details

DIN / DIN rail power supply DPP100-24.

Robust plastic housing
28.5 V DC/ 4.2 A
100 W Power
Input1 -phase
Input voltage range 85 - 264 Vac / 90 - 375 V DC
Temperature range -25 - 71 °C
Connection (components): Screw terminal

Technical specifications

Type: DPP100-24

Nominal input voltage: 115 V/AC
230 V/AC
90 - 375 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 176 V AC

Output voltage: 24 V DC

Input voltage: 85 - 264 Vac / 90 - 375 V DC

Input voltage (max.): 264 V AC

Max. output current: 4.2 A

Output current (max.) - rounded: 4.2 A

: 100 W

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 73 x 75 x 97 mm

Weight: 390 g

Output voltage (max.): 28.5 V DC

Output voltage (min.): 22.5 V DC

Manufacturer part #: DPP100-24

Content: 1 pc(s)

MTBF: 239000 h

Width: 73 mm

Height: 75 mm

Max. temperature: 71 °C

Min. temperature: -25 °C

Type: DPP100-24

Depth: 97 mm

: 100 W

Connections: Screw terminals

Output current (details): 4.2 A

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

TDK-Lambda DPP100-24 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

Item no:510851

This article

100 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC90 - 375 V/DC

4.2 A

176 V AC

TDK-Lambda DPP480-48-1 Rail mounted PSU (DIN) 48 V DC 10 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:1395540

480 W

575 V AC

48 V DC

400 V/AC480 - 820 V/DC

10 A

340 V AC

TDK-Lambda DPP15-24 Rail mounted PSU (DIN) 24 V DC 0.63 A 15 W No. of outputs:1 x Content 1 pc(s)

Item no:510844

15 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC90 - 375 V/DC

630 mA

85 V AC

TDK-Lambda DPP25-5 Rail mounted PSU (DIN) 5 V DC 5 A 25 W No. of outputs:1 x Content 1 pc(s)

Item no:510845

25 W

Screw terminal

264 V AC

5 V DC

115 V/AC230 V/AC90 - 375 V/DC

5 A

85 V AC

TDK-Lambda DPP30-12 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:510846

30 W

Screw terminal

264 V AC

12 V DC

115 V/AC230 V/AC90 - 375 V/DC

2.5 A

85 V AC

TDK-Lambda DPP30-24 Rail mounted PSU (DIN) 24 V DC 1.3 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:510847

30 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC90 - 375 V/DC

1.3 A

85 V AC

TDK-Lambda DPP50-15 Rail mounted PSU (DIN) 15 V DC 3.4 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:510848

50 W

Screw terminal

264 V AC

15 V DC

115 V/AC230 V/AC90 - 375 V/DC

3.4 A

85 V AC

TDK-Lambda DPP50-24 Rail mounted PSU (DIN) 24 V DC 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:510849

50 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC90 - 375 V/DC

2.1 A

85 V AC

TDK-Lambda DPP50-48 Rail mounted PSU (DIN) 48 V DC 1.05 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:510850

50 W

Screw terminal

264 V AC

48 V DC

115 V/AC230 V/AC90 - 375 V/DC

1.05 A

85 V AC

TDK-Lambda DPP480-24-1 Rail mounted PSU (DIN) 24 V DC 20 A 480 W No. of outputs:1 x Content 1 pc(s)

Item no:510891

480 W

Screw terminal

264 V AC

24 V DC

115 V/AC230 V/AC120 - 375 V/DC

20 A

90 V AC

Documents & Downloads

Datasheet

Datasheet 510851 TDK-Lambda DPP100-24 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 510851 TDK-Lambda DPP100-24 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 510851 TDK-Lambda DPP100-24 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

Warranty Terms

Warranty Terms 510851 TDK-Lambda DPP100-24 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

Description

The DPP-rails-power supply is a very compact current supply in sturdy plastic casing. The power supply is adjustable world wide, without switchover through wide range access. The output voltage is set via Poti. Two parallel power supplies can be switched for higher performance.

This text is machine translated.

Features

Overcurrent protection
Overvoltage protection
Adjustable Output Voltage ±20 %
Safety and EMV as per CE, UL/cUL60950, UL508, NEC Class 2 (no DPP100), EN55011-B, EN55022-B
Isolation Input/Output (SELV) 3000 V/AC
Residual ripple<50 mV
Efficiency level 87 - 93%.

Hints

This product is a component power supply considered apparatus and is only to be installed by qualified persons within other equipment and must not be operated as a stand alone product.

This product is for sale to business to business customers and can be obtained via distribution channels.

It is not intended for sale to end users.
