TE Connectivity Super seal set AMP-Superseal 1.5mm Series Contact spacing: 6 mm 30S001 1 Set
EAN:
Part number:
Item no:
Datasheet (PDF)
14 Set(s)
Do your needs go beyond this?
Sales and shipping:
Number
Total (€ 38.65 / piece)
€
Highlights & Details

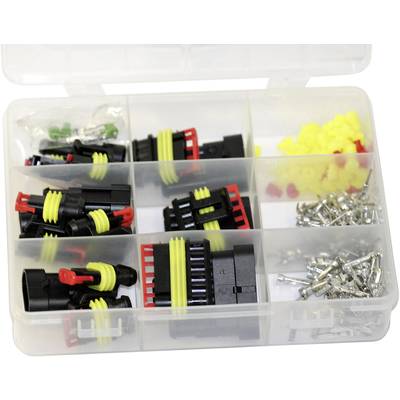

AMP-SUPERSEAL starter box, 158-piece
- Content: 1 Set
- No. of rows: 1
Technical specifications
- Connector type
Plug, straight
Socket, straight
- Connector system
automotive
- Series
AMP-Superseal 1.5mm Series
- CS
6 mm
- Pin shape
Rectangular
- Nominal current
14 A
- Nominal current - rounded value
14 A
- Content
1 Set
- Factory colour
Black
- Industrial packaging
No
IP67
- Connection
Type C CEE 7/16 plug 1.5 mm
- Manufacturer part #
30S001
- Type
x
- Nominal voltage
24 V DC
- Insulation material
Polyamide
- No. of rows
1
- Case material
Polyamide
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Product type
Super seal set
Documents & Downloads
Datasheet
Datasheet 1521999 TE Connectivity Super seal set AMP-Superseal 1.5mm Series Contact spacing: 6 mm 30S001 1 Set
Datasheet 1521999 TE Connectivity Super seal set AMP-Superseal 1.5mm Series Contact spacing: 6 mm 30S001 1 Set
User & Safety Instructions
User & Safety Instructions 1521999 TE Connectivity Super seal set AMP-Superseal 1.5mm Series Contact spacing: 6 mm 30S001 1 Set
Description
These plug connectors are overall used where its not only about water tightness, but also about resistance to ozone, salts, petrol, diesel, brake fluid and engine oils. All plug connectors fulfil the standards of IEC 529 and DIN 40050 IP 67.
Application area: Power supplies, Sensors, general Industrial applications.
Application area: Power supplies, Sensors, general Industrial applications.
Scope of delivery
- 2x socket housing 1-pin (747882)
- 3x socket housing 2-pin (749814)
- 2x socket housing 3-pin (749802)
- 1x socket housing 4-pin (745125)
- 1x socket housing 5-pin (745137)
- 1x socket housing 6-pin (747906)
- 2x pin housing 1-pin (747894)
- 3x pin casing 2-pin (749790)
- 2x pin housing 3-pin (749778)
- 1x pin casing 4-pin (745149)
- 1x pin casing 5-pin (747894)
- 1x pin casing 6-pin (747918)
- 2x socket contact 0.3 - 0.5 mm² (749742)
- 30x socket contact 1 - 1.5 mm2 (749730)
- 2x pin contact 0.3 - 0.5 mm² (749718)
- 30 x pin contact 1 - 1.5 mm² (749706)
- 60x single wire sealing yellow (749682)
- 4x single wire sealing green (749694)
- 10x blind plug red (749670)
- This text is machine translated.
