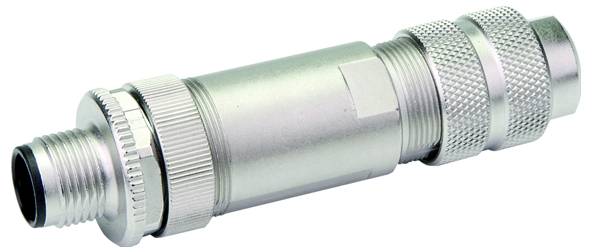

Telegärtner 100007500 Sensor/actuator connector M12 x 1 No. of pins (RJ): 4 1 pc(s) Piece

The M12x1 connector series can be used to implement applications such as safety and video surveillance (CCTV), passenger information systems (PIS), production facilities and production monitoring with high-resolution cameras. Users can connect X-ray machines for baggage checking at airports encapsulated and tamper-proof at the very fast interface with the M12 round connector. The M12 is also a real asset in rail vehicles: The increasing amount of data can be distributed reliably and transferred to all systems and devices connected in the train, such as cameras or switches. As a 4-pin, D-coded compact connector in CAT.5, the M12 from Telegärtner can transfer data rates up to 100 Mbit/s in the PROFINET environment.

Specifications:
D-coding according to plug connector standard IEC 61076-2-101,
Fast-Ethernet according to IEEE 802.3,
Suitable for 4PPoE according to IEEE 802.3bt,
CAT.5 according to ISO/IEC 11801; DIN EN 50173-1,
Multiple shield contact,
Connection without special tools,
Suitable for different cable types,
IP67protection class

Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant

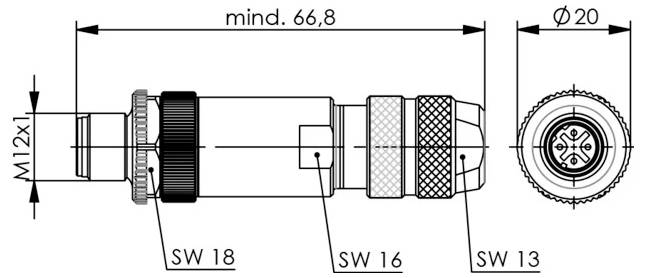

Design: 4-pin, D-coded, straight, plug set, 360° shielding, Screw terminal connection, field-assembly possible
Name: STX M12x1 KS D-cod. CAT 5
Short name: CP4D180-3-5SCT700FA000
